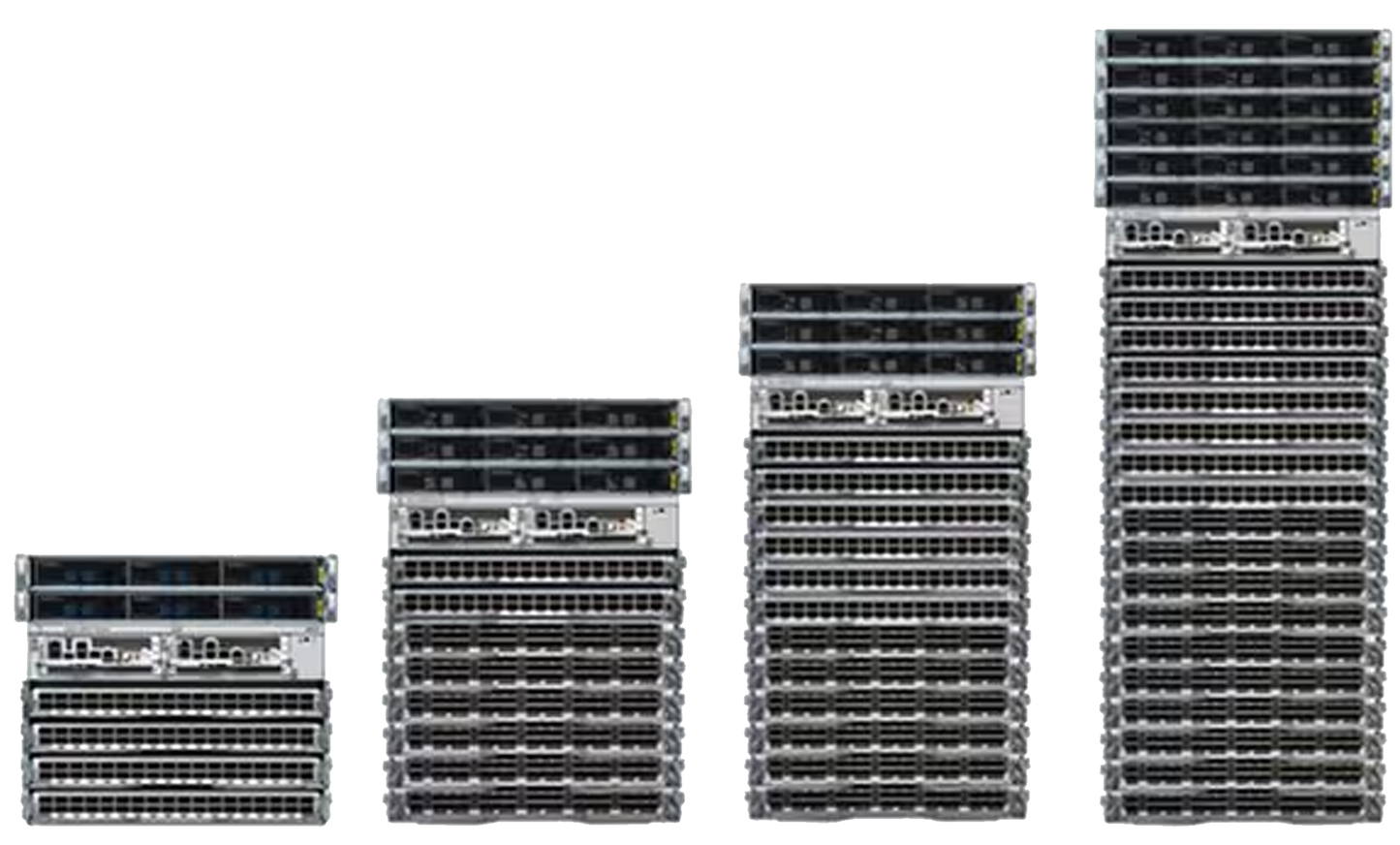

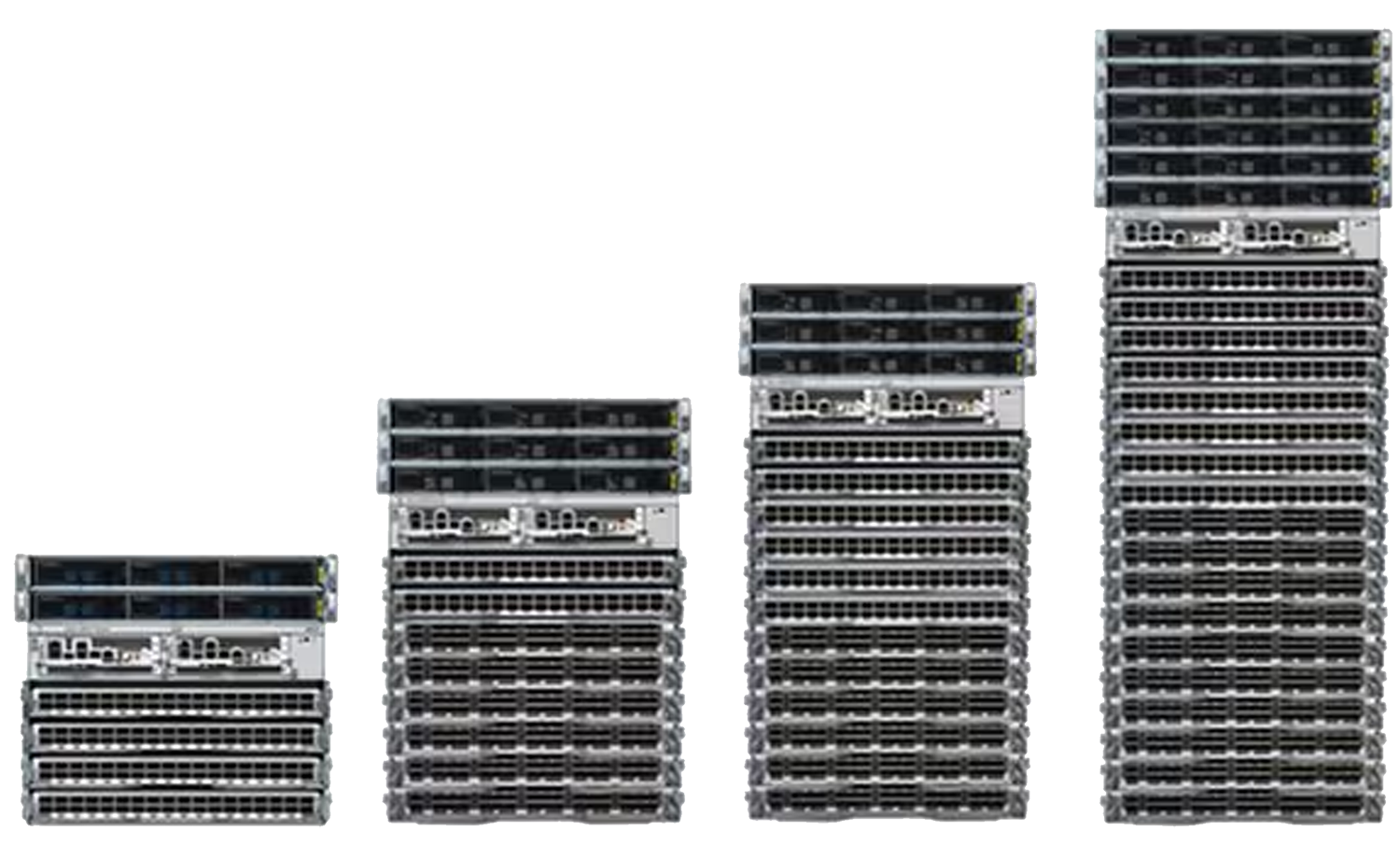

Cisco 8812-SYS | 8800 12-Slot Modular Router Chassis, 21 RU, 172.8T
SKU:8812-SYS
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco 8800 12-slot system bundle is a modular router chassis from the Cisco 8000 Series, built on Cisco Silicon One and running IOS XR. It suits WAN, core and data centre deployments, including service provider, enterprise and public sector networks that need high-density 100G and 400G routing.
The 21 RU chassis provides 12 line card slots, 2 route processor slots in a 1+1 arrangement, 8 fabric module slots and 4 fan module slots. System throughput reaches 172.8 Tbps with 400G line cards, or 345.6 Tbps with 800G line cards. Typical system power is 16.3 kW with 400G line cards. The chassis offers up to 12 power supply slots, accepting HVAC and HVDC modules as well as DC supplies at a nominal -48 V. Software is licensed through Cisco Smart Licensing, which requires a Smart Account.
The 8812 supports 8800-RP route processors, 8812-FC fabric cards and 8812-FAN or 8812-FAN-V2 fan trays, with Q100 and Q200 line cards. The V2 fan tray is required for P200 800G line cards. Route processor, fabric, power and cooling components are all hot swappable and redundant.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Powered by Cisco Silicon One
- Runs Cisco IOS XR with graceful route processor failover
- Full hardware redundancy for cooling, power, route processors and switch fabric
- All components are hot swappable
- Orthogonal design connects line cards directly to fabric modules
- Hardware-anchored root of trust with remote attestation
- Fan control driven by thermal telemetry to reduce power consumption
- Interoperates with different generations of route processors, fabric cards and line cards in the same chassis
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Line card slots: 12
- Route processor slots: 2 (1+1 redundancy)
- Fabric module slots: 8
- Fan module slots: 4
- Power supply slots (max): 12
- Rack units: 21
- Dimensions (HxWxD): 93.3 x 44.3 x 90.0 cm (36.75 x 17.45 x 35.43 in)
- Weight (chassis only): 96 kg (212 lb)
- Weight (full system): 404 kg (891 lb)
- Max throughput with 400G line cards: 172.8 Tbps
- Max throughput with 800G line cards: 345.6 Tbps
- Typical system power with 400G line cards: 16.3 kW
- Airflow: front-to-rear
- Compatible route processor: 8800-RP
- Compatible fabric card: 8812-FC (14.4T per line card slot, N+1 redundancy)
- Compatible line cards: Q100, Q200
- Fan trays: 8812-FAN, 8812-FAN-V2
- HVAC/HVDC input: 180-305 VAC, 192-400 VDC
- DC input: nominal -48 V at 100 A (tolerance -40 to -75 VDC)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Operating humidity: 5% to 95%
- Altitude: 0 to 3000 m
- Safety: AS/NZS 62368-1, UL 62368-1, EN 62368-1, IEC 62368-1
- EMC emissions: FCC 47CFR15 Class A, AS/NZS CISPR 32 Class A, EN55032 Class A
FAQs
Q: What licensing does the 8812-SYS use?
A: Software is licensed through Cisco Smart Licensing, which requires a Smart Account on Cisco License Central.
Q: What power input does the chassis accept?
A: HVAC and HVDC modules accept 180-305 VAC and 192-400 VDC. DC supplies accept a nominal -48 V at 100 A, and can be configured for 48 V at 60 A. The chassis has up to 12 power supply slots.
Q: Which route processor, fabric cards and fan trays work with the 8812?
A: It supports the 8800-RP route processor, 8812-FC fabric cards, and the 8812-FAN or 8812-FAN-V2 fan trays. The V2 fan tray is required for P200 800G line cards.
Q: Which line cards can be installed?
A: The 8812 supports Q100 and Q200 line cards, including 36x 100G/40G and 36x 400G models.
Q: What mounting and cable management accessories are available?
A: Accessories for the 8812 include the 8812-KIT (power shelf bezel, cosmetic door kit and filter), the 8812-CBLMFMT cable management kit and the 8812-RMBRKT rear mounting brackets.
