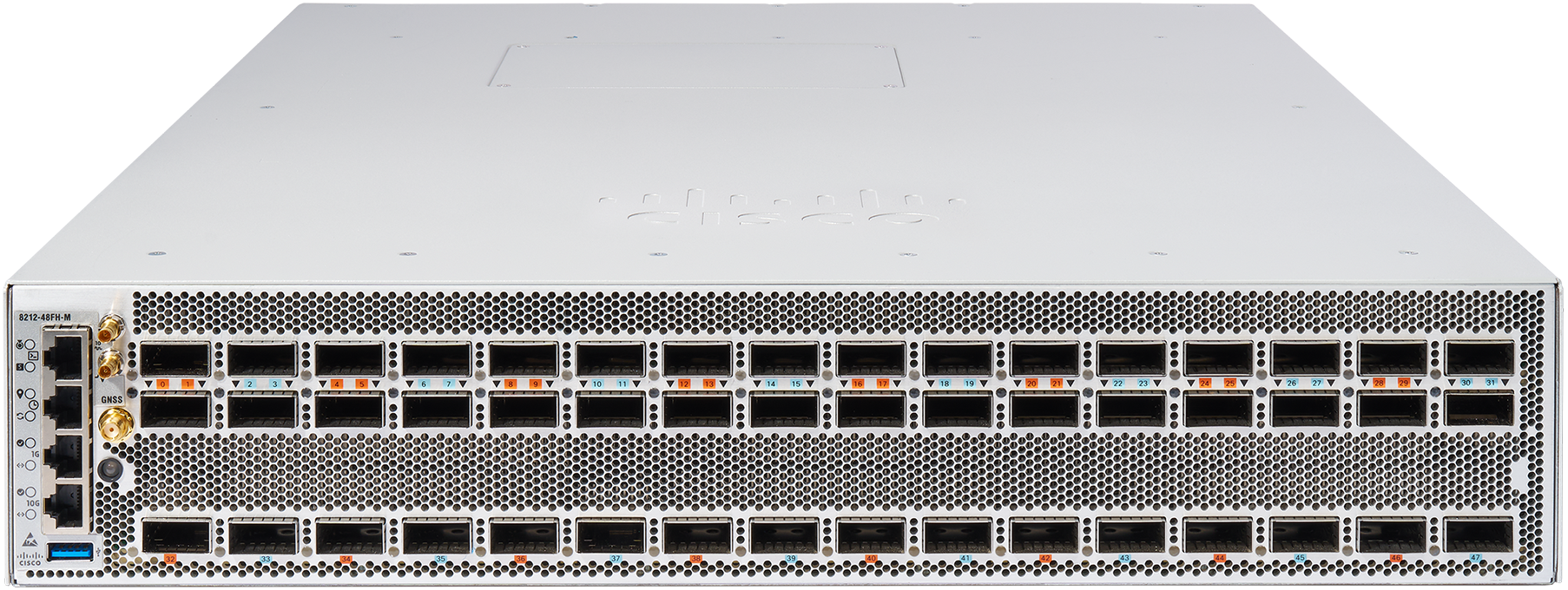

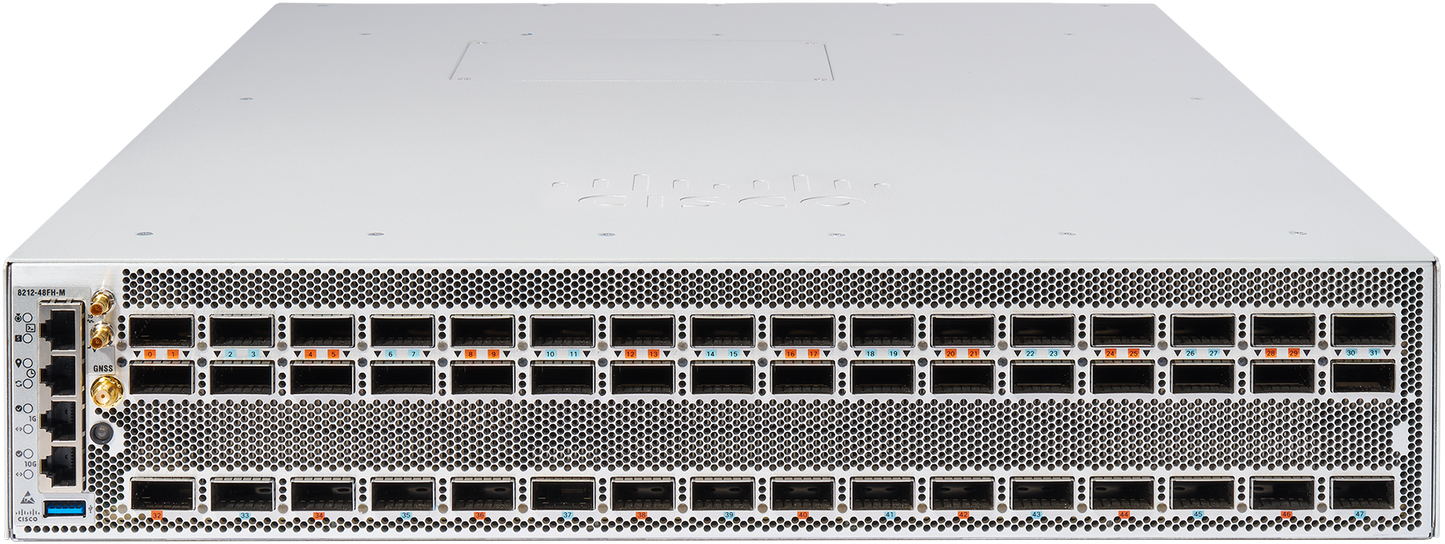

Cisco 8212-48FH-M | 8200 48x400G QSFP56-DD Router, 19.2 Tbps, MACsec
SKU:8212-48FH-M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco 8212-48FH-M is a fixed 2RU router from the Cisco 8200 Series, built on Cisco Silicon One with deep buffers (HBM). It is aimed at AI data-centre interconnect, provider core and internet peering, where high-bandwidth, security-sensitive 400G and 800G aggregation is needed.
This variant provides 48 QSFP56-DD 400GbE ports, or 24 QSFP-DD 800G ports, with 19.2 Tbps of system bandwidth and MACsec encryption on all ports. Port rates can be set to 800G, 400G, 100G, 40G, 25G or 10G with breakout support. An Intel 6-core x86 CPU with 64 GB of DRAM and a 128 GB SSD drives the control plane. Redundancy comes from 1+1 AC or DC power supplies and N+1 fans, and PTP timing delivers Class C performance. It is a non-PoE system.
The router accepts QSFP+, QSFP28, QSFP56-DD, QSFP-DD800 and OSFP-800 optics, and supports 400G DCO optics for Routed Optical Network designs. It runs Cisco IOS XR or SONiC, and IOS XR operation requires licences ordered with the system.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Cisco Silicon One processor with deep-buffer (HBM) architecture for DCI and AI workloads
- Flexible port rate configuration from 10G to 800G with breakout support
- Routed Optical Network (RON) ready with support for 400G DCO optics
- Segment Routing (SR, SRv6) and EVPN support
- Runs Cisco IOS XR or SONiC
- Model-driven programmability with NETCONF, gRPC and OpenConfig
- Redundant 1+1 AC or DC power supplies and N+1 fans
- PTP Class C timing for precise synchronisation
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Bandwidth: 19.2 Tbps
- Height: 2 RU
- Ports: 48 QSFP56-DD 400GbE or 24 QSFP-DD 800G
- Security: MACsec on all ports
- CPU / memory: Intel 6-core x86 CPU, 64 GB DRAM, 128 GB SSD
- Management / I/O: RS-232 console, 10G control plane expansion, 1G management, 1x USB 2.0, GBP (ToD, 10 MHz, 1PPS), 1588, BITs (sync)
- Port rate flexibility: 800G, 400G, 100G, 40G, 25G, 10G
- Breakout support: 2x 400G, 8x 100G, 4x 100G, 2x 100G, 4x 25G, 4x 10G
- Timing: PTP with Class C performance
- Power supplies / fans: 2 power supplies, 4 fans, optional air filter
- Redundancy: 1+1 AC or DC power supplies, N+1 fans
- PoE: Non-PoE
- Dimensions (H x W x D): 8.77 x 43.9 x 59.9 cm (3.45 x 17.3 x 23.6 in)
- Weight: 22.8 kg (50.25 lb)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Non-operating temperature: -40 to 70 C (-40 to 158 F)
- Humidity: 5% to 95% (non-condensing)
- Altitude: 0 to 3000 m (0 to 9842 ft)
- Safety: AS/NZS 62368.1, UL/EN/IEC 62368-1, UL 60950-1, CSA-C22.2 No. 60950-1, GB 4943-1
- Regulatory: CE Marking (2014/30/EU, 2014/35/EU), RoHS 6 compliant with exceptions
FAQs
Q: Does this router need a software licence?
A: Yes. Cisco IOS XR requires a software licence, Right-to-Use (RTU) licences and a Software Innovation Access (SIA) subscription ordered with the system. IOS XR uses the Flexible Consumption Model, which needs Cisco Smart Licensing registration and usage reporting.
Q: What optics does it work with?
A: It accepts QSFP+, QSFP28, QSFP56-DD, QSFP-DD800 and OSFP-800 modules, as well as 400G DCO optics for Routed Optical Network designs.
Q: How is power and cooling provided?
A: It uses two power supplies in a 1+1 redundant arrangement, with AC and DC options, plus four fans in an N+1 arrangement. It is a non-PoE system.
Q: Which operating systems can it run?
A: It runs Cisco IOS XR or SONiC, the open-source network operating system.
Q: What is this variant best suited to?
A: The 8212-48FH-M suits AI data-centre interconnect, provider core and internet peering. Its deep HBM buffers and MACsec on all ports suit high-bandwidth, security-sensitive aggregation.
