Cisco 8212-48FH-DC-MT | 8200 48-Port 400G QSFP56-DD Router, MACsec, DC
SKU:8212-48FH-DC-MT
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

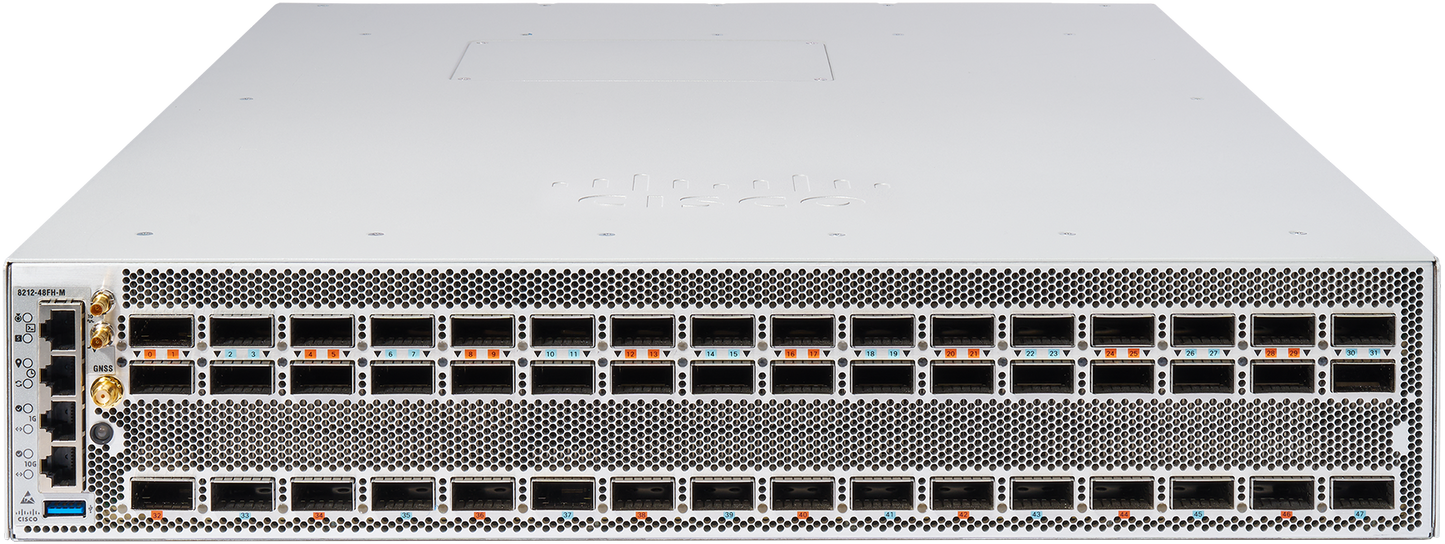

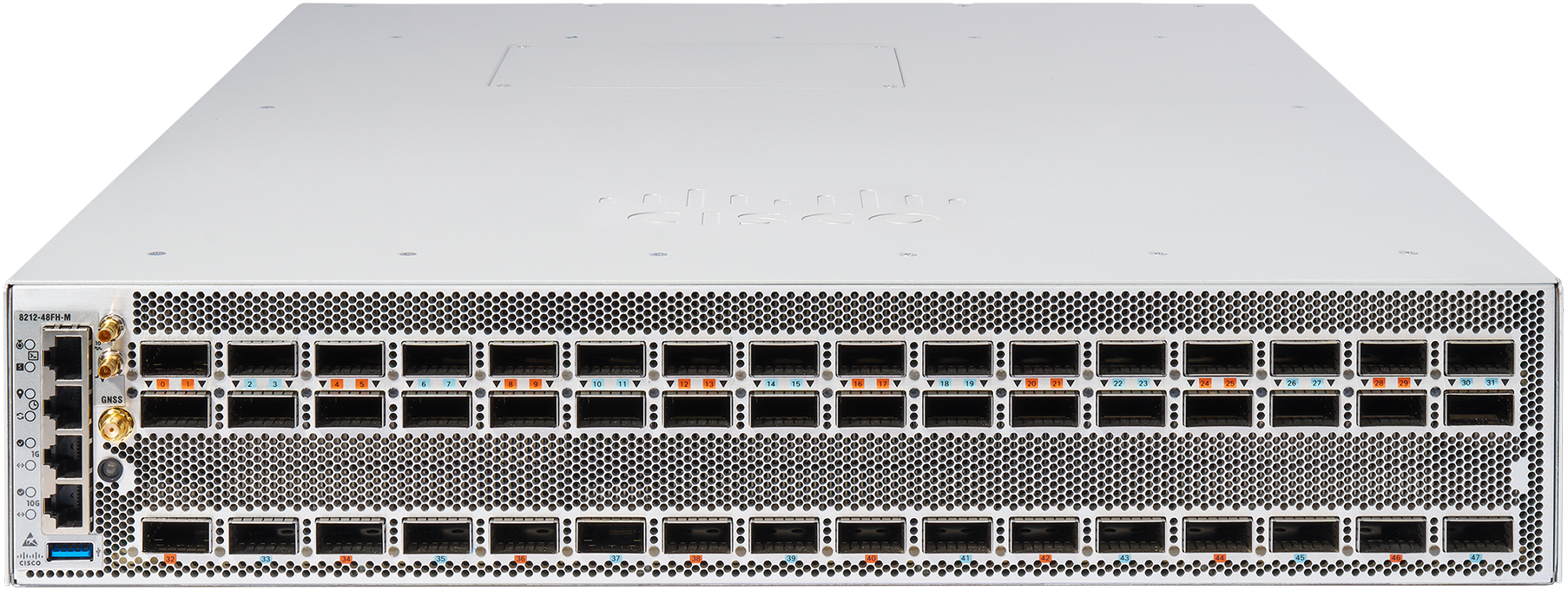

The Cisco 8212 is a fixed 2RU router from the Cisco 8200 Series, built on Cisco Silicon One. It is aimed at service provider and large-scale network deployments, including routing, aggregation, core, data centre interconnect and spine roles where dense 400G with line-rate MACsec encryption is required.
This DC-powered variant provides 19.2 Tbps of system bandwidth across 48 QSFP56-DD 400GbE ports, with MACsec on all ports. The system uses 1+1 redundant DC power supplies and N+1 redundant fans, and is driven by an Intel 6-core x86 CPU with 64 GB DRAM and a 128 GB SSD. Port rates from 10G through to 800G are supported, with breakout options such as 4x 100G and 4x 25G, and PTP timing with Class C performance is built in.
Pluggable optics supported include QSFP+, QSFP28, QSFP56-DD, QSFP-DD800 and OSFP-800, and the platform is ready for 400G DCO optics as part of a Routed Optical Network design. It runs Cisco IOS XR or a third-party network operating system.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Flexible port rate configuration from 10G up to 800G with breakout support
- Routed Optical Network (RON) ready with support for 400G DCO optics
- Runs Cisco IOS XR or a third-party network operating system
- Segment Routing (SR, SRv6) and EVPN support
- Automation for onboarding, service provisioning and monitoring
- Line-rate MACsec encryption on all ports
- N+1 redundant fans and 1+1 redundant DC power supplies
- Cisco Secure Boot and IOS XR runtime integrity measurement
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- System bandwidth: 19.2 Tbps
- Form factor: 2 RU fixed system
- Ports: 48 x QSFP56-DD 400GbE (platform also supports 24 x QSFP-DD 800G)
- Security: MACsec on all ports
- Power: DC power supplies, 1+1 redundant
- Fans: 4 fans, N+1 redundant
- CPU and memory: Intel 6-core x86 CPU, 64 GB DRAM, 128 GB SSD
- Timing: PTP with Class C performance
- Port rates: 800G, 400G, 100G, 40G, 25G, 10G
- Breakout support: 2x 400G, 8x 100G, 4x 100G, 2x 100G, 4x 25G, 4x 10G
- Management and I/O: RS-232 console, 10G control plane expansion, 1G management, 1x USB 2.0, GBP (ToD, 10 MHz, 1PPS), 1588, BITS
- Dimensions (H x W x D): 3.45 x 17.3 x 23.6 in. (8.77 x 43.9 x 59.9 cm)
- Weight: 50.25 lb (22.8 kg)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Non-operating temperature: -40 to 70 C (-40 to 158 F)
- Humidity: 5% to 95% (non-condensing)
- Altitude: 0 to 3000 m (0 to 9842 ft)
- Safety: AS/NZS 62368.1, UL/CSA/EN/IEC 62368-1, UL/CSA 60950-1, GB 4943-1
- RoHS: RoHS 6 compliant with exceptions for leaded BGA balls and lead press-fit connectors
FAQs
Q: Does this router need a software licence?
A: Yes. The 8200 Series uses Right-to-Use (RTU) licences and a Software Innovation Access (SIA) subscription, and IOS XR follows the Flexible Consumption Model, which requires Cisco Licensing registration and usage reporting.
Q: Which optics does it work with?
A: It accepts QSFP+, QSFP28, QSFP56-DD, QSFP-DD800 and OSFP-800 pluggable optics, and supports 400G DCO optics for Routed Optical Network designs.
Q: Can the 400G ports be broken out to lower speeds?
A: Yes. Breakout options include 2x 400G, 8x 100G, 4x 100G, 2x 100G, 4x 25G and 4x 10G, depending on the port and optic used.
Q: How is this DC variant different from the AC model?
A: This SKU is the DC-powered version of the 8212-48FH-M system. It uses 1+1 redundant DC power supplies, while the 48x400G ports, 2RU chassis and MACsec on all ports are the same.
Q: Which operating system does it run?
A: It runs Cisco IOS XR, or a third-party network operating system if your design calls for one.
