Cisco 8212-48FH-AC-MT | 8200 2RU Router, 48x 400G QSFP56-DD, MACsec, AC
SKU:8212-48FH-AC-MT
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

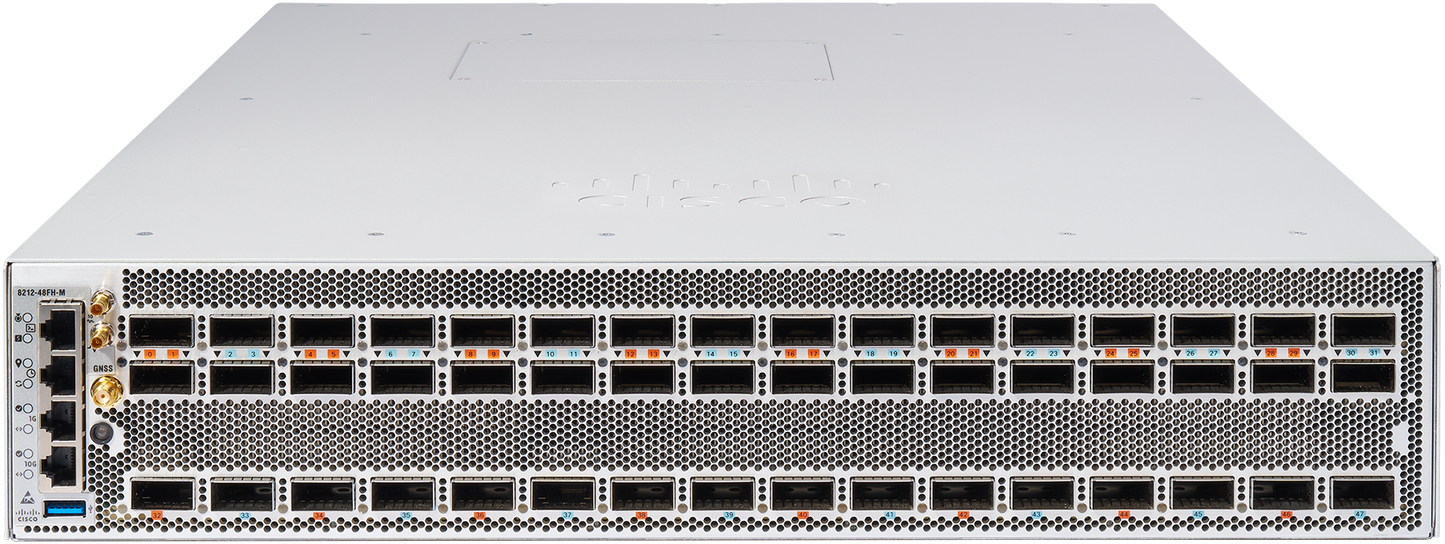

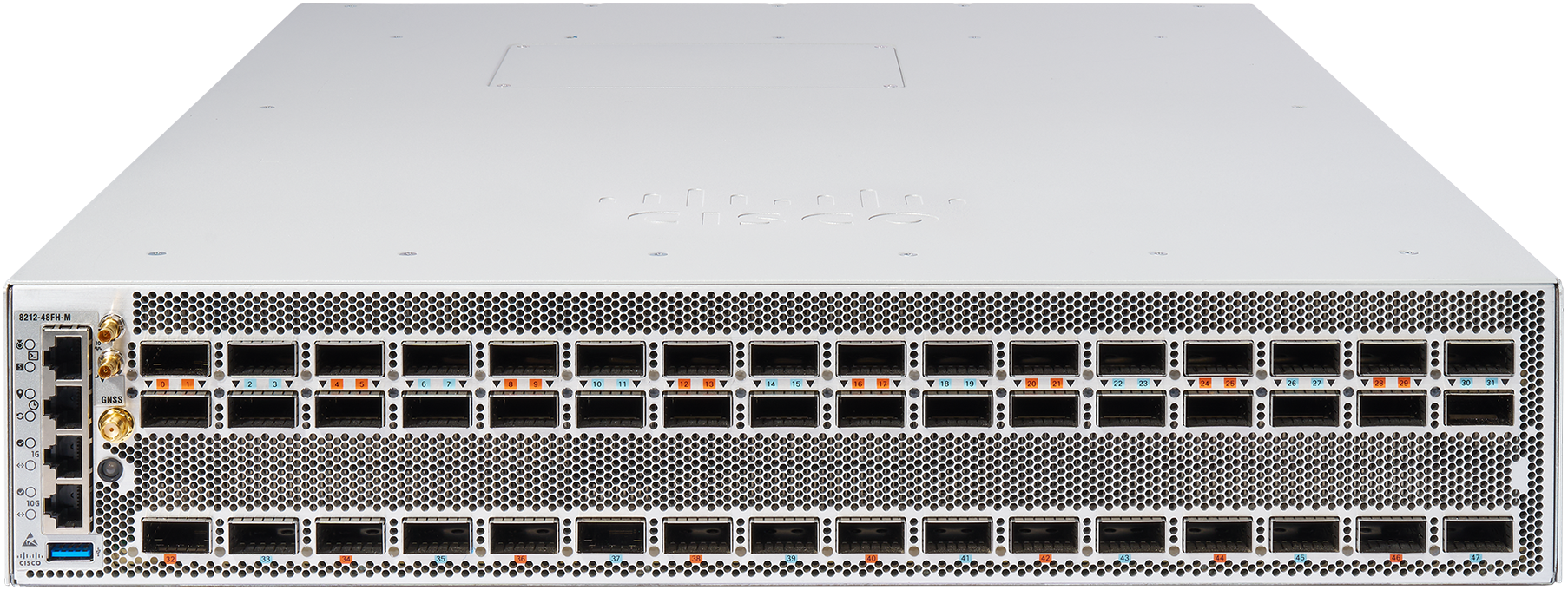

The Cisco 8212-48FH-AC-MT is a fixed 2RU router from the Cisco 8200 Series, built on Cisco Silicon One. It is aimed at provider core, internet peering and data centre interconnect (DCI) deployments, and Cisco also positions the platform for high-bandwidth AI workloads.
This AC-powered variant provides 48 x 400GbE QSFP56-DD ports with MACsec on all ports and 19.2 Tbps of system bandwidth. Port rates are configurable across 800G, 400G, 100G, 40G, 25G and 10G, with breakout options including 2x 400G, 8x 100G, 4x 100G and 4x 25G. Power is supplied by 1+1 redundant AC supplies with four fans in an N+1 arrangement. The system is driven by an Intel 6-core x86 CPU with 64 GB of DRAM and a 128 GB SSD, and supports PTP timing with Class C performance.
Pluggable support covers QSFP+, QSFP28, QSFP56-DD, QSFP-DD800 and OSFP-800 interfaces, plus 400G DCO optics for Routed Optical Network designs. The router runs Cisco IOS XR or a third-party network operating system, and requires software licensing under the Flexible Consumption Model.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Powered by Cisco Silicon One processor in a compact 2RU fixed form factor
- MACsec encryption on all ports
- Segment Routing (SR, SRv6) and EVPN programmability
- Runs Cisco IOS XR or a third-party network operating system
- Open, model-driven APIs (NETCONF, gRPC, OpenConfig) and application hosting on IOS XR
- Cisco Secure Boot and Integrated Measurement Architecture (IMA) for a trusted software chain
- Flexible port rate configuration and breakout options
- 1+1 redundant power supplies and N+1 redundant fans
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 48 x 400GbE QSFP56-DD with MACsec
- System bandwidth: 19.2 Tbps
- Form factor: 2RU fixed
- CPU and memory: Intel 6-core x86 CPU, 64 GB DRAM, 128 GB SSD
- Management interfaces: RS-232 console, 10G control plane expansion, 1G management, 1x USB 2.0
- Timing interfaces: GPS (ToD, 10 MHz, 1PPS), 1588 and BITS (sync)
- Timing performance: PTP with Class C
- Port rates: 800G, 400G, 100G, 40G, 25G, 10G
- Breakout support: 2x 400G, 8x 100G, 4x 100G, 2x 100G, 4x 25G, 4x 10G
- Pluggable optics: QSFP+, QSFP28, QSFP56-DD, QSFP-DD800, OSFP-800
- Optical networking: Routed Optical Network ready, supports 400G DCO optics
- Power: 2 power supplies, 1+1 redundant AC
- Cooling: 4 fans, N+1 redundant, optional air filter
- Dimensions (H x W x D): 8.77 x 43.9 x 59.9 cm (3.45 x 17.3 x 23.6 in.)
- Weight: 22.8 kg (50.25 lb)
- Operating temperature: 0 to 40 C
- Nonoperating temperature: -40 to 70 C
- Humidity: 5% to 95% (noncondensing)
- Altitude: 0 to 3000 m
- Safety: AS/NZS 62368.1, EN/IEC 62368-1, ANSI/UL 62368-1
- Compliance: RoHS 6 compliant with exceptions for leaded BGA balls and lead press fit connectors
FAQs
Q: Does this router need a software licence?
A: Yes. Right-to-Use licences and a Software Innovation Access subscription are ordered with the system, and IOS XR uses the Flexible Consumption Model, which requires Cisco Licensing registration and usage reporting.
Q: Is this the AC or DC power version?
A: The 8212-48FH-AC-MT is the AC-powered variant, using 1+1 redundant AC power supplies with N+1 redundant fans.
Q: Which optics and interfaces does it work with?
A: It supports QSFP+, QSFP28, QSFP56-DD, QSFP-DD800 and OSFP-800 pluggables, as well as 400G DCO optics for Routed Optical Network designs.
Q: Which operating systems can it run?
A: It runs Cisco IOS XR or a third-party network operating system, and SONiC is supported on the 8200 Series.
Q: Can the 400G ports be broken out to lower speeds?
A: Yes. Port rates are configurable and breakout options include 2x 400G, 8x 100G, 4x 100G, 2x 100G, 4x 25G and 4x 10G.
