Cisco 8201-24H8FH-C | 8200 Router, 8x 400G QSFP56-DD, 24x 100G QSFP28, 5.6Tbps
SKU:8201-24H8FH-C
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

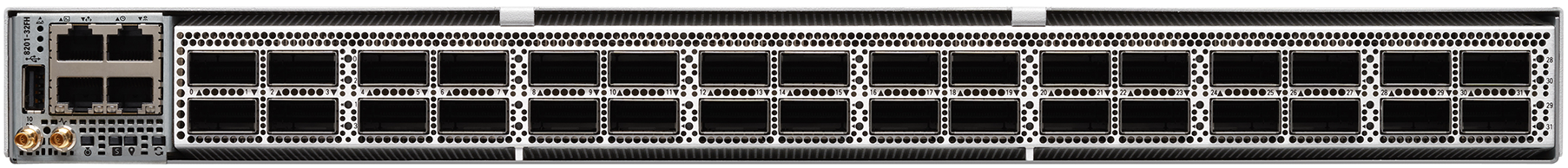

The Cisco 8200 Series 8201-24H8FH is a fixed-port, 1RU high-density router built on the Cisco Silicon One processor and running IOS XR. It is aimed at provider core, internet peering, AI data centre interconnect where deep buffers matter, and high-density 100G and 400G aggregation.
The system provides 5.6 Tbps of bandwidth through 8x 400GbE QSFP56-DD ports and 24x 100GbE QSFP28 ports. Port rates are flexible from 10G up to 800G, with breakout options including 2x 400G, 8x 100G, 4x 100G, 2x 100G, 4x 25G and 4x 10G. It is Routed Optical Networking ready and supports 400G DCO optics. A 4-core 2.4 GHz Intel CPU with 32 GB of DRAM handles the control plane, and typical system power is 205 W at 5.6 Tbps. This -C variant is the enterprise-agreement ordering version of the 8201-24H8FH system.
The router accepts QSFP+, QSFP28, QSFP56-DD, QSFP-DD800 and OSFP-800 pluggable optics. It runs Cisco IOS XR, or open-source SONiC and other third-party network operating systems. Software licensing, including Right-to-Use licences and a Software Innovation Access subscription, is ordered alongside the system.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Cisco Silicon One processor with deep-buffer architecture for data centre interconnect and bursty traffic
- Runs Cisco IOS XR or open-source SONiC and third-party network operating systems
- Segment Routing (SR, SRv6) and EVPN programmable infrastructure
- Enhanced automation for onboarding, service provisioning and monitoring
- Flexible port speeds and breakout options from 10G to 400G
- Routed Optical Networking ready with 400G DCO optics support
- 1+1 redundant AC or DC power supplies and N+1 redundant fans
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 8x 400GbE QSFP56-DD and 24x 100GbE QSFP28
- Bandwidth: 5.6 Tbps
- Form factor: 1 RU fixed chassis
- CPU and memory: Intel 4-core 2.4 GHz CPU, 32 GB DRAM
- Management and timing interfaces: RS-232 console, 10G control plane expansion, 1G management, 1x USB 2.0, GPS (ToD, 10 MHz, 1PPS), 1588 and BITS (sync)
- Port rate configuration: 800G, 400G, 100G, 40G, 25G, 10G
- Breakout support: 2x 400G, 8x 100G, 4x 100G, 2x 100G, 4x 25G, 4x 10G
- Supported optics: QSFP+, QSFP28, QSFP56-DD, QSFP-DD800, OSFP-800
- Typical system power: 205 W at 5.6 Tbps
- Power supplies: 2, 1+1 redundant, AC and DC options
- Fans: 6, N+1 redundant
- Dimensions (H x W x D): 4.40 x 43.9 x 59.9 cm (1.73 x 17.3 x 23.6 in)
- Weight: 14.09 kg (31 lb)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Nonoperating temperature: -40 to 70 C (-40 to 158 F)
- Humidity: 5% to 95% (noncondensing)
- Altitude: 0 to 3000 m (0 to 9842 ft)
- MACsec: Not supported on this model
FAQs
Q: Does this router need a software licence?
A: Yes. Right-to-Use licences and a Software Innovation Access subscription are ordered with the system so it works properly. The IOS XR Flexible Consumption Model requires Cisco Licensing registration and usage reporting.
Q: What optics does it support?
A: The ports accept QSFP+, QSFP28, QSFP56-DD, QSFP-DD800 and OSFP-800 pluggable optics. It also supports 400G DCO optics for Routed Optical Networking.
Q: How is it powered, and is it redundant?
A: It has two power supplies in a 1+1 redundant arrangement, with AC and DC options, plus six fans in an N+1 arrangement. Typical system power is 205 W at 5.6 Tbps.
Q: Which operating systems can it run?
A: It runs Cisco IOS XR, or open-source SONiC and other third-party network operating systems.
Q: How does the -C variant differ from the base 8201-24H8FH?
A: The -C suffix is the enterprise-agreement ordering variant of the same 8201-24H8FH system, with the same 8x 400GbE and 24x 100GbE port layout and 5.6 Tbps of bandwidth.
