Cisco

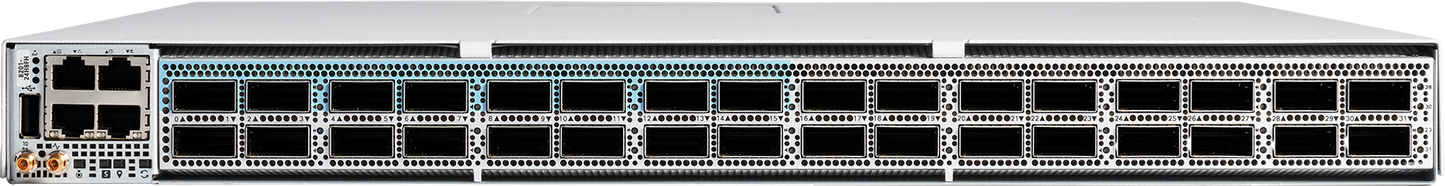

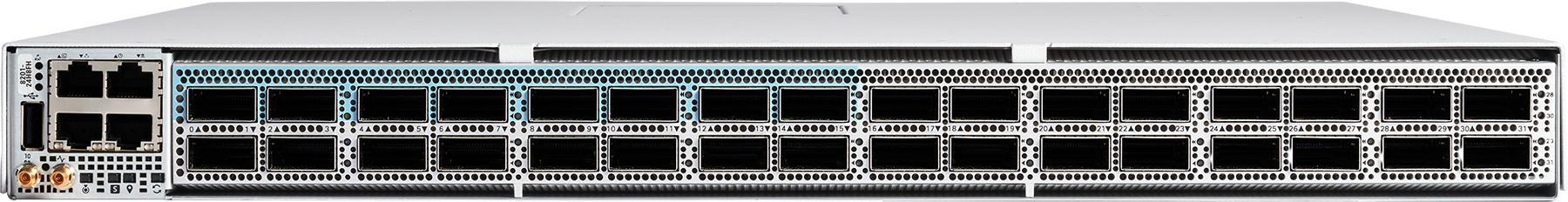

Cisco 8201-24H8FH | 8200 5.6Tbps Router, 8x 400G QSFP56-DD, 24x 100G

SKU:8201-24H8FH

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 8201-24H8FH is a fixed 1RU router in the Cisco 8200 Series, built on Cisco Silicon One. It is aimed at AI data centre interconnect, provider core and internet peering, and high-density 100G and 400G aggregation where deep buffers and compact rack space matter.

The chassis delivers 5.6 Tbps of bandwidth through 8x 400GbE QSFP56-DD ports and 24x 100GbE QSFP28 ports. Port rates are flexible across 800G, 400G, 100G, 40G, 25G and 10G, with breakout options including 2x 400G, 8x 100G, 4x 100G, 2x 100G, 4x 25G and 4x 10G. An Intel 4-core 2.4 GHz CPU with 32 GB of DRAM handles the control plane, and typical system power is 205 W at 5.6 Tbps. Power is provided by two 1+1 redundant AC or DC power supplies, and cooling by six N+1 redundant fans.

It runs Cisco IOS XR or a third-party operating system and is Routed Optical Network ready, supporting 400G DCO optics. The 8200 Series supports QSFP+, QSFP28, QSFP56-DD, QSFP-DD800 and OSFP-800 optic form factors. The software licence, Right-to-Use licences and Software Innovation Access subscription are ordered alongside the system.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Powered by Cisco Silicon One processors in a compact 1RU form factor
- Flexible port rate configuration from 10G to 800G with breakout support
- Routed Optical Network ready with support for 400G DCO optics
- Runs Cisco IOS XR or a third-party operating system
- Segment Routing (SR, SRv6) and EVPN for programmable infrastructure
- IOS XR Secure Boot, IMA runtime integrity verification and model-driven APIs (OpenConfig, gRPC, NETCONF)
- N+1 redundant fans and 1+1 redundant AC and DC power supplies
- Enhanced automation for onboarding, service provisioning and monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Fixed chassis PID: 8201-24H8FH
- Bandwidth: 5.6 Tbps
- Height: 1 RU
- Ports: 8x 400GbE QSFP56-DD and 24x 100GbE QSFP28
- CPU and memory: Intel 4-core 2.4 GHz CPU with 32 GB DRAM
- Port rate configuration: 800G, 400G, 100G, 40G, 25G, 10G (flexible)
- Breakout support: 2x 400G, 8x 100G, 4x 100G, 2x 100G, 4x 25G, 4x 10G
- Management and timing: RS-232 console, 10G control plane expansion, 1G management, 1x USB 2.0, GPS (ToD, 10 MHz, 1PPS), 1588, BITS (sync)
- Dimensions (H x W x D): 4.40 x 43.9 x 59.9 cm (1.73 x 17.3 x 23.6 in)
- Weight: 14.09 kg (31 lb)
- Typical system power: 205 W at 5.6 Tbps
- Power supplies and fans: 2 power supplies, 6 fans
- Redundancy: 1+1 AC and DC power supplies, N+1 fans
- Operating temperature: 0 to 40 C (32 to 104 F)
- Non-operating temperature: -40 to 70 C (-40 to 158 F)
- Humidity: 5% to 95% (non-condensing)
- Altitude: 0 to 3000 m (0 to 9842 ft)
- Optic form factors (8200 Series): QSFP+, QSFP28, QSFP56-DD, QSFP-DD800, OSFP-800
- Safety: AS/NZS 62368.1, EN/IEC 62368-1, ANSI/UL 62368-1
- RoHS: RoHS 6 compliant with exemptions for leaded BGA balls and lead press-fit connectors

FAQs

Q: Does the 8201-24H8FH need a software licence?
A: Yes. The software licence, Right-to-Use licences and Software Innovation Access subscription are ordered with the system for it to work properly. The IOS XR Flexible Consumption Model also requires Cisco Licensing registration and usage reporting.

Q: What power does it use?
A: It has two power supplies in a 1+1 redundant arrangement, with AC and DC options, plus six N+1 redundant fans. Typical system power is 205 W at 5.6 Tbps.

Q: Which optics and speeds does it support?
A: The 8200 Series supports QSFP+, QSFP28, QSFP56-DD, QSFP-DD800 and OSFP-800 form factors, including 400G DCO optics for Routed Optical Network designs. Port rates are configurable from 10G to 800G with breakout modes available.

Q: Which operating system does it run?
A: It runs Cisco IOS XR, or a third-party operating system.

Q: What is it typically used for?
A: It suits AI data centre interconnect that needs deep buffers, provider core and internet peering, and high-density 100G and 400G aggregation.
