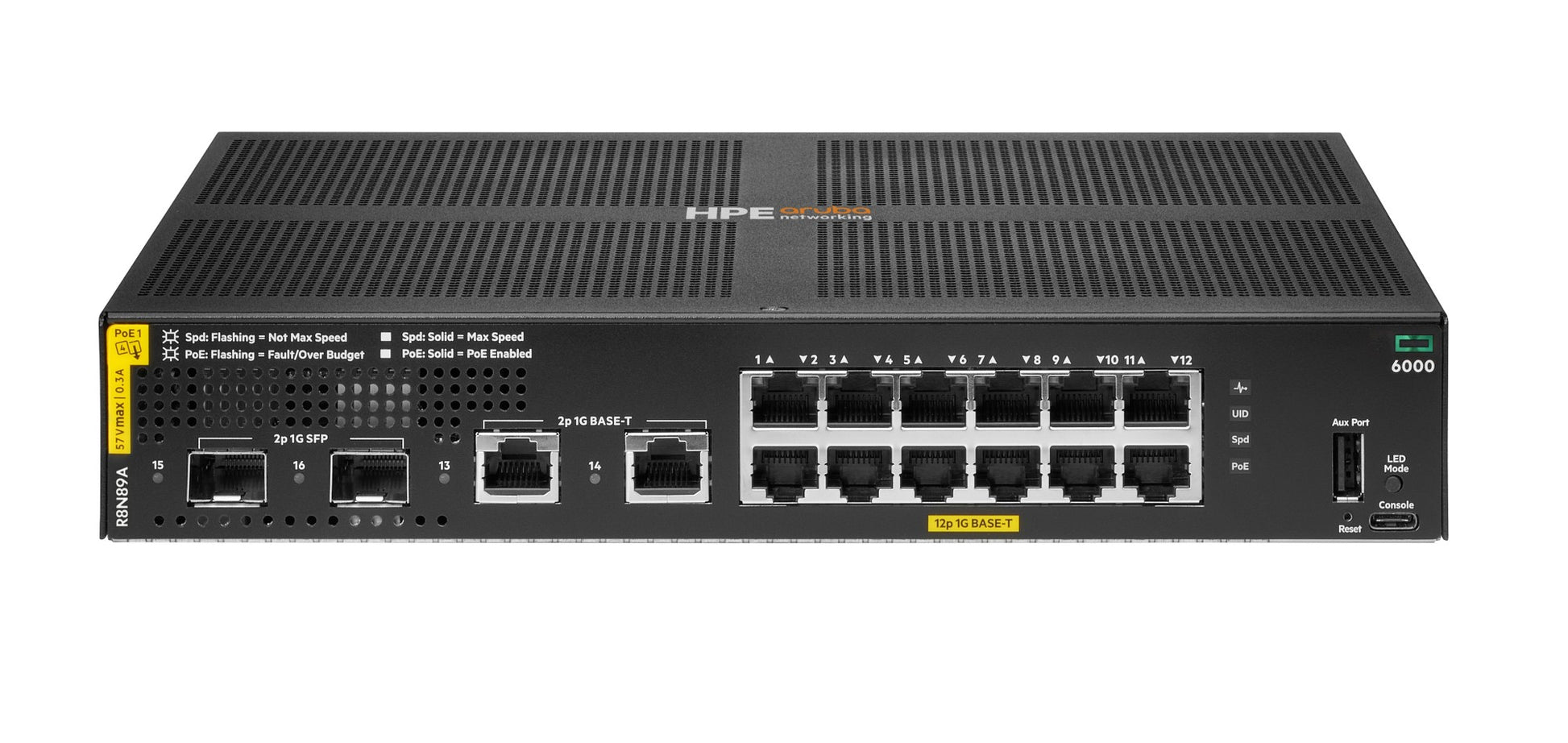

Aruba R8N89A | CX 6000 12-Port Gigabit PoE+ Switch, 139W, Fanless

SKU:R8N89A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6000 12-port switch is an entry-level, fully managed Layer 2 Gigabit access switch that runs the AOS-CX operating system. It is a fanless, 1U compact unit, which suits branch offices, midsize businesses, small enterprises and quiet or space-constrained workspaces. It powers wireless access points, security cameras and IoT devices directly from the switch.

The switch provides 12 x 10/100/1000BASE-T ports with Class 4 PoE/PoE+, delivering up to 30W per port from a 139W PoE budget. Uplinks are 2 x 1GbE RJ-45 plus 2 x 1G SFP. Switching capacity is 32 Gbps with 23.8 Mpps throughput and 2.3 µs latency at 1 Gbps. Maximum power draw is 21.9W without PoE and 170W with full PoE, from an internal AC supply (100-127 VAC / 200-240 VAC).

No software licence or subscription is required, as AOS-CX is embedded and works out of the box. Management is available through Aruba NetEdit, the Web GUI, the CLI or REST APIs. The 1G SFP uplink ports accept 1G SFP optics, and the unit can be rack mounted, or placed on a horizontal surface or wall.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs the programmable AOS-CX operating system used across the Aruba CX portfolio
- Layer 2 features with static routing, ACLs, QoS, traffic prioritisation, sFlow and IPv6 support
- Aruba ASIC architecture with very low latency, increased packet buffering and adaptive power consumption
- Up to 30W per port IEEE 802.3at Class 4 PoE for access points, cameras and IoT devices
- Up to four built-in wire-speed 1GbE uplinks
- Compact fanless design for quiet, space-constrained deployments
- Managed through Aruba NetEdit, Web GUI, CLI or Aruba Central
- REST APIs for software-defined programmability
- Colourless ports using local user roles and local MAC authentication

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 12 x 10/100/1000BASE-T (Class 4 PoE/PoE+)
- Uplinks: 2 x 1GbE RJ-45 + 2 x 1G SFP
- PoE budget: 139W Class 4 PoE/PoE+ (up to 30W per port)
- Switching capacity: 32 Gbps
- Throughput: 23.8 Mpps
- Latency: 2.3 µs at 1 Gbps
- Routing: Layer 2 with static routing
- Processor: Dual Core ARM Cortex A9 @ 1016 MHz
- Flash: 16 GB eMMC
- Input voltage: 100-127 VAC / 200-240 VAC
- Power consumption: 21.9W maximum without PoE
- Power consumption: 170W maximum with PoE
- Operating temperature: 0 to 45 C up to 1.5 km altitude
- Dimensions: 4.4 x 25.4 x 25.5 cm
- Weight: 2.8 kg
- Cooling: Fanless

FAQs

Q: Does this switch need a software licence or subscription?
A: No. AOS-CX software is embedded with the switch and works out of the box, with no licence or subscription required.

Q: How much PoE power does it provide?
A: The PoE budget is 139W across the 12 ports, with Class 4 PoE/PoE+ delivering up to 30W per port.

Q: What can I connect to the uplink ports?
A: There are 2 x 1GbE RJ-45 uplinks and 2 x 1G SFP uplinks. The SFP ports take 1G SFP optics.

Q: How can this switch be mounted?
A: It can be rack mounted using a rack-mount kit, or placed on a horizontal surface or wall.

Q: How can I manage it?
A: It can be managed with Aruba NetEdit, the Web GUI, the CLI or REST APIs, and is also manageable through Aruba Central.
