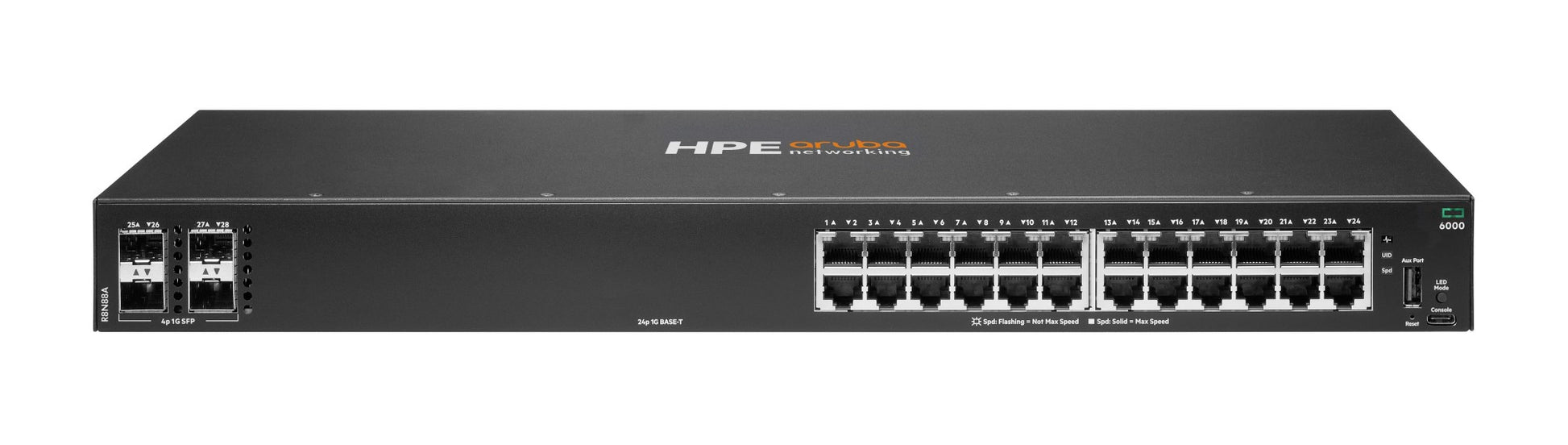

Aruba R8N88A | CX 6000 24-Port Gigabit Switch, 4x 1G SFP, Non-PoE
SKU:R8N88A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Aruba CX 6000 24G 4SFP is an entry-level, fully managed Layer 2 gigabit access switch running AOS-CX, with static routing support. It is aimed at branch offices, midsize businesses and small enterprises, and suits retail, school and enterprise-edge access deployments supporting IoT, mobile and cloud applications.
This is the 24G Non-PoE, 4x 1G SFP, 1U variant. It provides 24 x 10/100/1000BASE-T RJ-45 ports plus 4 x 1G SFP uplink ports, with 56 Gbps switching capacity and 41.6 Mpps throughput. It uses a fixed internal AC power supply and fixed fans with a maximum draw of 33 W, and no software licence or subscription is required to enable the AOS-CX Standard tier software.
The SFP ports accept the 1G transceivers J4858D (SX), J4859D (LX) and J8177D (RJ45 T). Management is available through the Web GUI, CLI or Aruba NetEdit.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Layer 2 connectivity with ACLs, QoS, static routing, sFlow and IPv6 support
- Built-in 1G SFP uplinks to avoid access-layer bottlenecks
- AOS-CX operating system shared across the Aruba CX portfolio
- Management through Aruba Central, Web GUI, CLI or Aruba NetEdit
- Zero Touch Provisioning for simpler rollouts
- REST APIs for automation and software-defined workflows
- Colourless ports using local user roles and MAC authentication to simplify moves and changes
- Jumbo frames and Auto-MDIX on all 10/100/1000 ports
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 24 x 10/100/1000BASE-T RJ-45
- Uplinks: 4 x 1G SFP
- PoE capability: Non-PoE model
- Console and host ports: 1 x USB-C console, 1 x USB Type-A host
- Routing: Static
- Switching capacity: 56 Gbps
- Throughput: 41.6 Mpps
- Latency (1 Gbps, 64-byte): 1.5 microseconds
- CPU: Dual Core ARM Cortex A9 at 1016 MHz
- Packet buffer: 12.38 MB
- MAC table capacity: 8,192
- IPv4 unicast routes: 512
- IPv6 unicast routes: 512
- Switched virtual interfaces: 16
- Power supply: Fixed internal, 100-127 VAC / 200-240 VAC, 50/60 Hz
- Power consumption (230 VAC): 15.4 W idle, 33 W maximum
- Fans: Fixed, side-to-side airflow
- Dimensions (H x W x D): 4.39 x 44.2 x 20.12 cm
- Weight: 2.62 kg
- Operating temperature: 0 to 45 C up to 1.5 km
- Operating humidity: 15% to 95% at 40 C, non-condensing
- Mounting: 19-inch rack, horizontal surface or wall
- Form factor: 1U fixed chassis
FAQs
Q: Does this switch need a software licence?
A: No. The AOS-CX Standard tier software is embedded and no licence or subscription is needed to enable the switch. Aruba NetEdit is an optional subscription.
Q: Does it provide PoE?
A: No. This is a non-PoE model, so powered devices need a separate power source or PoE injector.
Q: Which SFP modules does it work with?
A: The 4 SFP ports accept 1G transceivers including J4858D (SX, 500 m on OM2 multimode), J4859D (LX, 10 km single-mode) and J8177D (RJ45 T, 100 m on Cat5e).
Q: What power does it use?
A: It has a fixed internal AC power supply for 100-127 VAC or 200-240 VAC at 50/60 Hz. Maximum consumption is 33 W.
Q: Does it support Layer 3 routing?
A: It supports static routing only, so it is best used as a Layer 2 access switch with basic static routes.
