Aruba

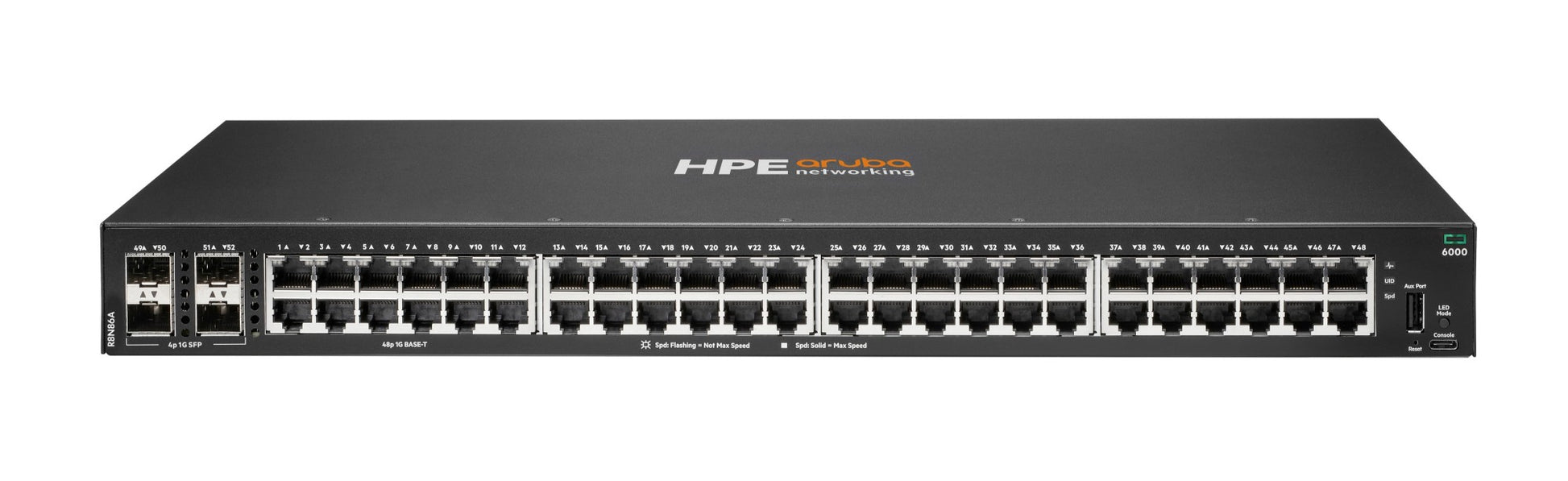

Aruba R8N86A | CX 6000 48-Port Gigabit Switch, 4x 1G SFP, Non-PoE

SKU:R8N86A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6000 48G 4SFP is an entry-level, fully managed Layer 2 Gigabit access switch running AOS-CX. It suits branch offices, midsize businesses and small enterprises that need dependable access-layer switching for IoT, mobile and cloud applications, without PoE.

This model provides 48 x 10/100/1000BASE-T ports and 4 x 1G SFP uplink ports, with 104 Gbps switching capacity and 77.3 Mpps throughput. It is a non-PoE unit with a fixed internal AC power supply and fixed fans, drawing 20.6 W at idle and a maximum of 44.2 W at 230 VAC. Layer 2 switching is complemented by static routing, with 8,192 MAC addresses, 4094 VLAN IDs and link aggregation of up to 8 links per LAG.

The four SFP ports take 1G SFP transceivers. Management is available through the Web GUI, CLI, REST APIs or Aruba NetEdit, and Zero Touch Provisioning is supported. No software licence or subscription is required, as the AOS-CX software is embedded.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs AOS-CX, the operating system used across the Aruba CX portfolio
- Managed via Web GUI, CLI, REST APIs or Aruba NetEdit
- Zero Touch Provisioning for simpler deployment
- Colorless ports using local user roles and local MAC authentication
- 802.1Q VLANs with RPVST+, STP, RSTP and MSTP
- Link aggregation with up to 8 links per LAG
- Jumbo frames up to 9198 bytes
- Static routing, ACLs, QoS, sFlow and IPv6 support
- Energy Efficient Ethernet (802.3az) and LLDP-MED
- Dual flash images for resilient software updates

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48x 10/100/1000BASE-T, 4x 1G SFP
- Console and USB: 1x USB-C console port, 1x USB Type-A host port
- PoE capability: Non-PoE
- Power supply: Fixed internal AC, 100-127 VAC / 200-240 VAC, 50/60 Hz
- Fans: Fixed
- Switching capacity: 104 Gbps
- Throughput: 77.3 Mpps
- Latency (1 Gbps): 1.9 µs
- Routing: Static
- CPU: Dual Core ARM Cortex A9 @ 1.016 GHz
- Memory and flash: 4 GB DDR3, 16 GB eMMC
- Packet buffer: 1 MB
- MAC table capacity: 8,192
- IPv4 / IPv6 host table: 1,024 / 512
- IPv4 / IPv6 unicast routes: 512 / 512
- Switched virtual interfaces (dual stack): 16
- Power consumption (230 VAC): 20.6 W idle, 44.2 W maximum
- Dimensions (H x W x D): 4.39 x 44.2 x 24.74 cm
- Weight: 3.42 kg
- Operating temperature: 0 to 45 C up to 1.5 km
- Operating humidity: 15% to 95% at 40 C non-condensing
- Airflow: Side-to-side
- Mounting: 1U, 19-inch rack or horizontal surface
- Emissions: FCC Part 15 Class A, EN 55032 Class A, AS/NZS CISPR 32 Class A

FAQs

Q: Does this switch need a software licence or subscription?
A: No. The AOS-CX software is embedded and no licence or subscription is required to enable the switch features.

Q: Does this model supply PoE?
A: No. This is the non-PoE variant and provides no PoE budget. It runs from a fixed internal AC power supply with a maximum draw of 44.2 W.

Q: What can I connect to the SFP ports?
A: The 4 SFP ports accept 1G SFP transceivers and are typically used as uplinks to the core or distribution layer.

Q: How can I manage the switch?
A: You can manage it through the Web GUI, CLI or Aruba NetEdit, and automate it using REST APIs and Zero Touch Provisioning.

Q: Does it support Layer 3 routing?
A: It is a Layer 2 switch with static routing support, suited to access-layer deployments rather than full dynamic routing.
