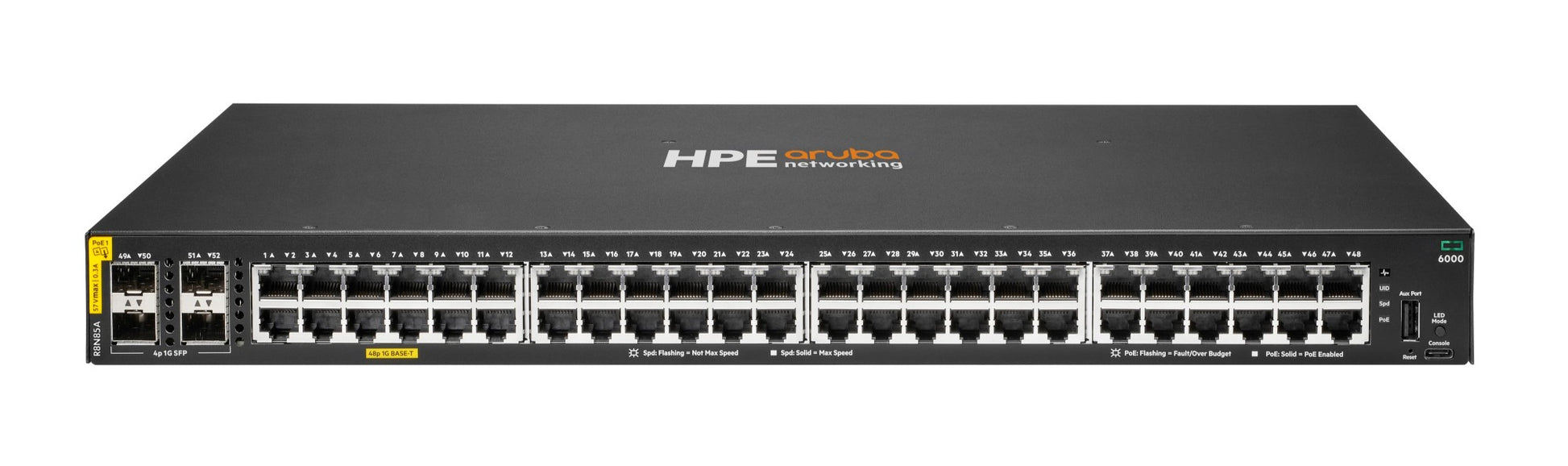

Aruba R8N85A | CX 6000 48-Port Gigabit PoE+ Switch, 370W, 4x 1G SFP

SKU:R8N85A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6000 is an entry-level Layer 2 Gigabit access switch running AOS-CX, built for wired access at branch offices, small and medium businesses and the enterprise edge. It powers wireless access points, IoT devices and client endpoints from a single 1U chassis.

This model provides 48 x 10/100/1000BASE-T PoE+ Class 4 ports and 4 x 1G SFP uplinks. The 370W PoE budget supplies up to 30W per port under IEEE 802.3af/at. Switching capacity is 104 Gbps with 77.3 Mpps throughput, and it supports static routing, QoS, ACLs and IPv6. No switch software licence or subscription is required to operate it.

Management is available through Aruba Central, the Web GUI, the CLI or Aruba NetEdit, and REST APIs support software-defined workflows. The four SFP uplink ports accept 100/1000BASE-X optics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- AOS-CX operating system on Aruba ASIC architecture
- Up to 370W of Class 4 PoE for access points, client devices and IoT
- Managed via Aruba Central, Web GUI, CLI or Aruba NetEdit
- REST APIs for software-defined and automated workflows
- Static routing, QoS, ACLs and IPv6 support
- Built-in 1G SFP uplinks for fibre or switch aggregation
- No switch software licence or subscription required
- 1U rack-mountable with side-to-side airflow

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000BASE-T PoE+ and 4 x 1G SFP
- PoE capability: 370W Class 4 PoE/PoE+ (IEEE 802.3af/at)
- Switching capacity: 104 Gbps
- Throughput: 77.3 Mpps
- Latency (1 Gbps): 1.9 microseconds
- Routing: Static
- Processor: Dual Core ARM Cortex A9 at 1016 MHz
- Flash: 16 GB eMMC
- Packet buffer: 12.38 Mb
- MAC address table size: 8192 entries
- Jumbo frame support: 9198 bytes
- Switched Virtual Interfaces: 16
- ARP entries: 1024
- IPv4 unicast routes: 512
- IPv6 unicast routes: 512
- IGMP groups: 512
- MLD groups: 512
- IPv4 ACL entries (ingress): 256
- IPv6 ACL entries (ingress): 128
- MAC ACL entries (ingress): 256
- Input voltage: 100-127 VAC / 200-240 VAC, 50/60 Hz
- Maximum power consumption: 45 W without PoE, 480 W with full PoE
- Operating temperature: 0 to 45 C, derate -1 C per 305 m from 1.5 to 3.0 km
- Dimensions (H x W x D): 44 x 442 x 305 mm
- Weight: 5.0 kg
- Airflow: Side-to-side
- Console: 1 x USB-C console port, 1 x USB Type-A host port

FAQs

Q: Does this switch need a software licence or subscription?
A: No. No switch software licence or subscription is required to operate it. Aruba Central cloud management is optional.

Q: How much PoE power does it provide?
A: It provides a 370W Class 4 PoE/PoE+ budget shared across the 48 ports, with up to 30W available on any single port.

Q: What can I connect to the SFP uplink ports?
A: The four SFP ports support 100/1000BASE-X optics and are intended for uplinks to a core or aggregation switch.

Q: How can this switch be managed?
A: It can be managed through Aruba Central, the Web GUI, the CLI or Aruba NetEdit, and it also supports REST APIs.

Q: What mains power does it need?
A: It uses a fixed internal power supply that accepts 100-127 VAC or 200-240 VAC at 50/60 Hz. Maximum draw is 45 W without PoE and 480 W with full PoE load.
