Aruba

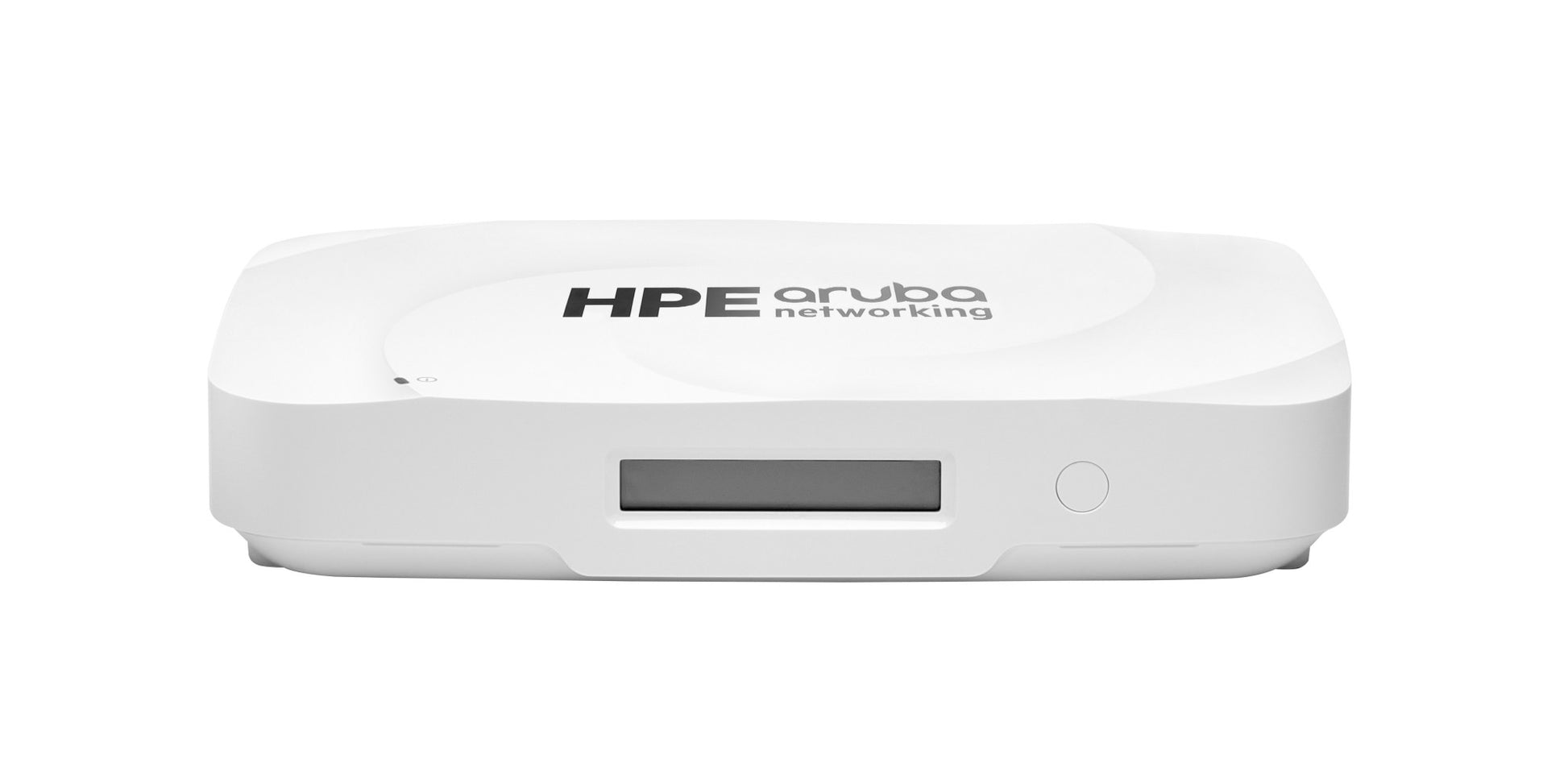

Aruba R8N09A | AP-605R Wi-Fi 6E Tri-Band Remote Access Point, RW

R8N09A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba AP-605R is an indoor desk-mount remote access point from the 600R Series, built for remote workers and small branch offices that need secure, centrally managed Wi-Fi 6E and wired connectivity without a gateway. This R8N09A is the RW (Rest of World) regulatory domain variant with integrated antennas and no cellular module.

It carries two 2x2 MIMO radios that auto-tune across the 2.4, 5 and 6 GHz bands, with up to 3.6 Gbps combined peak data rate across 5 GHz and 6 GHz. Wired connectivity includes a 100/1000/2500BASE-T up/downlink port with 802.3af/at PoE-PD, a 10/100/1000BASE-T uplink port and three 10/100/1000BASE-T downlink ports, one of which supplies 802.3af PoE (15.4 W max). A USB 2.0 Type-A host port, Bluetooth 5 and Zigbee radios and a GNSS receiver are also built in.

It runs ArubaOS 10.5.0.0 or later and is managed through Aruba Central. A bay for the optional AP-605CM12 CAT12 LTE module (R8N34A) allows cellular backup or primary connectivity on units fitted with it.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Unlocks the 6 GHz band with up to seven 160 MHz channels for greater capacity
- Zero-touch provisioning and cloud management through Aruba Central, with Live Upgrade
- Built-in SD-WAN route and tunnel orchestration with policy-based routing, no gateway needed
- AirMatch ML-based RF optimisation and Air Slice application assurance
- WPA3 Enterprise with CNSA option, Personal (SAE) and OWE, plus RAPIDS intrusion detection
- Integrated GPS and fine time measurement with Open Locate for indoor location
- IoT ready with BLE 5 and Zigbee radios plus USB extension
- Intelligent Power Monitoring (IPM) and Advanced Cellular Coexistence filtering

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi standard: Wi-Fi 6E (802.11ax), dual-radio tri-band 2.4/5/6 GHz, 2x2 MIMO
- 2.4 GHz radio: 2SS SU-MIMO, up to 574 Mbps (HE40), 287 Mbps (HE20)
- 5 GHz radio: 2SS SU-MIMO, up to 1.2 Gbps (HE80)
- 6 GHz radio: 2SS SU-MIMO, up to 2.4 Gbps (HE160)
- Max combined data rate: up to 3.6 Gbps (5 GHz + 6 GHz)
- Associated clients: up to 512 per radio
- BSSIDs: up to 16 per radio (limited to 4 on 6 GHz)
- Max conducted transmit power: +21 dBm per radio/band (18 dBm per chain)
- Antennas: Integrated omni-directional, peak gain 5.5 dBi in 2.4, 5 and 6 GHz
- Uplink port (E0): 1 x 10/100/1000BASE-T RJ-45, 802.3az EEE
- Up/downlink port (E1): 1 x 100/1000/2500BASE-T RJ-45, 802.3af/at PoE-PD (class 3 or higher)
- Downlink ports: 3 x 10/100/1000BASE-T RJ-45, E4 with 802.3af PoE-PSE (15.4 W max)
- USB: USB 2.0 Type-A host port, up to 1A / 5W
- Other radios: Bluetooth 5.0, Zigbee (802.15.4), GNSS L1 receiver
- DC power input: 48Vdc nominal (+/-5%), 1.35mm/3.5mm center-positive plug
- Max power consumption: 40 W worst case, 14.5 W baseline, 4.9 W idle
- Dimensions (W x D x H): 225 x 150 x 40 mm
- Weight: 900 g
- Operating temperature: 0 to +40 C, humidity 5% to 95%
- Hardware security: Built-in TPM, Kensington security slot, micro-B USB serial console
- Minimum software: ArubaOS 10.5.0.0

FAQs

Q: How is the AP-605R powered?
A: It can be powered by 802.3af/at PoE (class 3 or higher) on the E1 port, or by a 48V DC adapter. With IPM at its default setting on class 3 PoE, Ethernet is limited to 1 Gbps and USB is disabled.

Q: Can it power a downstream device?
A: Yes. Port E4 can supply 802.3af PoE (15.4 W max) and the USB port can source up to 5 W.

Q: What does the RW variant mean?
A: RW is the Rest of World regulatory domain. This SKU has integrated antennas and no cellular module.

Q: Can I add cellular connectivity?
A: The AP-605R has an internal bay for the optional AP-605CM12 CAT12 LTE module (R8N34A), which fits behind the back cover.

Q: What software and management does it need?
A: It requires ArubaOS 10.5.0.0 or later and is managed through Aruba Central, which provides zero-touch provisioning.

Q: How is it mounted?
A: The AP-605R is a desk-mount unit designed for home offices and small branch use.
