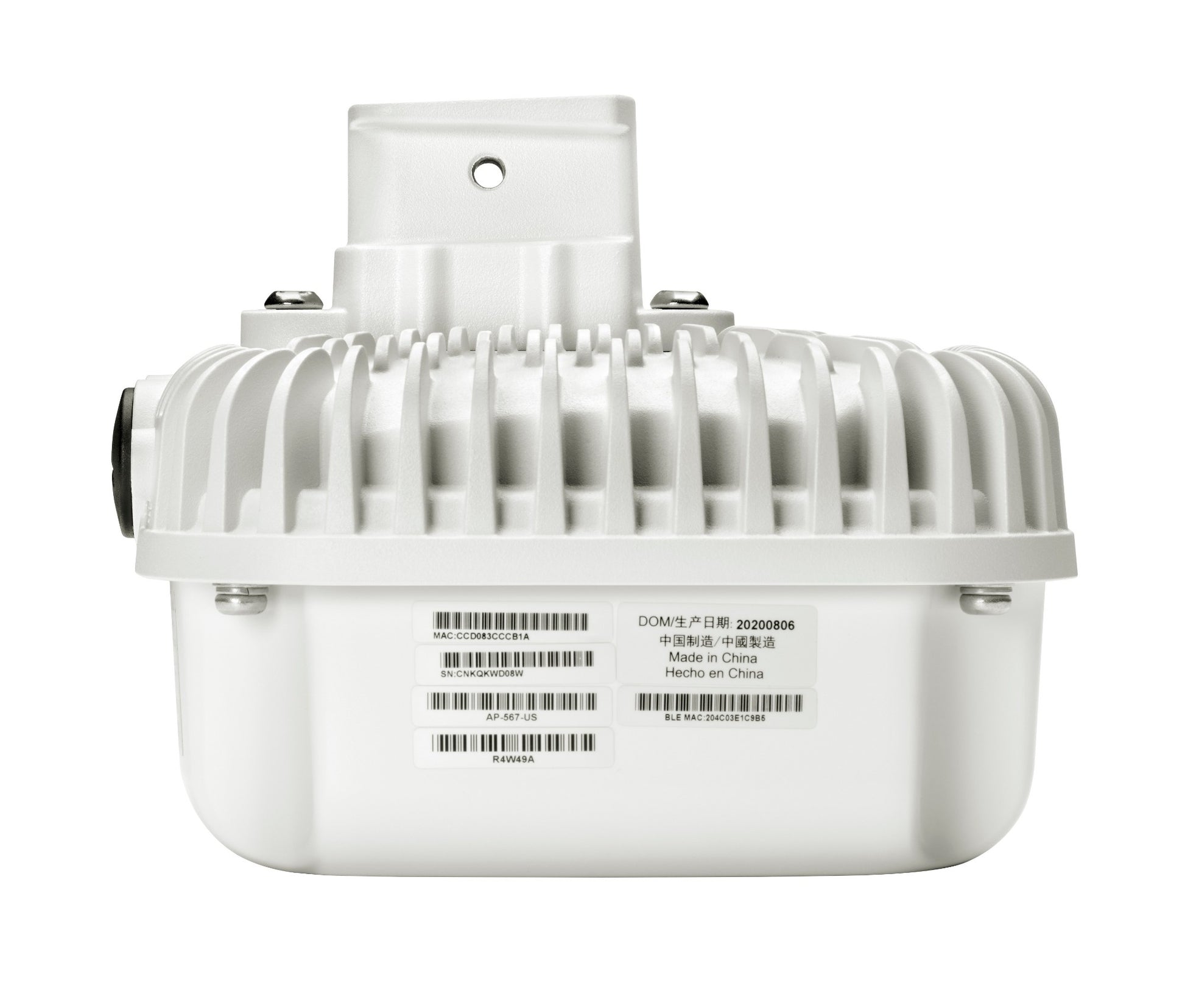

Aruba R4W58A | 560 Series Wi-Fi 6 Outdoor Access Point, Directional
SKU:R4W58A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Aruba 560 Series AP-567 is an entry-level Wi-Fi 6 (802.11ax) outdoor access point built for harsh environments, including warehouses, yards and sites with extreme temperatures. It uses built-in 90 degree horizontal by 90 degree vertical directional antennas to focus coverage where it is needed, and it also carries Bluetooth 5 and 802.15.4 (Zigbee) radios for IoT and location services.
This SKU is the AP-567 (RW) TAA variant with the Rest of World regulatory domain. It has a dual 2x2:2 radio design, with 5 GHz and 2.4 GHz radios delivering up to 1.49 Gbps maximum aggregate on-air data rate, and up to 1.2 Gbps on 5 GHz. A single 10/100/1000BASE-T RJ-45 port provides both data and 802.3at/bt PoE power, with a maximum consumption of 15.6 W. The housing is rated IP66/IP67 and operates from -40 to +55 C with full solar loading.
It runs ArubaOS and InstantOS 8.8.0.0 or later, and can be managed through Aruba controllers or Aruba Central. No per-AP licence is needed to operate in controller or Instant mode, while Aruba Central cloud management needs a separate subscription. The AP-POE-ATSR 30W midspan injector (R6P67A) is a suitable PoE option.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- OFDMA and downlink MU-MIMO for efficient Wi-Fi 6 client handling
- Fully sealed outdoor design with industrial-strength surge protection on all electrical interfaces
- Integrated Bluetooth 5 and 802.15.4 (Zigbee) radio for IoT and location services
- ClientMatch for client and RF optimisation
- Advanced Cellular Coexistence (ACC) to minimise interference from cellular networks
- Dynamic segmentation with a policy enforcement firewall (PEF)
- Zero-touch provisioning and cloud management via Aruba Central
- Intelligent Power Monitoring (IPM) adapts to the available PoE budget
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Radios: dual radio, 5 GHz 2x2:2 and 2.4 GHz 2x2:2 MIMO
- Maximum aggregate on-air data rate: 1.49 Gbps (HE80/HE20)
- 5 GHz data rate: up to 1.2 Gbps with 2SS HE80
- Antenna: built-in 90H x 90V directional antennas
- Antenna gain: 5 GHz 6.7 dBi, 2.4 GHz 7.0 dBi, BLE/802.15.4 3.2 dBi
- Maximum EIRP 5 GHz: 32.7 dBm (limited by local regulatory requirements)
- Network interface: 1 x 10/100/1000BASE-T (RJ-45), auto-sensing link speed and MDI/MDX
- PoE input: 802.3at/bt PoE-PD, 48 Vdc nominal
- Wireless IoT: Bluetooth 5 and 802.15.4 (Zigbee) radio
- Other interfaces: USB-C console, reset button, multi-colour status LED
- Maximum power consumption: 15.6 W
- Idle power consumption: 4.2 W
- Deep-sleep power consumption: 1.7 W
- Dimensions (W x D x H, excluding mount): 16.5 x 16.5 x 13 cm
- Weight (excluding mount): 1.09 kg
- Operating temperature: -40 to +55 C with full solar loading
- Operating humidity: 5% to 95% non-condensing
- Ingress protection: IP66/IP67
- Salt spray: tested to ASTM B117-07A, 200 hrs
- Regulatory domain: Rest of World (RW), TAA compliant
- Regulatory model number: APEX0567
- Supported software: ArubaOS and InstantOS 8.8.0.0 or later
FAQs
Q: Does this access point need a per-AP licence?
A: No per-AP licence is required to operate in controller (ArubaOS) or Instant mode. Aruba Central cloud management needs a separate subscription.
Q: What PoE standard does it need?
A: It is powered by PoE only. 802.3at (PoE+) is recommended for unrestricted operation and 802.3bt is also supported. Maximum consumption is 15.6 W.
Q: Which PoE injector suits this access point?
A: The Aruba AP-POE-ATSR 1-port Smart Rate 802.3at 30W midspan injector (R6P67A) is a suitable PoE option.
Q: Which software and management options does it support?
A: It runs ArubaOS and InstantOS 8.8.0.0 or later and can be managed through Aruba controllers or Aruba Central.
Q: How does this model differ from other 560 Series access points?
A: This is the AP-567 (RW) TAA variant, which has built-in 90 by 90 degree directional antennas and the Rest of World regulatory domain.
Q: What mounting bracket does it use?
A: Aruba wall and pole brackets such as the H1, V1A and V2 are ordered separately.
