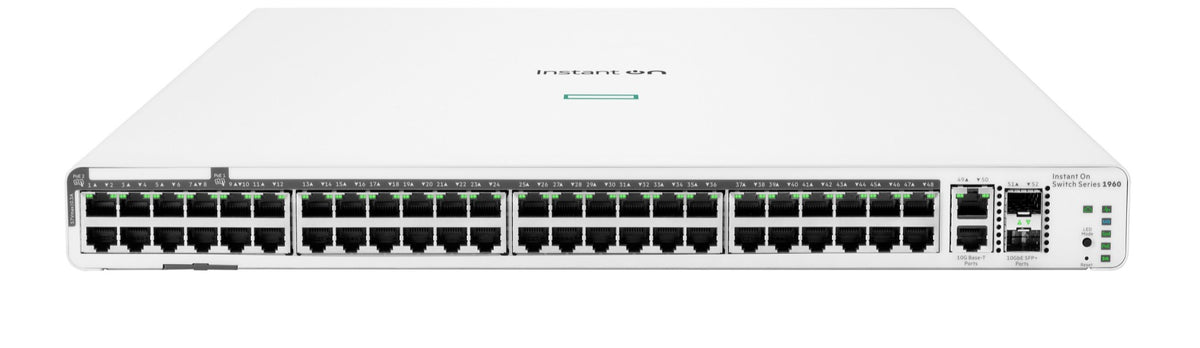

Aruba JL809A | Instant On 1960 48-Port PoE+ Switch, 600W, 2x 10G SFP+
SKU:JL809A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Instant On 1960 is a smart-managed Layer 2+ stackable Gigabit PoE switch aimed at small and growing businesses, retail sites and education environments. It powers wireless access points, IP cameras and VoIP phones from a single 1U unit, with 10G uplinks to servers, storage or other switches.
The switch provides 48 RJ-45 10/100/1000 PoE ports, split into 40 Class 4 (PoE+) ports and 8 Class 6 (PoE++) ports, sharing a 600W total PoE budget (up to 600W of Class 4 or 480W of Class 6). Four 10G uplinks are fitted: 2 x 1/10G SFP+ and 2 x 1/10GBASE-T RJ-45. Switching capacity is 176 Gbps with a forwarding rate of 131 Mpps. It does not require a licence, and Instant On cloud management is included at no charge. It can also be managed through the local web GUI or SNMP.
The two SFP+ slots accept 1G and 10G SFP and SFP+ transceivers. The switch supports Instant On true stacking with other Instant On 1960 switches and is managed through the Aruba Instant On mobile app and cloud portal.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- True stacking for redundancy and simplified management of multiple switches as a single entity
- Four 10GbE uplinks: 2 x SFP+ and 2 x 10GBASE-T, with copper reach up to 100 m over Cat 6a
- Choice of local web GUI or Instant On mobile app and cloud portal management
- Class 4 (PoE+) on 40 ports and Class 6 (PoE++) on 8 ports for powering APs, cameras and phones
- Static IP routing for Layer 2+ deployments
- Auto Voice VLAN, LLDP-MED, LACP, STP, port mirroring, ACLs and EEE
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 48 x RJ-45 10/100/1000 PoE
- PoE classes: 40 ports Class 4 (PoE+), 8 ports Class 6 (PoE++)
- Uplink ports: 2 x 1/10G SFP+, 2 x 1/10GBASE-T RJ-45
- Total PoE budget: 600W (up to 480W Class 6 or 600W Class 4)
- Switching capacity: 176 Gbps
- Forwarding rate: 131 Mpps
- Processor: Single-core ARMv7 Cortex-A9, 800 MHz
- Latency (100 Mbps): 4.4 us
- Latency (1 Gbps): 2.2 us
- Latency (10 Gbps): 1.1 us
- MAC address table size: 16,000 entries
- Static routes: 32 IPv4 / 32 IPv6
- Jumbo frame support: 9216 bytes
- Stacking: Instant On true stacking
- Management: Instant On cloud and mobile app, web GUI, SNMP
- Input voltage: 100 - 240 VAC, 50/60 Hz
- Maximum power consumption: 790W (100-127 V), 760W (200-220 V)
- Idle power consumption: 60W (100-127 V), 100W (200-220 V)
- Operating temperature: 0 to 40 C, up to 10,000 ft
- Dimensions (D x W x H): 15.86 x 17.42 x 1.73 in
- Weight: 10.8 lb
- Form factor: 1U rack-mountable
FAQs
Q: Does this switch need a licence or subscription?
A: No licence is required. Instant On cloud management is included at no charge.
Q: How much PoE power does it provide?
A: The total PoE budget is 600W. That allows up to 600W of Class 4 (PoE+) or 480W of Class 6 (PoE++) devices, shared across the 48 ports.
Q: Which ports support Class 6 PoE++?
A: 8 of the 48 Gigabit ports support Class 6 PoE++. The other 40 ports support Class 4 PoE+.
Q: What can be fitted in the 10G uplink ports?
A: The two SFP+ slots accept 1G and 10G SFP and SFP+ transceivers. The two 10GBASE-T RJ-45 ports run at 1G or 10G over copper, up to 100 m on Cat 6a.
Q: Can it be stacked with other switches?
A: Yes. It supports Instant On true stacking with other Instant On 1960 switches, so the stack is managed as a single entity.
