Aruba

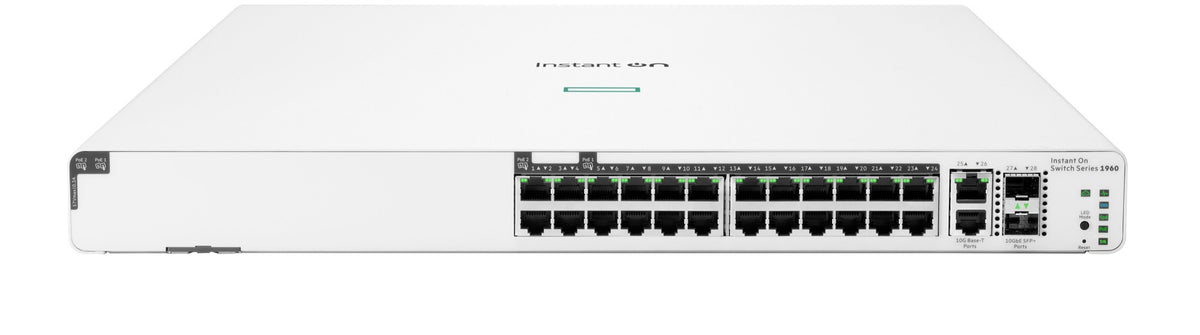

Aruba JL807A | Instant On 1960 24-Port PoE+ Switch, 370W, 2x 10G SFP+

SKU:JL807A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba Instant On 1960 is a smart-managed, stackable Layer 2+ Gigabit PoE switch built for small and growing businesses such as training centres and healthcare sites. It suits access-layer deployments that need to power access points, IP phones, surveillance cameras, door locks and other IoT devices, with simple management from the Instant On cloud app and portal or a local web GUI.

This model provides 24 Gigabit RJ-45 PoE ports, made up of 20 Class 4 (PoE+) ports and 4 Class 6 (PoE++) ports, sharing a 370W total PoE budget (up to 240W of Class 6 or 370W of Class 4). Uplinks are two 100/1000/10GBASE-T ports and two 10G SFP+ ports. Switching capacity is 128 Gbps with 95 Mpps throughput and a 16,000-entry MAC address table, and up to four 1960 switches can be stacked. No licence or subscription is required for Instant On cloud management.

It works with Instant On access points and stacks with other Instant On 1960 switches. The 1U chassis can be rack-mounted, wall-mounted, or placed on a table or under a desk.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud-managed stacking of up to four 1960 switches
- Managed via the Instant On mobile app and web portal or a local web GUI
- Class 4 (30W) and Class 6 (60W) PoE for access points, IP phones, cameras and IoT devices
- Two 10GBASE-T and two SFP+ 10G uplinks for servers, storage and switch interconnects
- QR-code tag for onboarding through the Instant On mobile app
- Plug-and-play operation with Instant On access points
- VLAN and access control support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x 10/100/1000 RJ-45 PoE (20 x Class 4, 4 x Class 6)
- Uplinks: 2 x 100/1000/10GBASE-T and 2 x 10G SFP+
- PoE budget: 370W total (up to 240W of Class 6 or 370W of Class 4)
- Switching capacity: 128 Gbps
- Throughput: 95 Mpps
- MAC address table: 16,000 entries
- Processor: Single core ARMv7 Cortex-A9 at 800MHz
- Stacking: up to 4 switches at 1G and 10G speeds
- Management: Aruba Instant On Cloud, web browser, SNMP
- Static routes: 32 IPv4 / 32 IPv6
- Latency (100 Mbps): 4.4 µs
- Latency (1 Gbps): 2.2 µs
- Latency (10 Gbps): 1.1 µs
- Input voltage: 100-240 VAC, 50/60 Hz
- Maximum power rating: 500W (100-127V), 480W (200-220V)
- Idle power: 40W (100-127V), 80W (200-220V)
- Dimensions (H x W x D): 44 x 442.5 x 350.5 mm
- Weight: 4.7 kg
- Mounting: 1U rack, wall, table-top or under-table

FAQs

Q: Does this switch need a licence or subscription?
A: No. Instant On cloud management is included at no additional cost, so no licence or subscription is required.

Q: How much PoE power does it provide?
A: The total PoE budget is 370W. That can supply up to 240W of Class 6 or 370W of Class 4 PoE across the 24 ports.

Q: Can it be stacked?
A: Yes. Up to four Instant On 1960 switches can be stacked, at 1G and 10G speeds.

Q: What can I connect to the uplink ports?
A: The two SFP+ slots take SFP+ transceivers, and the two 10GBASE-T ports connect over copper at 100/1000/10G speeds. 100FX transceivers are not supported.

Q: How is it managed?
A: You can manage it from the Instant On mobile app or web portal, a local web browser GUI, or an SNMP manager.
