Aruba

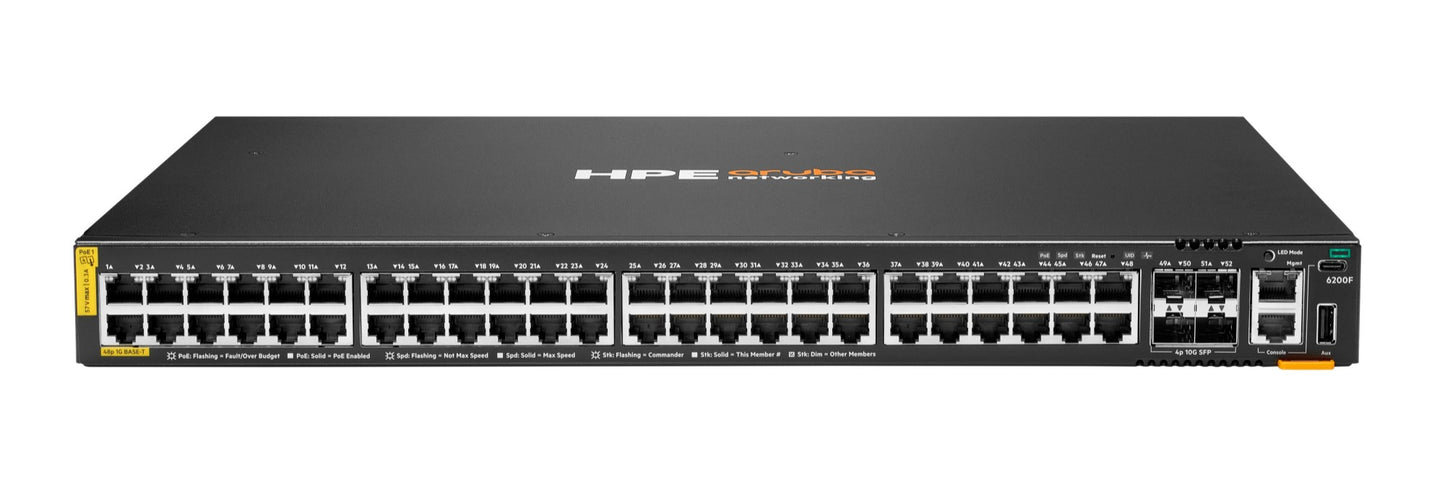

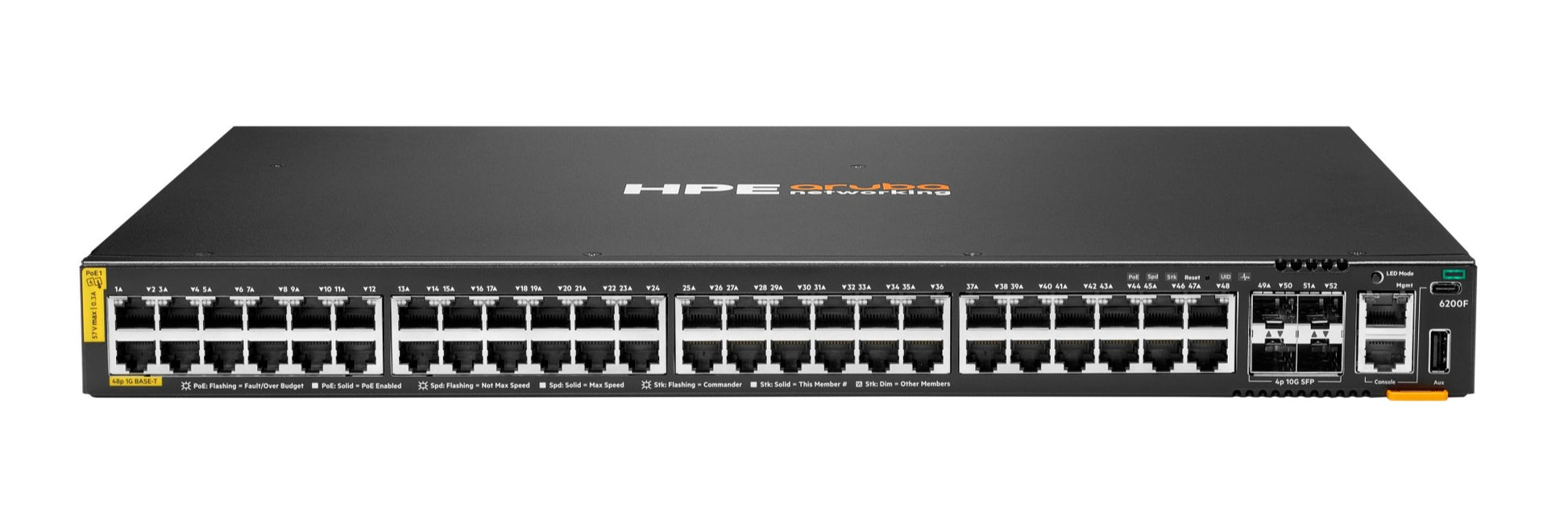

Aruba JL728B | CX 6200F 48-Port Gigabit PoE+ Switch, 740W, 4x 10G SFP+

JL728B

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6200F is a fixed-configuration, stackable 1U Layer 3 access switch running AOS-CX. It suits enterprise branch offices, campuses and SMB networks that need PoE+ for IP phones, wireless access points, cameras and IoT devices, with up to 30W per port.

This model has 48 Class 4 PoE+ 10/100/1000BASE-T ports and four 1G/10G SFP+ uplink ports. The fixed power supply delivers a 740W PoE budget, double the 370W provided by the JL727B version. Switching capacity is 176 Gbps with throughput of up to 130.9 Mpps, backed by 8 GB DDR4 memory, 16 GB eMMC flash and an 8 MB packet buffer.

Up to 8 members can be joined in a VSF stack with other 24 and 48-port CX 6200F and 6200M switches over the SFP+ uplinks, giving 40 Gbps of stacking bandwidth. Management is through the USB-C or RJ-45 console, the OOBM port, HPE Aruba Networking Central or the CX Mobile App. No licence is needed to run AOS-CX features.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs AOS-CX, a database-driven operating system with REST APIs and Python scripting
- Built-in Network Analytics Engine (NAE) for monitoring and troubleshooting
- VSF stacking of up to 8 switches in chain or ring topology
- Dynamic Segmentation with role-based policy for wired and wireless traffic
- Layer 3 routing with static routes, RIPv2/RIPng, OSPF (access) and OSPFv3
- Always-on PoE and Quick PoE keep devices powered during reboots and firmware upgrades
- Managed through HPE Aruba Networking Central (cloud or on-premises) or the CX Mobile App
- Energy Efficient Ethernet (IEEE 802.3az) and IPv6 dual stack support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000BASE-T Class 4 PoE
- Uplinks: 4 x 1/10G SFP+ (PHY-less)
- PoE standards: IEEE 802.3af, 802.3at, up to 30W per port
- PoE budget: up to 740W
- Switching capacity: 176 Gbps
- Throughput: up to 130.9 Mpps
- Average latency (64-byte): 3.3 us at 1 Gbps, 2.3 us at 10 Gbps
- CPU: Quad Core ARM Cortex A72 at 1.8 GHz
- Memory and flash: 8 GB DDR4, 16 GB eMMC
- Packet buffer: 8 MB (6 MB + 2 MB)
- Stacking: VSF, up to 8 members, 40 Gbps stacking bandwidth
- MAC table capacity: 32,768
- IPv4 unicast routes: 2,048
- IPv6 unicast routes: 1,024
- Management ports: 1x USB-C console, 1x RJ-45 console, 1x OOBM, 1x USB Type-A host
- Power supply: fixed internal AC, 100-120V/200-240V, 80 PLUS Gold
- Power consumption (230 VAC): 42W idle, 60W at 100% traffic
- Maximum heat dissipation: 205 BTU/hr
- Airflow: front and side to back, fixed fans
- Operating temperature: 0 to 45 C
- Operating relative humidity: 5% to 95% at 40 C non-condensing
- Dimensions (H x W x D): 4.37 x 44.25 x 32.66 cm
- Weight: 5.13 kg
- Mounting: 1U, 19-inch EIA rack

FAQs

Q: Does this switch need a licence to run AOS-CX?
A: No licence is needed to run AOS-CX features. Optional HPE Aruba Networking Central Foundation subscriptions and NetEdit/Switch Multi-Edit Software are available separately.

Q: How does the JL728B differ from the JL727B?
A: Both are 48-port CX 6200F switches with four SFP+ uplinks. The JL728B provides a 740W Class 4 PoE budget, while the JL727B provides 370W.

Q: Can I stack it with other switches?
A: Yes. It supports VSF stacking of up to 8 members with other 24 and 48-port CX 6200F and 6200M switches over the SFP+ uplinks, with up to 10 km distance using long-range transceivers.

Q: What can I use in the SFP+ uplink ports?
A: The four SFP+ ports accept 1G and 10G transceivers, for example the J9152D 10G LC LRM or the R9X54A and R9X55A 10G BiDi 40km modules.

Q: Are the power supply and fans replaceable?
A: No. The AC power supply and fans are fixed and not field-replaceable.
