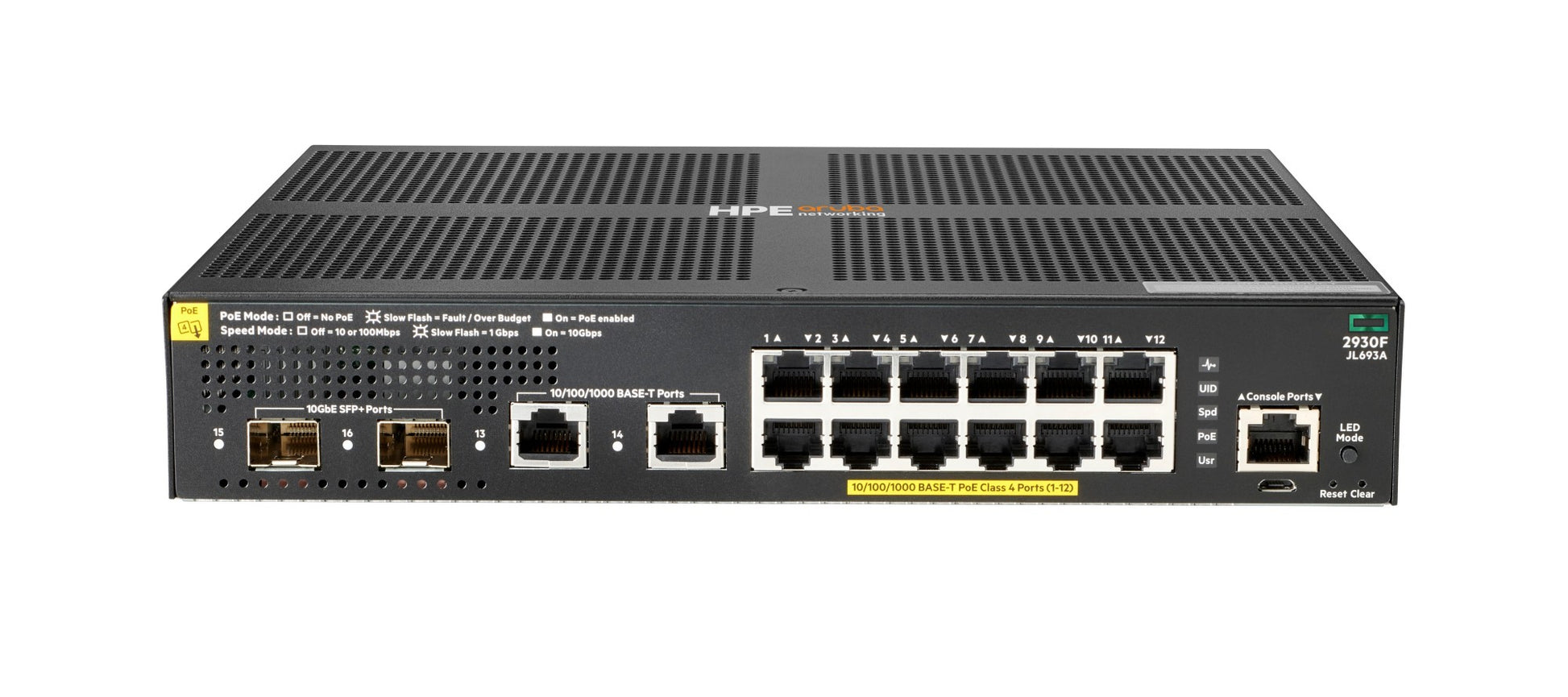

Aruba JL693A | 2930F 12-Port PoE+ Switch, 139W, 2x 10G SFP+
SKU:JL693A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Aruba 2930F 12G PoE+ is a compact, fanless access switch for small branch offices and campus edge closets. It suits locations where a quiet Layer 3 managed switch is needed to power Wi-Fi access points, IP cameras and VoIP phones.
It provides 12 autosensing 10/100/1000 PoE+ ports (802.3at, up to 30 W per port) from a 139 W PoE budget, plus 2 additional 10/100/1000 RJ-45 ports and 2 dual-speed 1G/10G SFP/SFP+ uplinks. Switching capacity is 68 Gbps with a forwarding rate of 41.7 Mpps. The switch runs ArubaOS-Switch, with static routing and RIP in the base software, ACLs for access security and VSF stacking to simplify management of multiple units. The base software is included, so no additional licence is needed for the L2+ and static L3 feature set. Aruba Central management is optional and needs a separate subscription.
The SFP/SFP+ ports accept 1G SFP and 10G SFP+ transceivers, and the switch works with Aruba Central, AirWave and ClearPass.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Built-in 1GbE and 10GbE uplinks with PoE+ for access deployments
- Fanless design for quiet operation in open office and edge environments
- Static routing and RIP in the base software image
- ACLs and access security with ClearPass Policy Manager integration
- VSF (Virtual Switching Framework) stacking to simplify management
- Management via Aruba Central, AirWave or the CLI and web interface
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- PoE+ ports: 12 x 10/100/1000 RJ-45 (802.3at, up to 30 W per port)
- Additional RJ-45 ports: 2 x 10/100/1000
- Uplinks: 2 x 1G/10G SFP/SFP+
- Total network ports: 16
- PoE power budget: 139 W
- Switching capacity: 68 Gbps
- Forwarding rate: 41.7 Mpps
- Processor: ARM Cortex-A9 at 1016 MHz
- Memory: 1 GB DDR3 SDRAM
- Dimensions (H x W x D): 43.9 x 254 x 254 mm
- Weight: 2.2 kg
- Input voltage: 90 to 264 VAC, 50/60 Hz
- Rated current: 1.7 A
- Maximum power rating: 170 W
- Idle power: 20 W
- Maximum heat dissipation: 68.2 BTU/hr
- Operating temperature: 0 to 45 C
- Storage temperature: -40 to 70 C
- Operating relative humidity: 15 to 95% non-condensing
- Cooling: Fanless
- Energy efficiency: DoE Level VI
FAQs
Q: Does the JL693A need a software licence?
A: No. Base ArubaOS-Switch software is included and covers the L2+ and static L3 feature set. Aruba Central management is optional and needs a separate subscription.
Q: How much PoE power does it provide?
A: It has a 139 W PoE+ budget shared across 12 ports, with up to 30 W per port under 802.3at.
Q: What can I connect to the SFP/SFP+ ports?
A: The 2 uplink ports take 1G SFP and 10G SFP+ transceivers, and they also carry VSF stacking links to other 2930F units.
Q: What power supply does it use?
A: It has an internal AC supply rated 90 to 264 VAC at 50/60 Hz, drawing up to 170 W at maximum and 20 W at idle.
Q: Can it be managed from the cloud?
A: Yes. It can be managed with Aruba Central, AirWave or the CLI and web interface. Aruba Central needs a separate subscription.
