Aruba J9984A | OfficeConnect 1820 48-Port Gigabit PoE+ Switch, 370W, 4x SFP
SKU:J9984A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

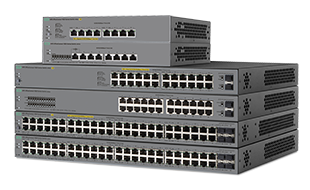

The OfficeConnect 1820 48G PoE+ is a web-managed Layer 2 Gigabit switch from the 1820 series, now branded Aruba 1820. It suits small business, branch office and SMB edge networks that need a basic managed PoE+ switch to power IP phones, wireless access points and IP cameras, with fibre uplinks and silent operation.
It provides 48 autosensing 10/100/1000 RJ-45 ports, 24 of which deliver IEEE 802.3at PoE+ from a 370 W budget, plus 4 SFP 100/1000 Mbps ports for uplinks. Switching capacity is 104 Gbps with throughput up to 77.3 Mpps, a 16000 entry MAC address table and a 1.5 MB packet buffer. The fanless design runs at 0 dB, and the switch is managed through a web browser interface. No licence or subscription is required.
The SFP slots accept HPE 1000BASE-SX, LX and T SFP transceivers. The 1U chassis can be rack mounted, or placed on a desktop, under a table or on a wall.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Web-managed Layer 2 switching through a browser interface
- 24 PoE+ ports powering phones, access points and cameras
- Fanless design for silent operation
- IEEE 802.1p/Q QoS prioritisation by traffic type
- Broadcast traffic control and customisable performance settings
- 4 SFP slots for fibre or copper Gigabit uplinks
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 24 x RJ-45 10/100/1000 PoE+
- Ports: 24 x RJ-45 10/100/1000 non-PoE
- Uplinks: 4 x SFP 100/1000 Mbps
- PoE budget: 370 W PoE+
- Switching capacity: 104 Gbps
- Throughput: up to 77.3 Mpps
- MAC address table: 16000 entries
- Processor: ARM Cortex-A9, 400 MHz
- Memory: 128 MB SDRAM
- Flash: 16 MB
- Packet buffer: 1.5 MB
- Latency: less than 7 µs at 100 Mb, less than 2 µs at 1000 Mb
- Management: web browser
- Input voltage: 100 - 127 / 200 - 240 VAC, 50/60 Hz
- Maximum power consumption: 481 W
- Dimensions (H x W x D): 44.25 x 32.26 x 4.39 cm (1U)
- Weight: 4.4 kg
- Acoustic: 0 dB (fanless)
- Operating humidity: 15 to 95% at 40 C
- Altitude: up to 3 km
FAQs
Q: Does this switch need a licence or subscription?
A: No. All features are available without a licence or subscription.
Q: How many ports provide PoE+?
A: 24 of the 48 RJ-45 ports supply IEEE 802.3at PoE+, sharing a 370 W total budget. The other 24 copper ports do not provide PoE.
Q: Which SFP transceivers does it accept?
A: The 4 SFP 100/1000 Mbps slots accept HPE 1000BASE-SX, 1000BASE-LX and 1000BASE-T SFP transceivers.
Q: Is it a Layer 3 switch?
A: No. It is a web-managed Layer 2 switch intended for basic managed access networks.
Q: How can it be mounted?
A: It is a 1U unit that fits a standard rack, and it can also sit on a desktop, under a table or on a wall.
