Aruba J9782A | 2530 24-Port Fast Ethernet Switch, 2x 1G + 2x SFP

J9782A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

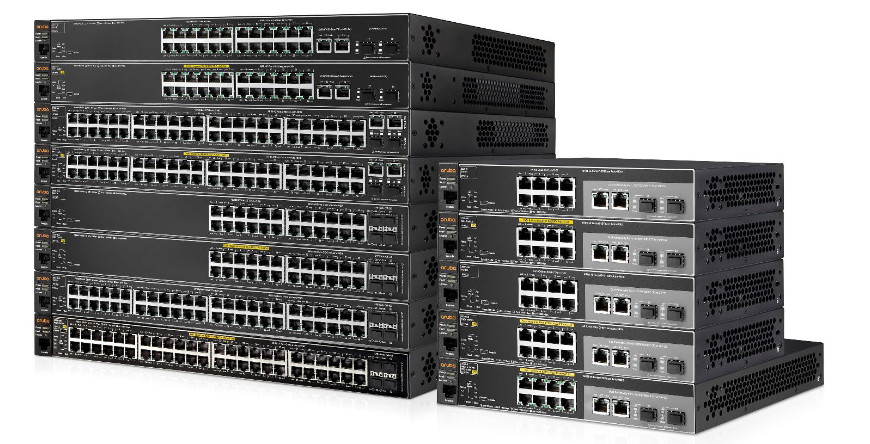

The Aruba 2530 24-port switch is a managed Layer 2 Fast Ethernet access switch with 24 10/100 ports, 2 dual-personality 10/100/1000 uplink ports and 2 fixed Gigabit SFP ports, without PoE. It suits SMB and branch networks needing reliable wired access with VLAN, QoS and link aggregation support. The fanless, 1U design and low power draw make it suitable for quiet office and wall or desktop deployments, and it can be managed through Aruba AirWave, Aruba Central, CLI or web browser.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 2 managed switching with VLAN support (512 VLANs, 4,094 VLAN IDs)
- Jumbo frame support up to 9,220 bytes
- IEEE 802.1p traffic prioritisation and QoS
- Port trunking and link aggregation (LACP)
- Energy Efficient Ethernet (802.3az) and fanless design
- Dual flash images and multiple configuration files
- IPv6 Ready certified
- Managed via Aruba AirWave, Aruba Central, CLI and web browser
- ClearPass integration for network security

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24 x RJ-45 autosensing 10/100 ports
- 2 x autosensing 10/100/1000 ports (dual-personality)
- 2 x fixed Gigabit Ethernet SFP ports
- 1 x dual-personality (RJ-45 or USB Micro-B) serial console port
- Switching capacity: 12.8 Gb/s
- Throughput: up to 9.5 Mpps (64-byte packets)
- MAC address table: 16,000 entries
- Latency: <1.1 µs (1000Mb), <1.7 µs (100Mb)
- Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3
- Packet buffer: 1.5 MB dynamically allocated
- 1U, 4.45 x 44.2 x 24.64 cm, 2.59 kg
- Idle power 8.4 W, max power 14.7 W
- Power: 100-127 / 200-240 V AC, 50/60 Hz
- Mounting: 19-inch rack, horizontal surface or wall

FAQs

Q: Does the Aruba J9782A support PoE?
A: No. This model is a non-PoE switch. Powered devices such as access points or IP phones need a separate power source or a PoE injector.

Q: What uplink options does it provide?
A: It has 2 dual-personality 10/100/1000 ports and 2 fixed Gigabit SFP ports, giving copper and fibre uplink options.

Q: Is this a Layer 2 or Layer 3 switch?
A: It is a Layer 2 managed switch with VLANs, QoS, link aggregation and jumbo frame support.

Q: How can the switch be managed?
A: It can be managed through Aruba AirWave, Aruba Central, the CLI or a web browser, and integrates with ClearPass for security.

Q: Is the switch fanless?
A: Yes. It uses a fanless design with Energy Efficient Ethernet support and a maximum power draw of 14.7 W, which suits quiet office environments.
