Vendor:Cisco
Cisco CVR-CPAK-QSFP40 | 40G LR4 adapter | CPAK to QSFP+ | 1310 nm | 10 km SMF | LC duplex | 40GBASE-LR4
CVR-CPAK-QSFP40
Vendor:CiscoCisco CVR-CPAK-QSFP40 | 40G LR4 adapter | CPAK to QSFP+ | 1310 nm | 10 km SMF | LC duplex | 40GBASE-LR4
Form-factor converter that enables platforms with CPAK cages to use QSFP+ 40G LR4 optics. Preserves the optical characteristics of the inserted QSFP+ LR4 module (1310 nm CWDM lanes, up to 10 km over SMF, LC duplex). Ideal for migrating CPAK-based ports to the QSFP+ optics ecosystem. -
Vendor:Cisco
Cisco CSP-SFP-1WSR | 10Gb SFP+ | 10GBASE-SR | 850nm | 300m OM3 / 400m OM4 | LC duplex
CSP-SFP-1WSR
Vendor:CiscoCisco CSP-SFP-1WSR | 10Gb SFP+ | 10GBASE-SR | 850nm | 300m OM3 / 400m OM4 | LC duplex
10GBASE-SR SFP+ transceiver for multimode fiber links, ideal for short-reach 10GbE connections in data center and campus networks. Standards-compliant module supports hot-swap and digital diagnostics for simplified operations. -
Vendor:Cisco
Cisco CSP-SFP-1WLR | 10G SFP+ | 10GBASE-LR | 1310nm | 10 km | LC duplex
SFP+ optical transceiver for 10 Gigabit Ethernet long-reach single-mode links. Supports 10GBASE-LR optics at 1310 nm wavelength for distances up to 10 km over SMF with LC duplex connectors. Ideal for campus and data center interconnects requiring stable, low-latency 10G backhaul. -
Vendor:Cisco
Cisco CPAK-10X10G-LR | 100G 10x10G LR | CPAK | 1310 nm SMF | 10 km | LC duplex
CPAK-10X10G-LR
Vendor:CiscoCisco CPAK-10X10G-LR | 100G 10x10G LR | CPAK | 1310 nm SMF | 10 km | LC duplex
Long-reach 100G optical module using 10×10G electrical lanes (CAUI-10) with LR optics over single-mode fiber. Ideal for core, distribution, and inter-building runs up to 10 km with LC duplex connectivity and multi-vendor interoperability. -
Vendor:Cisco
Cisco CPAK-10X10G-ERL | 100G 10x10G ER4-Lite | CPAK | 1310 nm LAN-WDM SMF | up to 40 km | LC duplex
CPAK-10X10G-ERL
Vendor:CiscoCisco CPAK-10X10G-ERL | 100G 10x10G ER4-Lite | CPAK | 1310 nm LAN-WDM SMF | up to 40 km | LC duplex
Extended-reach 100G ER4-Lite optical module in CPAK form factor, leveraging 10×10G electrical lanes (CAUI-10) and LAN-WDM optics for long-distance single-mode links. Typical deployments span metro/aggregation backbones with reach up to 40 km (host FEC may be required at maximum distance). -
Vendor:Cisco
Cisco CPAK-100GE-LR4 | 100GBASE-LR4 | CPAK | 1310 nm LAN-WDM SMF | 10 km | LC duplex | no OTN
CPAK-100GE-LR4
Vendor:CiscoCisco CPAK-100GE-LR4 | 100GBASE-LR4 | CPAK | 1310 nm LAN-WDM SMF | 10 km | LC duplex | no OTN
Long-reach 100G LR4 optical module in CPAK form factor for metro and campus backbone links. Uses LAN-WDM wavelengths over single-mode fiber up to 10 km with LC duplex connection; interoperates with IEEE 802.3ba LR4 optics. Note: no OTN (OTU4) support. -
Vendor:Cisco

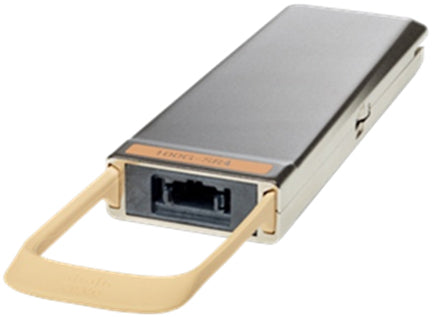

Cisco CPAK-100G-SR4 | 100GBASE-SR4 | CPAK | 850 nm MMF | 100 m (OM4) / 70 m (OM3) | MTP/MPO-12
CPAK-100G-SR4
Vendor:CiscoCisco CPAK-100G-SR4 | 100GBASE-SR4 | CPAK | 850 nm MMF | 100 m (OM4) / 70 m (OM3) | MTP/MPO-12
High-density 100G short-reach optical module in CPAK form factor for campus and data center aggregation. 4x25G parallel optics over OM3/OM4 multimode fiber with an MPO-12 connector, interoperable with other 100GBASE-SR4 optics. -
Vendor:Cisco
Cisco CPAK-100G-SR10 | 100G CPAK | 100GBASE‑SR10 | 850 nm | up to 100 m OM3 / 150 m OM4 | MPO‑24
CPAK-100G-SR10
Vendor:CiscoCisco CPAK-100G-SR10 | 100G CPAK | 100GBASE‑SR10 | 850 nm | up to 100 m OM3 / 150 m OM4 | MPO‑24
High‑density multimode SR10 parallel optic in CPAK form factor for short‑reach data center links. Operates at 850 nm over OM3/OM4 with MPO‑24, providing up to 100 m on OM3 or 150 m on OM4. Ideal for spine‑leaf fabrics and modular chassis backbones requiring many 100G short links with low power and simple cabling. -
Vendor:Cisco

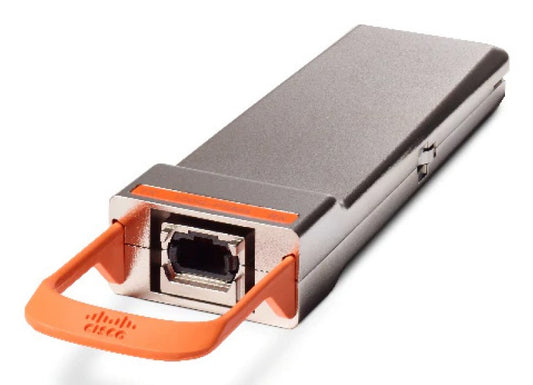

Cisco CPAK-100G-PSM4 | 100G CPAK | PSM4 | 1310 nm | up to 500 m SMF | MPO‑12
CPAK-100G-PSM4
Vendor:CiscoCisco CPAK-100G-PSM4 | 100G CPAK | PSM4 | 1310 nm | up to 500 m SMF | MPO‑12
Cost‑effective 100G PSM4 parallel single‑mode optic in CPAK form factor for short‑to‑medium SMF runs up to 500 m. Uses 8 fibers (4 Tx + 4 Rx) at 1310 nm via MPO‑12, ideal for leaf‑spine interconnects and campus aggregation with low power and tight link budgets. Digital diagnostics simplify operation and troubleshooting. -
Vendor:Cisco
Cisco CPAK-100G-LR4-BR | 100G CPAK | 100GBASE‑LR4 Breakout‑capable | 1310 nm | up to 10 km SMF | LC duplex | 10×10G LR breakout (with supported cable/host)
CPAK 100GBASE‑LR4 module enabling long‑reach single‑mode links up to 10 km with LC duplex. Breakout‑capable to 10×10GBASE‑LR on supported platforms using the appropriate breakout cable, enabling flexible migration between 10G and 100G. Ideal for aggregation uplinks and phased upgrades in campus and data centers. -
Vendor:Cisco
Cisco CPAK-100G-LR4-2K | 100G CPAK | 100GBASE‑LR4 | 1310 nm CWDM | up to 10 km SMF | LC duplex
CPAK-100G-LR4-2K
Vendor:CiscoCisco CPAK-100G-LR4-2K | 100G CPAK | 100GBASE‑LR4 | 1310 nm CWDM | up to 10 km SMF | LC duplex
High‑density 100GBASE‑LR4 optical module in CPAK form factor for long‑reach single‑mode links. Uses 4x25G CWDM lanes around 1310 nm to deliver up to 10 km reach over SMF with LC duplex connectivity. Ideal for core and aggregation uplinks in campus and data center networks, with digital diagnostics for easy monitoring. -
Vendor:Cisco
Cisco CPAK-100G-LR4 | 100G CPAK | 100GBASE-LR4 | 1310 nm LAN-WDM | 10 km SMF | LC duplex
CPAK-100G-LR4
Vendor:CiscoCisco CPAK-100G-LR4 | 100G CPAK | 100GBASE-LR4 | 1310 nm LAN-WDM | 10 km SMF | LC duplex
Standards-based 100G LR4 CPAK transceiver for 10 km single-mode links. Uses 4x 25G LAN-WDM channels around 1310 nm with LC duplex, ideal for campus core, aggregation, and short metro runs. -
Vendor:Cisco
Cisco CPAK-100G-FR | 100G CPAK | 100GBASE-CWDM4/CLR4 | 1310 nm CWDM | 2 km SMF | LC duplex
CPAK-100G-FR
Vendor:CiscoCisco CPAK-100G-FR | 100G CPAK | 100GBASE-CWDM4/CLR4 | 1310 nm CWDM | 2 km SMF | LC duplex
Short-reach 100G CWDM4/CLR4 CPAK optic designed for 2 km single-mode runs within and between data halls. Operates with 4x 25G CWDM lanes (1271–1331 nm) over LC duplex for straightforward SMF deployment; ideal when LR4 is not required. -
Vendor:Cisco
Cisco CPAK-100G-ER4L | 100G CPAK | 100GBASE-ER4-Lite | 1310 nm LAN-WDM | 25 km SMF | LC duplex
CPAK-100G-ER4L
Vendor:CiscoCisco CPAK-100G-ER4L | 100G CPAK | 100GBASE-ER4-Lite | 1310 nm LAN-WDM | 25 km SMF | LC duplex
Energy-efficient 100G ER4-Lite CPAK transceiver for extended single-mode links up to 25 km. Uses 4x 25G LAN-WDM channels around 1310 nm with LC duplex connectivity; FEC is recommended for optimal BER. Ideal for campus aggregation and metro access. -
Vendor:Cisco
Cisco CPAK-100G-ER4F | 100G CPAK | 100GBASE-ER4 (FEC) | 1310 nm LAN-WDM | 40 km SMF | LC duplex
CPAK-100G-ER4F
Vendor:CiscoCisco CPAK-100G-ER4F | 100G CPAK | 100GBASE-ER4 (FEC) | 1310 nm LAN-WDM | 40 km SMF | LC duplex
High-reach 100G ER4 optical module in CPAK form factor for metro and long campus links up to 40 km over single-mode fiber. Uses 4x 25G LAN-WDM lanes around 1310 nm with duplex LC for easy integration into existing SMF plant. Requires host FEC for standards-compliant performance over 40 km. -
Vendor:Cisco
Cisco CPAK-100G-CWDM4 | 100G | CPAK | CWDM4 MSA | 1271–1331 nm | 2 km SMF | LC duplex
CPAK-100G-CWDM4
Vendor:CiscoCisco CPAK-100G-CWDM4 | 100G | CPAK | CWDM4 MSA | 1271–1331 nm | 2 km SMF | LC duplex
High-density 100G CWDM4 optical module in CPAK form factor for long-reach campus and short metro links. Uses duplex LC over single-mode fiber for up to 2 km reach and interoperates with CWDM4 optics in other form factors.
