Cisco

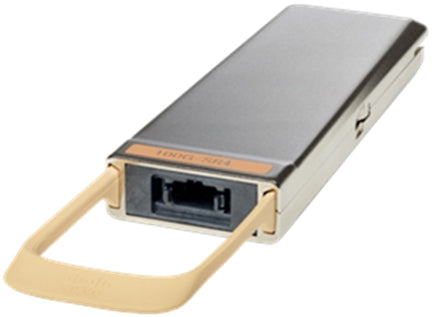

Cisco CPAK-100G-SR4 | 100GBASE-SR4 | CPAK | 850 nm MMF | 100 m (OM4) / 70 m (OM3) | MTP/MPO-12

SKU:CPAK-100G-SR4

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-density 100G short-reach optical module in CPAK form factor for campus and data center aggregation. 4x25G parallel optics over OM3/OM4 multimode fiber with an MPO-12 connector, interoperable with other 100GBASE-SR4 optics.

Features

- Standards-based 100GBASE-SR4 for broad interoperability
- High-density MPO-12 interface for simplified parallel optics cabling
- Optimized for short-reach data center and campus aggregation links
- Low-latency, 4×25G parallel lanes
- DOM/DDM for proactive monitoring and troubleshooting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Which fiber and connector does this module require?
A: Use OM3/OM4 multimode fiber with an MPO-12 (MTP-12) trunk and appropriate polarity/cassette.

Q: Is it interoperable with other vendors’ 100G SR4 optics?
A: Yes. It follows IEEE 802.3bm 100GBASE-SR4 and will interoperate with compliant SR4 modules over MMF with MPO-12.

Q: Does it support DOM/DDM monitoring?
A: Yes, it provides digital diagnostics for key optical parameters.

Q: Can I break out to 4×25G?
A: Interoperability at 4×25G is at the optical level; breakout depends on the switch/patching architecture, not the module alone.

Technical Specifications

- Form factor: CPAK
- Optical standard: 100GBASE-SR4 (IEEE 802.3bm)
- Data rate: 100 Gb/s (4×25G parallel)
- Wavelength: 850 nm
- Fiber type: Multimode (OM3/OM4)
- Reach: 70 m (OM3), 100 m (OM4)
- Connector: MTP/MPO-12 female
- Host electrical interface: CAUI-4 (4×25G)
- Digital diagnostics (DOM/DDM): Supported
- Operating environment: Commercial temperature range
