Blue Cable Co

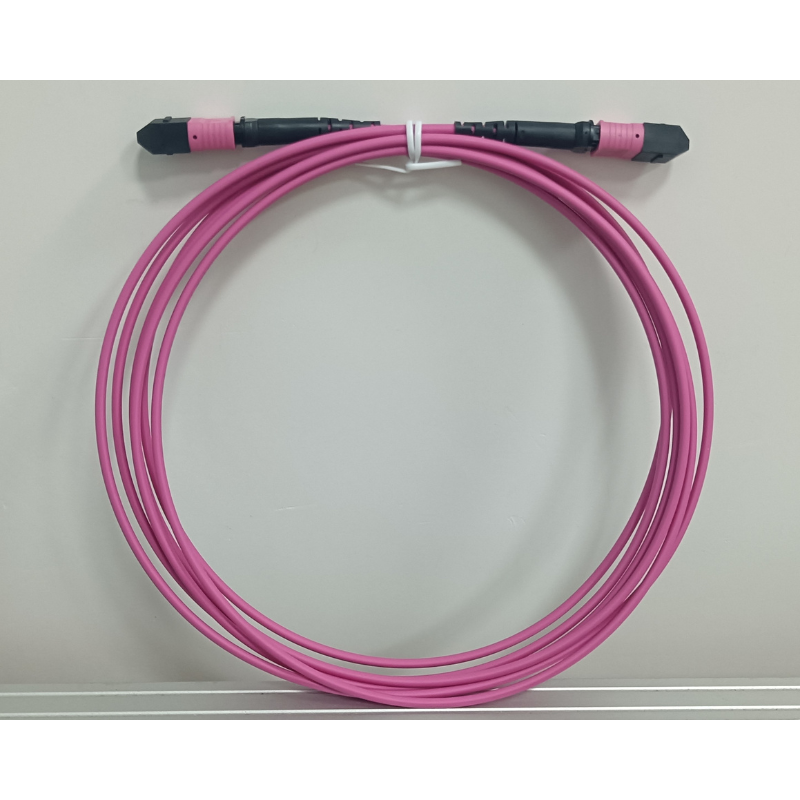

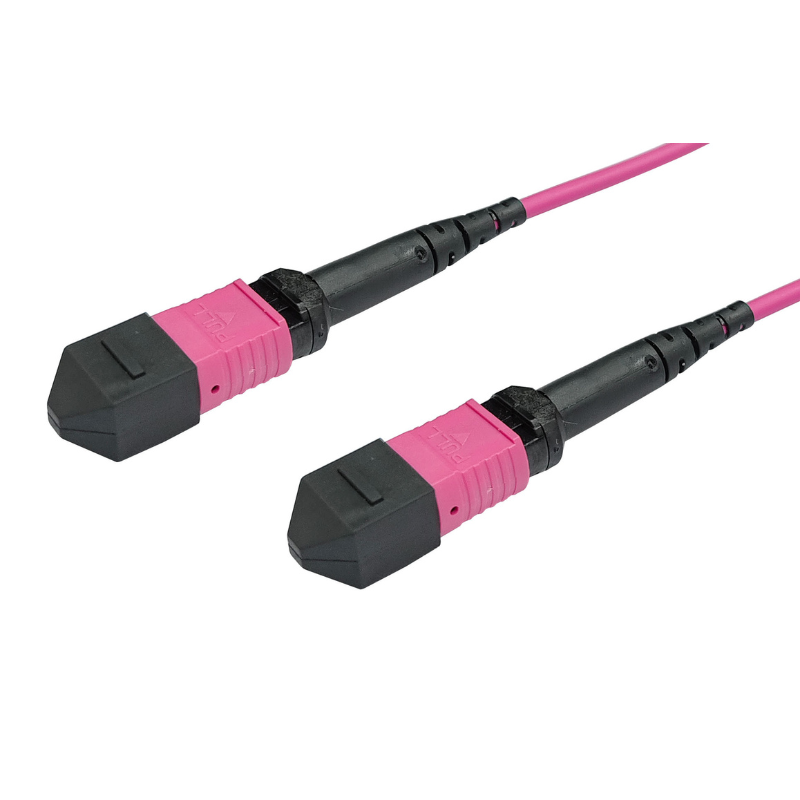

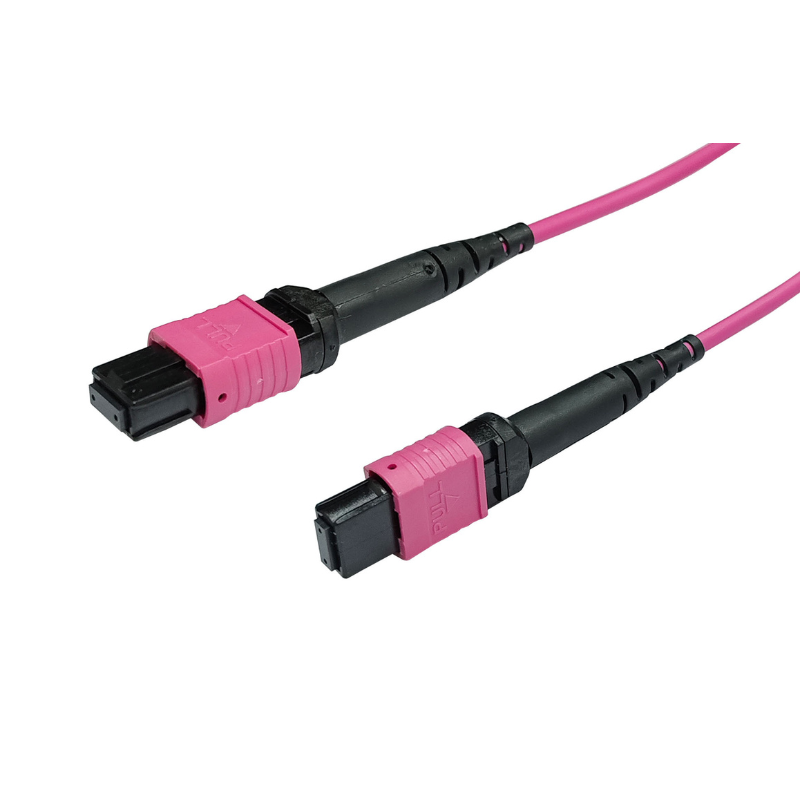

OM4 Multimode Fibre Optic Cable | MPO Female to MPO Female | Polarity B | 12 Core | 0.5 to 15 Meter

SKU:CAB0.5FOM4.MPOF/MPOF.B.LSZH.12C

Stock Status: Enquire

Regular price $50.05 AUD
Regular price
$50.05 AUD
$50.05 AUD
Regular price
Sale Sold out
Taxes included. Shipping calculated at checkout.
Length (Meters)
Compatibility

Description

Enhance your high-density network infrastructure with the OM4 Fibre Optic Cable from Blue Cable Co®. This MPO Female to MPO Female Polarity B cable is designed to support high-speed data transmission and simplify connectivity in enterprise and data center environments.

Key Features:

  • RCM Compliant & AS/CA S008:2020 Certified: Fully compliant with Australian standards, ensuring safe and reliable operation in mission-critical networks.
  • Standard Loss 0.7dB: Manufactured with precision to deliver consistent performance and minimize signal loss over distances.
  • Polarity B Configuration: Ensures seamless connection and compatibility with standard MPO equipment for streamlined installation.
  • High-Density Solution: With 12 Fibres (12F), this cable is ideal for connecting switches, patch panels, and MTP/MPO cassettes in space-constrained environments.
  • Optimised for Transceivers: Designed to work flawlessly with our transceivers for top-tier performance.
  • Durable LSZH Magenta Jacket: Low-smoke, zero-halogen (LSZH) construction ensures safety and easy identification in densely packed racks.
  • Eco-Friendly Packaging: Thoughtfully packaged in recyclable cardboard, an eco-conscious alternative to the single-use plastic bags often used by other suppliers.

Available in lengths ranging from 0.5m to 15m, this OM4 Polarity B MPO cable is the ideal choice for 40G and 100G applications in modern networks.

Choose Blue Cable Co® for premium quality, compliance, and a commitment to sustainability.

Features

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Replaces (older part numbers)

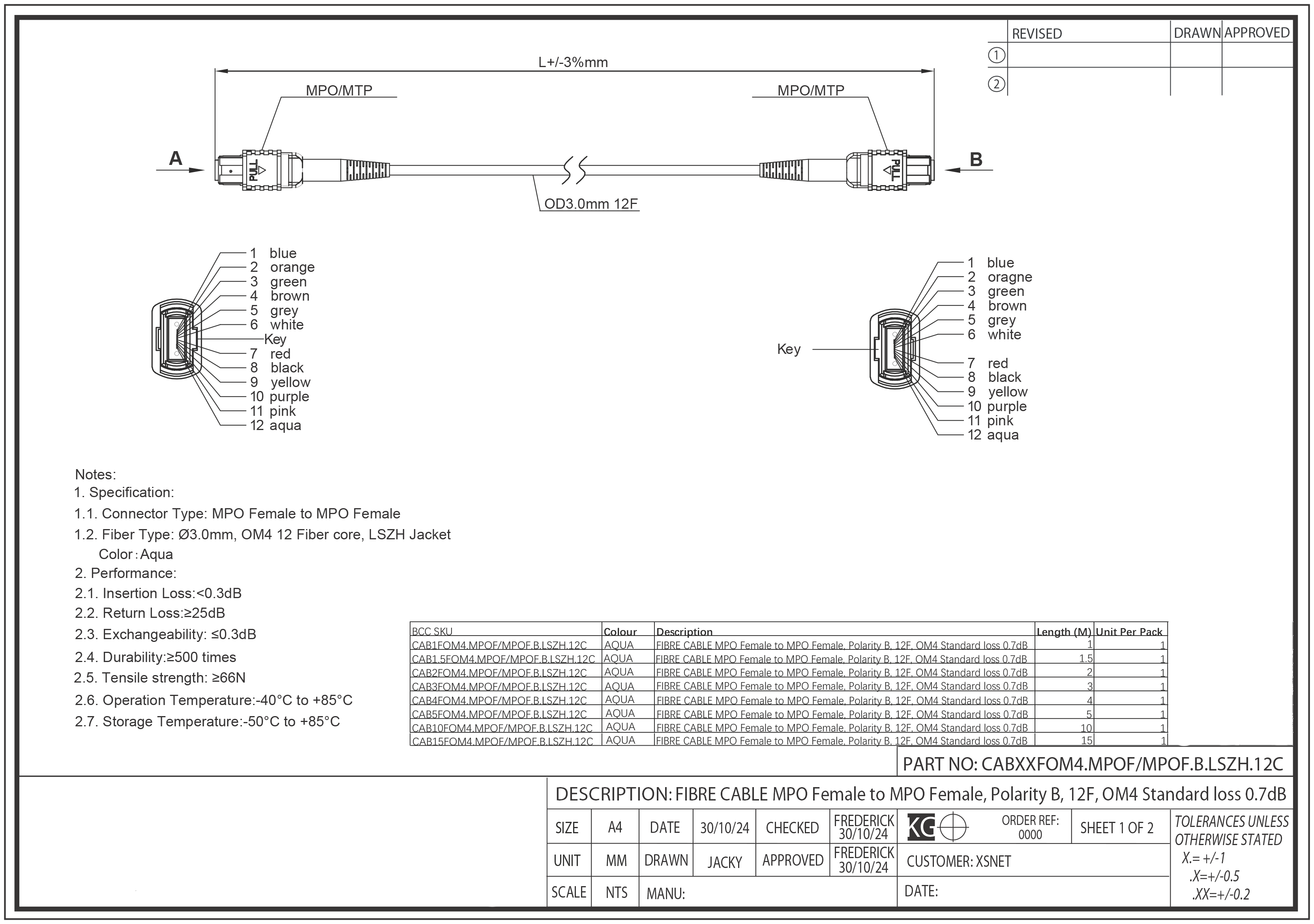

Datasheet

Find the Right Cable

Technical Specifications

Technical specifications – OM4 MPO/MTP Fibre Cable, MPO Female to MPO Female, 12F (Aqua)
Cable type: Multi-mode OM4 MPO/MTP trunk / patch cable
Connector type: MPO/MTP female to MPO/MTP female
Polarity: Type B (straight)
Fibre count: 12 fibres (12F)
Fibre type: OM4 multimode, 12-core
Cable outer diameter: 3.0 mm
Jacket: LSZH (Low Smoke Zero Halogen)
Jacket colour: Aqua
Insertion loss: < 0.3 dB
Standard loss reference: 0.7 dB (OM4 standard loss)
Return loss: ≥ 25 dB
Interchangeability / repeatability: ≤ 0.3 dB
Durability: > 500 mating cycles
Tensile strength: ≥ 66 N
Operating temperature: −40°C to +85°C
Storage temperature: −50°C to +85°C

Replaces (older part numbers)

Works anywhere OM1, OM2, or OM3 fibre is specified (backward compatible).
