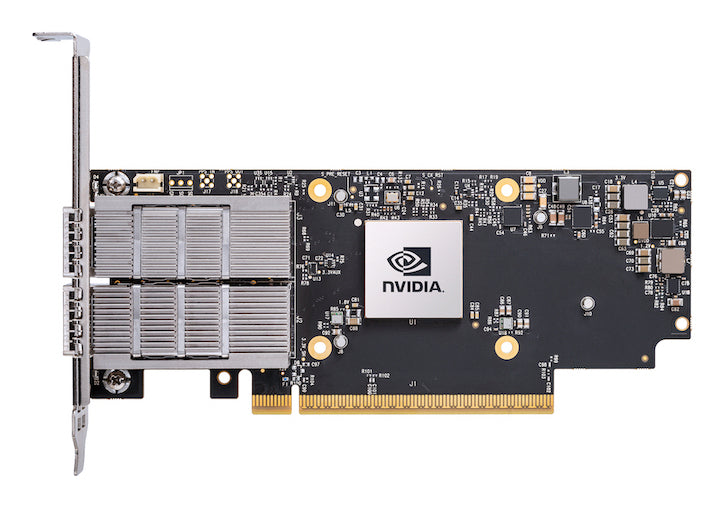

• NVIDIA ConnectX-7 black graphics card with gold accents and silver heatsinks
1 1

NVIDIA

NVIDIA 900-9X766-003N-SQ0 | ConnectX-7 Network Adapter, 400GbE/NDR IB, OSFP, PCIe 5.0

900-9X766-003N-SQ0

Stock Status: Enquire

$3,795.00 inc. GST
$3,450.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ConnectX-7 is a half-height, half-length network adapter card with a single OSFP port that runs 400Gb/s NDR InfiniBand by default or 400GbE, over a PCIe 5.0 x16 host interface. It supports RDMA for low latency and ASAP technology to accelerate software-defined networking, making it suited to high-performance computing, AI clusters and data centre fabrics. This variant ships with a tall bracket, crypto disabled and secure boot enabled.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- NDR 400Gb/s InfiniBand and 400GbE in a single card
- RDMA for low latency and high performance
- ASAP technology accelerates software-defined networking
- NVIDIA SHARP support
- Supports Linux, Windows and VMware

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Single OSFP port, InfiniBand and Ethernet (VPI)
- InfiniBand (default mode): NDR/NDR200/HDR/HDR100/EDR/FDR/SDR
- Ethernet: 400/200/100/50/40/10/1 Gb/s
- PCI Express Gen 4.0/5.0, SERDES @ 16/32GT/s, x16 lanes (Gen 3.0 compatible)
- Form factor: PCIe half height, half length, 2.71 in. x 6.6 in. (68.90mm x 167.65mm)
- Crypto disabled, secure boot enabled
- Tall bracket included
- OSFP cage is RHS (Riding Heatsink) only
- Legacy OPN: MCX75310AAS-NEAT; PSID MT_0000000838
- RoHS compliant

FAQs

Q: Does this card run InfiniBand or Ethernet?
A: It is a VPI card with a single OSFP port. It defaults to NDR 400Gb/s InfiniBand and can also operate as 400GbE Ethernet.

Q: What host interface does it use?
A: It uses a PCI Express x16 interface supporting Gen 4.0 and Gen 5.0 at 16/32GT/s, and is Gen 3.0 compatible.

Q: Which bracket is included and what is the card size?
A: A tall bracket is included. The card is half height, half length, measuring 2.71 in. x 6.6 in. (68.90mm x 167.65mm).

Q: What type of OSFP cage does it have?
A: The OSFP cage is RHS (Riding Heatsink) only, so compatible optics or cables must be selected for that cage type.

Q: Is crypto enabled on this variant?
A: No. This variant has crypto disabled and secure boot enabled.
