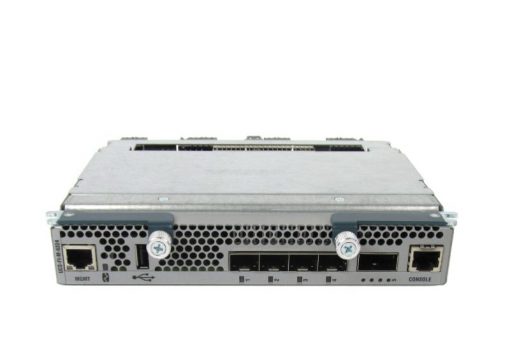

Cisco UCS-FI-M-6324 | UCS 6324 In-Chassis Fabric Interconnect, 4x SFP+, 40G
SKU:UCS-FI-M-6324
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS 6324 is a fabric interconnect that installs inside the Cisco UCS 5108 blade chassis, part of the UCS 6300 Series (UCS Mini). It suits small or edge UCS deployments of up to 20 servers, giving integrated blade and direct-connect rack server networking, LAN and SAN access, and management without external fabric interconnects.
This in-chassis FI provides 16 x 10GBASE-KR internal server-facing lanes, 4 x unified SFP+ ports that run 1/10GbE, FCoE or Fibre Channel, and 1 x 40GbE QSFP+ scalability port. Switching throughput is up to 500 Gbps with latency under one microsecond. The module draws 80 W and is powered from the UCS 5108 AC2 or DC2 chassis power supplies. It runs Cisco UCS Manager release 3.0 or later, and the 40G QSFP+ port needs a separate port licence (UCS-6324-40G) before it can be used.
It installs in the UCS 5108 AC2 and DC2 chassis, with one or two identical FIs per chassis. It works with Cisco SFP and SFP+ modules such as SFP-10G-SR, SFP-10G-LR, GLC-SX-MM and GLC-LH-SM, SFP-H10GB-CU twinax cables, DS-SFP-FC4G and DS-SFP-FC8G Fibre Channel SFPs, and QSFP-40G-SR4 on the QSFP+ port.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Managed by Cisco UCS Manager, giving a single highly available management domain
- Unified fabric using FCoE to consolidate LAN and SAN traffic onto one fabric
- Low-latency, cut-through, lossless 10GbE architecture
- Priority Flow Control (PFC) support
- Cisco Data Center VM-FEX support for virtualisation-aware networking
- All SFP+ ports can be configured for 1GbE operation
- Two FIs can be clustered inside one chassis for high availability with independent firmware upgrades
- Integrates with UCS Central and UCS Director
- Out-of-band management via a 10/100/1000 Mbps Ethernet port
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: I/O module for Cisco UCS 5108 blade chassis
- Server ports: 16 x 10GBASE-KR lanes
- Unified SFP+ ports: 4 (1/10GbE, FCoE or FC)
- Scalability port: 1 x 40GbE QSFP+
- Throughput: 500 Gbps (Layer 2 hardware forwarding, 375 mpps)
- Latency: Less than 1 microsecond
- QoS hardware queues: 16 (8 unicast, 8 multicast)
- MAC address table entries: 20,000
- VLANs / VSANs: Up to 512 VLANs and 32 VSANs per interconnect
- Jumbo frames: Up to 9216 bytes
- Fibre Channel SFP+ support: 2/4/8 Gbps FC
- Rack servers supported: 7 with a single UCS 5108 chassis, 4 with a second UCS 5108 chassis
- Dimensions (H x W x D): 194 x 34.5 x 183 mm
- Weight: 1.134 kg
- Power consumption: 80 W
- Operating temperature: 0 to 35 C
- Non-operating temperature: -40 to 70 C
- Humidity: 5 to 95% (non-condensing)
- Minimum software: Cisco UCS Manager release 3.0 or later
- Compliance: RoHS 6
FAQs
Q: Does the 40G QSFP+ port need a licence?
A: Yes. The 40G QSFP+ scalability port is not enabled by default and needs a separate port licence (UCS-6324-40G) for each 6324 FI that uses it.
Q: What power does the UCS 6324 need?
A: It draws 80 W and is powered from the UCS 5108 AC2 or DC2 chassis power supplies. It has no separate power supply.
Q: Which chassis and software does it work with?
A: It installs in the UCS 5108 AC2 and DC2 blade chassis, with one or two identical FIs per chassis. It requires Cisco UCS Manager release 3.0 or later.
Q: Which optics and cables can I use in the unified ports?
A: The SFP+ ports support GLC-TE, GLC-SX-MM, GLC-LH-SM, SFP-10G-SR, SFP-10G-LR, SFP-H10GB-CU twinax cables and DS-SFP-FC4G or DS-SFP-FC8G Fibre Channel SFPs. The QSFP+ port supports QSFP-40G-SR4.
Q: Can I connect C-Series rack servers to it?
A: Yes, direct-connect support for UCS C-Series rack servers is provided through the QSFP+ scalability port. A C-Series server cannot be integrated with UCS Manager using a 6324 together with a VIC 1400 series adapter.
