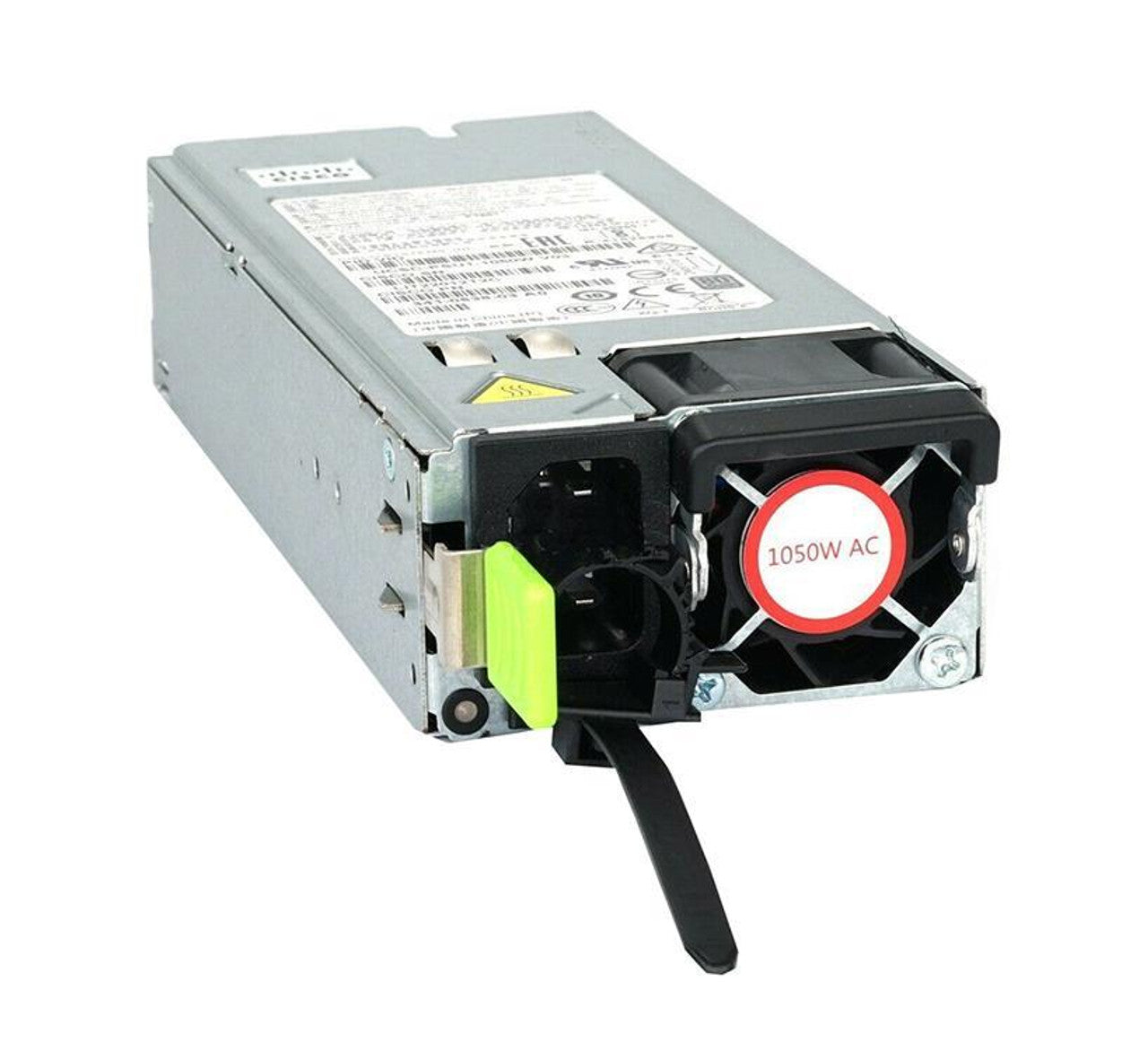

• Cisco UCSC-PSU1-1050ELV 1050W AC PSU with black silver design and red label
1 1

Cisco

Cisco UCSC-PSU1-1050ELV | UCS C-Series 1050W AC Power Supply, ELV 110VAC, Platinum

UCSC-PSU1-1050ELV

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 1050W AC power supply is built for Cisco UCS C-Series M6 rack servers. It is the Enhanced Low Line (ELV) variant, intended for sites and data centres running 110 VAC low-line mains input, and it carries 80 PLUS Platinum efficiency.

The module is hot-plug and tool-less, so it can be fitted without tools in M6 C-Series servers. Input is via an IEC320 C14 connector, and power cords rated to 125V are supported for PSUs rated 1050W or less. Maximum rated output is 800W at low-line input (100 to 127 V) and 1050W at high-line input. Maximum rated standby output is 36W, with a minimum rated power factor of 0.97 and a minimum ride-through time of 12 ms.

It is listed as a power supply option for the UCS C240 M6 and the same PSU family is used across M6 C-Series servers such as the C220, C240 and C245. Both PSUs in a dual-PSU server must be identical, and 1+1 redundancy is supported. This part is not EU/UK Lot 9 compliant.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-plug, tool-less installation in M6 C-Series servers
- 80 PLUS Platinum efficiency for reduced power losses
- Supports 1+1 power redundancy in dual-PSU servers
- Enhanced Low Line variant suited to 110 VAC mains environments
- Power can be right-sized using the Cisco UCS power calculator
- Supports power cords rated to 125V for PSUs rated 1050W or less

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Rated power: 1050W AC
- Variant: Enhanced Low Line (ELV), 110 VAC input
- Efficiency rating: 80 PLUS Platinum
- Installation: Hot-plug, tool-less
- Input connector: IEC320 C14
- Input voltage range: 100 to 240 V rms (max allowable 90 to 264 V rms)
- Frequency range: 50 to 60 Hz (max allowable 47 to 63 Hz)
- Maximum rated output: 800W at low-line input (100 to 127 V), 1050W at high-line
- Maximum rated standby output: 36W
- Nominal input current: 9.2 A (100 V), 7.6 A (120 V), 5.8 A (208 V), 5.2 A (230 V)
- Minimum rated efficiency: 90% (100/120/208 V), 91% (230 V)
- Minimum rated power factor: 0.97
- Maximum inrush current: 15 A peak, 0.2 ms
- Minimum ride-through time: 12 ms
- Redundancy: 1+1 supported, both PSUs must be identical
- Regulatory: Not EU/UK Lot 9 compliant
- Spare PID: UCSC-PSU1-1050ELV=

FAQs

Q: Which servers does this power supply work with?
A: It is listed as a power supply option for the Cisco UCS C240 M6, and the same PSU family is used across UCS M6 C-Series servers such as the C220, C240 and C245.

Q: What input voltage is it designed for?
A: This Enhanced Low Line variant is intended for low-line 110 VAC input environments. Output is rated at 800W at 100 to 127 V input and 1050W at higher line voltage.

Q: Can I mix this with a different power supply in the same server?
A: No. Both PSUs in a dual-PSU server must be identical. With two matching units, 1+1 power redundancy is supported.

Q: What power cord does it need?
A: The input connector is IEC320 C14. Use power cords rated to 125V or higher. It is not compatible with the 2300W PSU connector or cords.

Q: Is it compliant for use in the EU or UK?
A: No. This part is not EU/UK Lot 9 compliant, as only Titanium PSUs may ship to the EU, EEA, UK and Switzerland from 1 January 2024.
