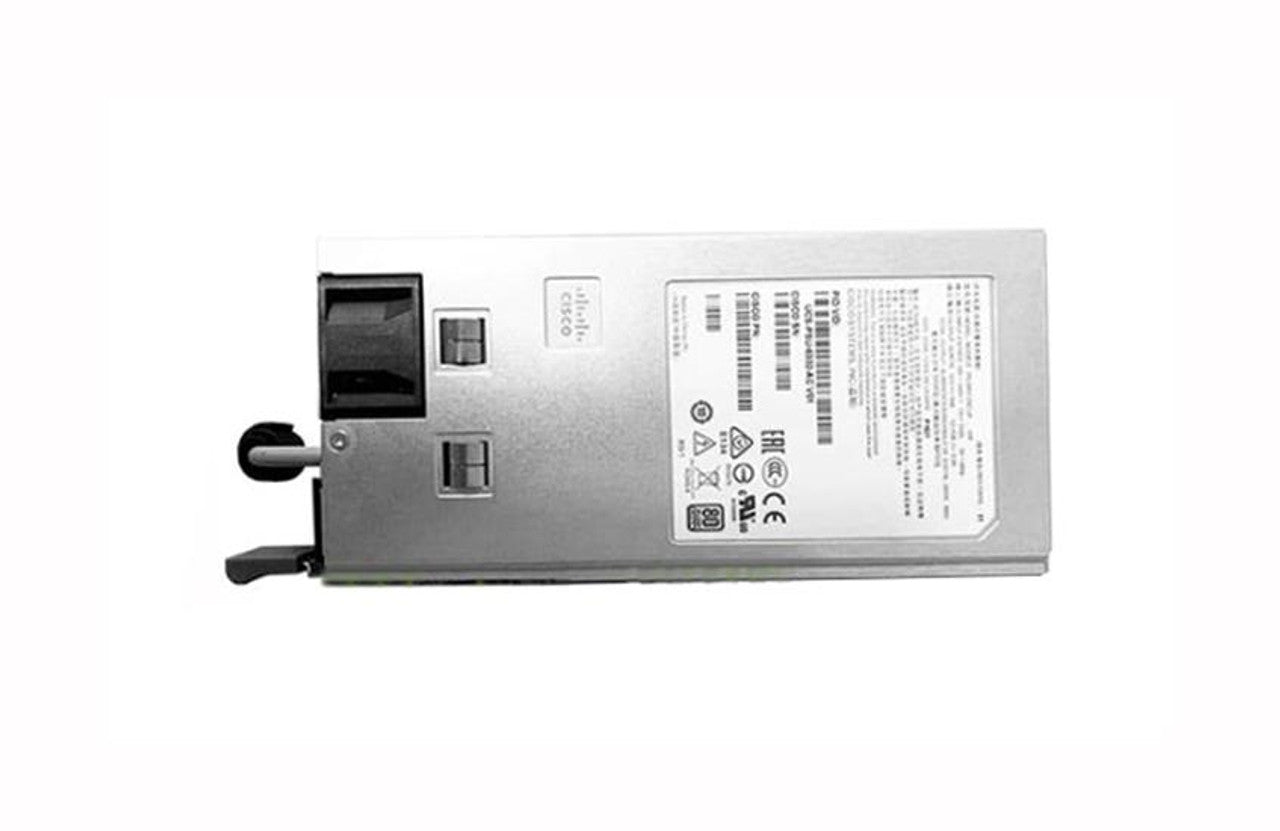

• Cisco UCS-PSU-6332-AC-D 650W AC PSU with black handle
1 1

Cisco

Cisco UCS-PSU-6332-AC-D | UCS 6300/6400 650W AC Power Supply, 100-240VAC

UCS-PSU-6332-AC-D

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS-PSU-6332-AC-D is a hot-swappable 650W AC power supply module for Cisco UCS 6332, 6332-16UP and UCS 6454 fabric interconnects. It suits data centre Cisco Unified Computing System deployments that need redundant AC power for the fabric interconnect layer.

It accepts 100-240VAC input and delivers up to 650W of output at 12VDC, with a 12VDC standby rail. Maximum input current is 7.6A at 100VAC and 3.65A at 208VAC, with a maximum holdup time of 12ms at 50% load. Efficiency is Climate Savers Platinum, with 80Plus Platinum certification. This is the AC variant, so it is the choice for sites running mains-fed racks rather than the -48VDC supply used by UCS-PSU-6332-DC.

Two identical supplies are installed in the chassis for 1+1 redundancy, and AC and DC supplies cannot be mixed within the same fabric interconnect. The same ordering part number serves both the UCS 6300 Series and the UCS 6454.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable, field-replaceable power supply
- Supports 1+1 power redundancy in the fabric interconnect
- One ordering part number covers UCS 6300 Series and UCS 6454 fabric interconnects
- Platinum-level efficiency
- RoHS compliant

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Maximum output per power supply: 650W
- Input voltage (AC): 100 to 240 VAC
- Maximum AC input current: 7.6A at 100 VAC, 3.65A at 208 VAC
- Frequency: 50 to 60 Hz
- Maximum holdup time: 12 ms at 50% load
- Output voltage: 12 VDC
- Standby voltage: 12 VDC
- Hot swappable: Yes
- Efficiency rating: Climate Savers Platinum (80Plus Platinum certified)
- RoHS compliance: Yes
- Storage temperature: -40 to 85 C
- Operating temperature (UCS 6454 chassis): 0 to 40 C
- Non-operating temperature (UCS 6454 chassis): -40 to 70 C
- Relative humidity, noncondensing (UCS 6454 chassis): 5 to 95%
- Operating altitude (UCS 6454 chassis): 0 to 3000 m
- Typical operating power of UCS 6332 chassis with this PSU: 212W
- Maximum power of UCS 6332 chassis: 650W

FAQs

Q: Which fabric interconnects does this power supply fit?
A: It fits the Cisco UCS 6332, UCS 6332-16UP and UCS 6454 Fabric Interconnects.

Q: How many power supplies does a fabric interconnect need?
A: Two identical supplies are installed in the chassis to provide 1+1 power redundancy.

Q: Can I mix this AC supply with the DC version?
A: No. AC and DC supplies cannot be mixed in the same fabric interconnect. The DC counterpart is UCS-PSU-6332-DC, which uses -48VDC input.

Q: What input voltage does it accept?
A: It accepts 100 to 240 VAC, with a maximum input current of 7.6A at 100 VAC and 3.65A at 208 VAC.

Q: Can it be replaced while the fabric interconnect is running?
A: Yes. The supply is hot-swappable, so one unit can be replaced while the other keeps the chassis powered.
