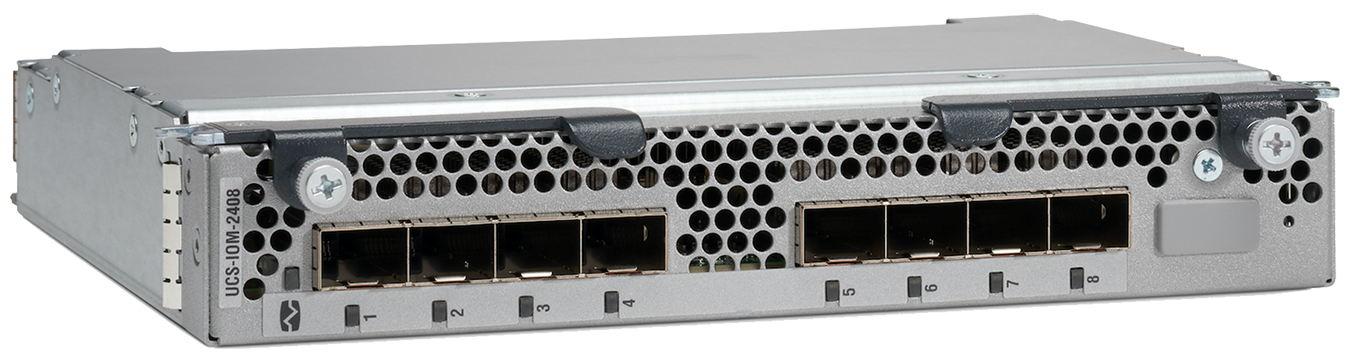

• Cisco UCS-IOM-2408 chassis I/O module with 32x 10G lanes and 8x 25G SFP28 uplinks
1 1

Cisco

Cisco UCS-IOM-2408 | UCS 2408 Fabric Extender, 8x 25G SFP28, 32x 10G

UCS-IOM-2408

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS 2408 is a fourth-generation fabric extender (I/O Module) for the Cisco UCS 5108 blade server chassis, part of the UCS 2400 Series. It brings the unified fabric into the chassis, connecting the blade servers to the fabric interconnect without a switch in each chassis. It is managed as an extension of the fabric interconnect through Cisco UCS Manager or Cisco Intersight, and suits data centres running UCS blade domains on 25G uplinks.

Each module provides eight 25 Gigabit Ethernet FCoE-capable SFP28 external ports for uplinks to the fabric interconnect, and 32 internal 10G server-facing interfaces to the blades through the chassis midplane. Hardware forwarding is 1.04 Tbps, and two modules in a chassis give up to 400 Gbps of I/O per chassis to a UCS 6400 series or 6536 fabric interconnect. Up to two modules fit per chassis for redundancy, with an active/active data plane and failover. Maximum power consumption is 160 W, drawn from the chassis.

The module connects to the UCS 6454, 64108 (at 25 Gbps only) and 6536 Fabric Interconnects. Supported transceivers are SFP-25G-SR-S, SFP-10/25G-LR-S, SFP-10/25G-CSR-S and SFP-25G-SL, with DAC and AOC cables for short runs.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Managed through Cisco UCS Manager or Cisco Intersight, with no chassis management modules needed
- Firmware levels synchronise automatically with the fabric interconnects
- Unified fabric carries LAN, SAN and management traffic over one connection
- Automatic failover with an active/active data plane
- Lossless fabric using Priority Flow Control
- Fabric ports can be bundled into a port channel
- SFP28 ports support copper Twinax for short runs and fibre for long runs
- Part of Cisco SingleConnect technology

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: UCS-IOM-2408
- External ports: 8 x 25 Gigabit Ethernet, FCoE-capable, SFP28
- Internal ports: 32 x 10G interfaces to the blade servers via the chassis midplane
- Performance: hardware forwarding at 1.04 Tbps
- Aggregate bandwidth: up to 400 Gbps of I/O per chassis with two fabric extenders
- Chassis: Cisco UCS 5108, up to 2 per chassis
- VLANs: Layer 2 VLAN trunks, IEEE 802.1Q, up to 1024 VLANs and VSANs
- Jumbo frames: up to 9216 bytes on all ports
- Flow control: IEEE 802.3x pause frames and Priority Flow Control
- QoS: 802.1p CoS, strict-priority egress queuing, WRR scheduling, 16 hardware queues per port
- Fabric interconnect support: UCS 6454, 64108 (25 Gbps only) and UCS 6536
- Maximum power consumption: 160 W
- Dimensions (H x W x D): 7.64 x 1.36 x 7.2 in
- Weight: 2.8 lb (1.134 kg)
- Operating temperature: 0 to 40 C
- Non-operating temperature: -40 to 70 C
- Humidity: 5 to 95% non-condensing
- Altitude: 0 to 3000 m
- Standards: IEEE 802.1p, 802.1Q, 802.1Qaz, 802.3, 802.3ad (LACP), 802.3by (25GbE), DCBX
- RoHS: RoHS-5 compliant

FAQs

Q: Does the UCS 2408 need a separate licence?
A: No separate licence is stated for the module. It is managed through Cisco UCS Manager or Cisco Intersight.

Q: Which chassis does the UCS 2408 fit?
A: It fits the Cisco UCS 5108 Blade Server Chassis (UCS 5100 Series), with up to two modules per chassis for redundancy.

Q: Which fabric interconnects does it connect to?
A: It connects to the UCS 6454, 64108 and 6536 Fabric Interconnects. With the 64108 it runs at 25 Gbps only.

Q: Which optics and cables work with the 25G ports?
A: Supported transceivers are SFP-25G-SR-S, SFP-10/25G-LR-S, SFP-10/25G-CSR-S and SFP-25G-SL. Supported cables are SFP-H25G-CU DAC, SFP-25G-AOC and, with the UCS 6536 only, QSFP-4SFP25G-CU breakout cables.

Q: How much power does it draw?
A: Maximum power consumption is 160 W. It is powered from the UCS 5108 chassis and has no separate power supply.
