NVIDIA MCX755106AC-HEAT | ConnectX-7 Dual-Port 200GbE Adapter, Crypto, Tall Bracket
SKU:MCX755106AC-HEAT
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

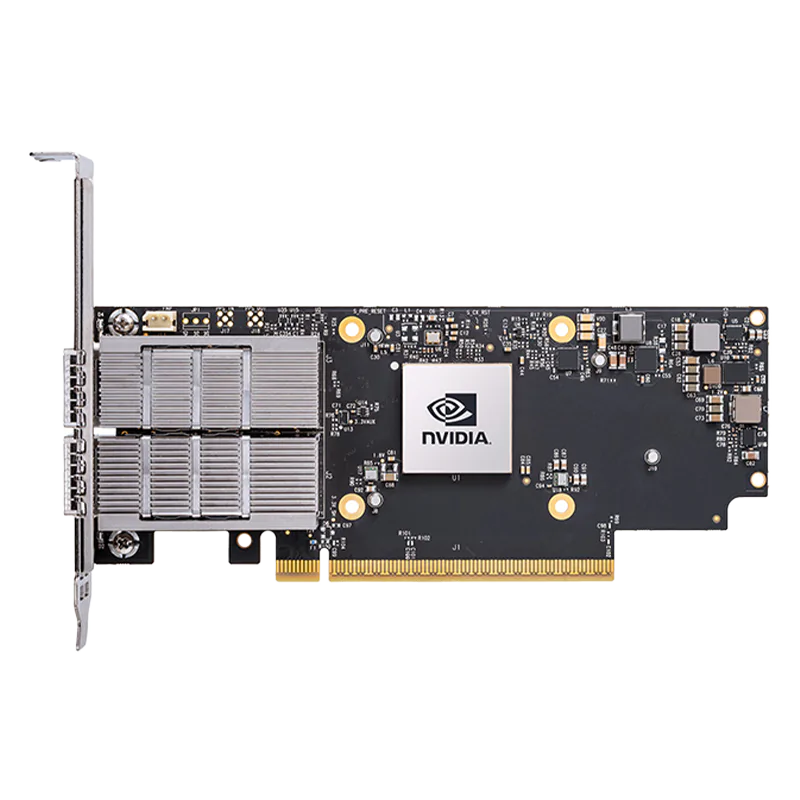

The ConnectX-7 is a half-height, half-length PCIe 5.0 x16 network adapter with two QSFP112 ports, built for cloud, hyperscale and enterprise data centres, AI and HPC clusters, software-defined networking and high-performance storage. This SKU has crypto and secure boot enabled and ships with a tall bracket.
Each port runs Ethernet at 200, 100, 50, 25 or 10 Gb/s in the default mode, or InfiniBand from SDR up to NDR200. The host interface is PCIe Gen 5.0 x16, backward compatible with Gen 4.0 and 3.0, and the card is Socket Direct ready through an optional PCIe x16 Gen 4.0 auxiliary connection. Typical power draw is 25.9 W with passive cables in PCIe Gen 5.0 x16. No separate licence or subscription is required for the crypto and secure boot functions on this SKU.
The QSFP112 cages take DAC and optical cabling, and the card works with InfiniBand and Ethernet fabrics. Hardware offloads cover RoCE, GPUDirect, GPUDirect Storage, NVMe-oF, overlay networks and inline IPsec, TLS and MACsec encryption.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hardware-accelerated networking, storage and security for cloud, AI and enterprise workloads
- NVIDIA ASAP2 accelerated switching and packet processing for SDN and VNF offload
- RoCE and Zero Touch RoCE, with GPUDirect and GPUDirect Storage
- Inline hardware IPsec, TLS and MACsec encryption (AES-GCM 128/256-bit)
- Data-at-rest AES-XTS 256/512-bit encryption and decryption
- Secure boot with hardware root-of-trust and secure firmware update
- NVMe-oF target offloads and NVMe-oF over TCP/RoCE acceleration
- Overlay acceleration for VXLAN, GENEVE and NVGRE, plus SR-IOV and VirtIO
- PTP (IEEE 1588v2) with 12 ns accuracy, SyncE and PPS in/out
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 2 x QSFP112 (InfiniBand and Ethernet)
- Ethernet speeds: 200/100/50/25/10 Gb/s (default mode)
- InfiniBand speeds: NDR200/HDR/HDR100/EDR/FDR/SDR
- Host interface: PCIe Gen 5.0 x16 (Gen 4.0/3.0 compatible)
- Optional extra PCIe: additional x16 Gen 4.0 via auxiliary card (Socket Direct ready)
- Form factor: Half Height, Half Length (HHHL), tall bracket
- Card size: 2.71 in. x 6.6 in. (68.90 mm x 167.65 mm)
- Crypto: Enabled
- Secure boot: Enabled
- InfiniBand protocol: IBTA v1.5a with auto-negotiation
- Voltage: 12V, 3.3VAUX
- Maximum current: 100mA
- Typical power: 25.9 W (passive cables, PCIe Gen 5.0 x16)
- Operating temperature: 0 to 55 C
- Non-operating temperature: -40 to 70 C
- Operating humidity: 10% to 85% relative humidity
- Operating altitude: 3050 m
- Safety: CB / cTUVus / CE
- EMC: CE / FCC / VCCI / ICES / RCM / KC
- RoHS: Compliant
FAQs
Q: Does this adapter need a separate licence for crypto or secure boot?
A: No separate licence or subscription is required. Crypto and secure boot are enabled on this SKU.
Q: How does this model differ from the MCX755106AS-HEAT?
A: This MCX755106AC-HEAT has crypto enabled, while the MCX755106AS-HEAT has crypto disabled. Both are dual-port QSFP112 PCIe 5.0 x16 cards.
Q: What PCIe slot does it need?
A: It uses a PCIe Gen 5.0 x16 slot and is backward compatible with Gen 4.0 and 3.0 slots. An optional auxiliary connection card adds a further PCIe x16 Gen 4.0 link for Socket Direct configurations.
Q: Does it run InfiniBand as well as Ethernet?
A: Yes. The dual QSFP112 ports support Ethernet up to 200GbE and InfiniBand from SDR up to NDR200.
Q: How much power does it draw?
A: Typical power is 25.9 W with passive cables in PCIe Gen 5.0 x16. It is powered from the PCIe slot at 12V and 3.3VAUX.
