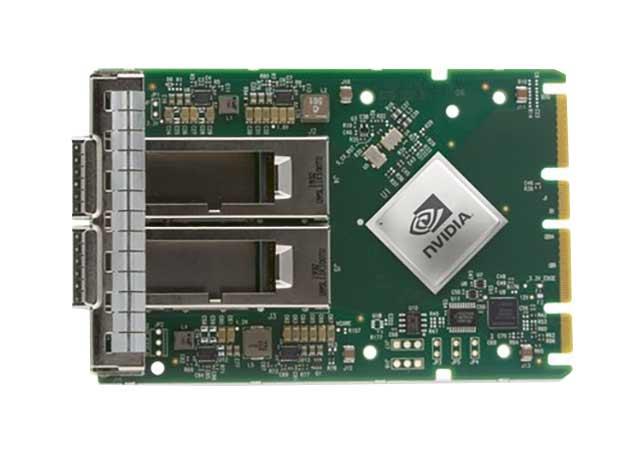

NVIDIA MCX653436A-HDAB | ConnectX-6 VPI Dual-Port HDR/200GbE OCP 3.0 Adapter

SKU:MCX653436A-HDAB

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ConnectX-6 VPI is a dual-port 200Gb/s network adapter built in the OCP 3.0 small form factor. Each port can run either HDR InfiniBand or 200GbE, so the same card suits both fabric types. It is aimed at enterprise data centre and HPC servers that need low-latency, high-bandwidth connectivity in an OCP slot.

This variant has two QSFP56 ports, a PCIe Gen 3.0 / 4.0 x16 host interface and host management support. InfiniBand speeds run from SDR through to HDR and HDR100, and Ethernet speeds cover 10, 25, 40, 50, 100 and 200 Gb/s. Retention is by pull tab (thumbscrew), which separates it from the internal lock and ejector latch versions of the same adapter. The card measures 115.00mm x 76.00mm.

It fits OCP Spec 3.0 SFF server slots and connects to a BMC over NC-SI, MCTP over SMBus or MCTP over PCIe. Use QSFP56 or QSFP28 compatible cables and optics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- InfiniBand Architecture Specification v1.3 compliant, with HDR (200Gb/s) and HDR100 (100Gb/s) support
- Ethernet up to 200GbE with IEEE 802.3 compliance, all FEC modes, 802.1Q VLAN, PFC, ETS, QCN, IEEE 1588v2 and 9.6KB jumbo frames
- RDMA and RoCE for low-latency transport over Layer 2 and Layer 3 networks
- NVGRE and VXLAN overlay network hardware offload, plus OVS offload using ASAP2
- NVIDIA PeerDirect (GPU RDMA) for direct GPU-to-network transfers
- NVMe over Fabrics target offload and storage acceleration
- SR-IOV and hardware-based I/O virtualisation with port-based QoS
- NC-SI and MCTP sideband support for BMC management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Part number: MCX653436A-HDAB
- NVIDIA SKU: 900-9X657-0058-SB0
- Network connectors: 2 x QSFP56
- Speed per port: up to 200Gb/s (HDR InfiniBand / 200GbE)
- InfiniBand data rates: SDR/DDR/QDR/FDR/EDR/HDR100/HDR
- Ethernet data rates: 10/25/40/50/100/200 Gb/s
- Host interface: PCIe Gen 3.0 / 4.0 x16, SERDES at 8.0GT/s / 16.0GT/s
- Form factor: OCP Spec 3.0 Small Form Factor (SFF)
- Dimensions: 4.52 in. x 2.99 in (115.00mm x 76.00mm)
- Retention mechanism: Pull Tab (Thumbscrew)
- Host management: Yes
- Sideband management: NC-SI, MCTP over SMBus and MCTP over PCIe
- Device ID: 4123 (PF), 4124 (VF)
- EEPROM: 32Kbit, FRU I2C address 0x50 via PCIe SMBus
- Flash: 256Mbit SPI Quad
- IC part number: MT28908A0-XCCF-HVM
- RoHS: Compliant

FAQs

Q: Can each port run InfiniBand or Ethernet?
A: Yes. This is a VPI adapter, so each port can run HDR InfiniBand or Ethernet at up to 200GbE.

Q: Which server slot does this card fit?
A: It fits OCP Spec 3.0 small form factor slots and uses a PCIe Gen 3.0 / 4.0 x16 host interface.

Q: What cables and optics does it use?
A: The two QSFP56 ports take QSFP56 or QSFP28 compatible cables and optics.

Q: How does this version differ from the other MCX653436A variants?
A: The -HDAB uses a pull tab (thumbscrew) retention mechanism. The -HDAI uses an internal lock and the -HDAE uses an ejector latch.

Q: Does it support BMC management?
A: Yes. It supports host management and connects to a BMC over NC-SI, MCTP over SMBus or MCTP over PCIe.
