NVIDIA 980-9I58F-00N020 | LinkX 20m SMF MPO12 APC Fibre Cable, NDR/400G/800G

Name: NVIDIA 980-9I58F-00N020 | LinkX 20m SMF MPO12 APC Fibre Cable, NDR/400G/800G
Brand: NVIDIA
SKU: 980-9I58F-00N020
Price: 236.56 AUD
Availability: BackOrder

SKU:980-9I58F-00N020

Stock Status: Enquire

$236.56 inc. GST

$215.05 ex. GST

Sale Sold out

Shipping calculated at checkout.

Quantity

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

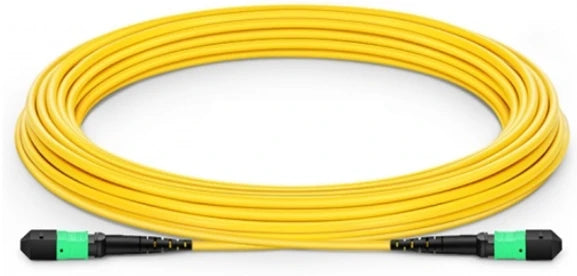

This 20 m single-mode passive fibre cable terminates in MPO-12 APC connectors at both ends and is validated for NDR InfiniBand and 400/800GbE links. It interconnects single-mode OSFP and QSFP112 transceivers in AI, HPC and data centre fabrics. The single-mode, APC-to-APC construction at 20 m distinguishes it from the shorter and multimode MPO trunk options in the LinkX range.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Validated for NDR InfiniBand, 400GbE and 800GbE links
- Passive cable for interconnecting single-mode dual-port OSFP, single-port OSFP and QSFP112 transceivers
- MPO-12 APC connectors at both ends
- Single-mode fibre suited to longer data centre runs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Length: 20 m
- Connectors: MPO-12 APC to MPO-12 APC, female to female
- Fibre type: single-mode (SMF / OS2 9/125 µm)
- Polarity: Type B
- Jacket: LSZH, yellow
- Data rate: NDR InfiniBand / 400GbE / 800GbE
- Cable type: passive
- Legacy part number: MFP7E30-N020

FAQs

Q: What connectors does this cable use?
A: It has MPO-12 APC connectors on both ends, female to female, on single-mode fibre.

Q: Is this cable single-mode or multimode?
A: It is single-mode (OS2 9/125 µm). It must be paired with single-mode optics and is not compatible with multimode transceivers.

Q: Which transceivers can it connect?
A: It is a passive cable used between single-mode dual-port OSFP, single-port OSFP and QSFP112 transceivers.

Q: Which link speeds is it designed for?
A: It is validated for NDR InfiniBand and 400GbE / 800GbE links.
