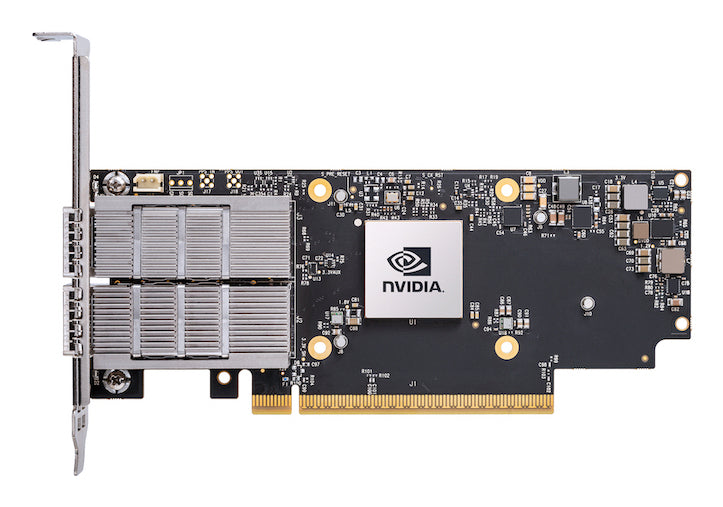

NVIDIA 900-9X721-003N-DT0 | ConnectX-7 400G NDR Single-Port OSFP Adapter Card
SKU:900-9X721-003N-DT0
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The ConnectX-7 is a single-port 400Gb/s NDR InfiniBand host channel adapter for HPC and AI/ML clusters and data-centre InfiniBand fabrics that need 400Gb/s connectivity to each server. It is a half-height, half-length PCIe card with one OSFP cage and a tall bracket.
The host interface is PCIe Gen 5.0 x16, backward compatible with PCIe 4.0 and 3.0 slots. This SKU is Socket Direct ready, so an additional PCIe x16 Gen 4.0 connection can be added through an auxiliary card with Cabline SA-II Plus harnesses. The OSFP port auto-negotiates NDR, NDR200, HDR, HDR100, EDR, FDR and SDR rates. Secure Boot is enabled and crypto is disabled on this variant. Typical power draw is 24.9 W with passive cables in PCIe Gen5 x16.
It takes OSFP cables and modules. The Socket Direct auxiliary PCIe card and harnesses are separate parts. No licence or subscription is required for the hardware.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 400Gb/s NDR InfiniBand connectivity on a single OSFP port
- PCIe Gen5 host interface with optional Socket Direct extension
- Hardware-accelerated networking, storage, security and management offloads
- In-network computing and RDMA acceleration for HPC and AI workloads
- SR-IOV support
- Secure Boot enabled
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 1 x OSFP, InfiniBand NDR 400Gb/s
- Data rates: NDR/NDR200/HDR/HDR100/EDR/FDR/SDR
- Protocol support: InfiniBand IBTA v1.5a
- Host interface: PCIe Gen 5.0/4.0 x16, SERDES @ 16/32GT/s (4.0 and 3.0 compatible)
- Optional: additional PCIe x16 Gen 4.0 via auxiliary card (Socket Direct)
- Form factor: PCIe Half Height, Half Length
- Card size: 68.90 mm x 167.65 mm
- Auxiliary card size: 129.30 mm x 59.00 mm
- Bracket: Tall
- Security: Secure Boot enabled, Crypto disabled
- Voltage: 12V, 3.3V AUX
- Maximum current (3.3V AUX): 100 mA
- Typical power: 24.9 W (passive cables, PCIe Gen5 x16)
- Operating temperature: 0 to 55 C
- Non-operating temperature: -40 to 70 C
- Operating humidity: 10% to 85% relative humidity
- Operating altitude: 3050 m
- Safety: CB / cTUVus / CE
- EMC: CE / FCC / VCCI / ICES / RCM / KC
- RoHS: Compliant
FAQs
Q: Does this adapter need a licence or subscription?
A: No. The hardware needs no licence or subscription. Crypto is disabled on this SKU.
Q: What does Socket Direct ready mean for this card?
A: The card can be paired with an auxiliary PCIe card and Cabline SA-II Plus harnesses to add a second PCIe x16 Gen 4.0 connection. The auxiliary card and harnesses are sold separately.
Q: Will it work in a PCIe 4.0 or 3.0 slot?
A: Yes. The card uses a PCIe Gen 5.0 x16 interface and is backward compatible with PCIe 4.0 and 3.0 slots.
Q: What cables or modules does it use?
A: It has a single OSFP cage and takes OSFP cables and modules for NDR 400Gb/s links.
Q: How much power does it draw?
A: Typical power draw is 24.9 W with passive cables in PCIe Gen5 x16, drawn from the 12V and 3.3V AUX supplies of the PCIe slot.
