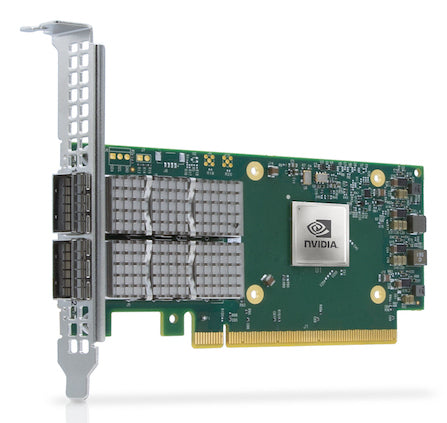

NVIDIA 900-9X6AG-0048-ST0 | ConnectX-6 Dx 200GbE QSFP56 Adapter, Crypto, Tall
SKU:900-9X6AG-0048-ST0
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The ConnectX-6 Dx is an Ethernet SmartNIC built for cloud and data-centre servers that need high-throughput connectivity with security offload. This single-port model provides one QSFP56 port running at up to 200GbE, with inline crypto offload and Secure Boot support, so encryption work can be moved off the host CPU.
The card connects to the host through a PCIe 4.0 x16 interface, which is backwards compatible with PCIe 3.0, 2.0 and 1.1 slots. It supports Ethernet speeds of 1, 10, 25, 40, 50, 100 and 200GbE, driven by 50Gb/s PAM4 or 25/10Gb/s NRZ SerDes. Virtual switch (vSwitch) offloads help with virtualised and multi-tenant deployments. This SKU is supplied with a tall bracket and corresponds to part number MCX623105AC-VDAT.
The card works with QSFP56 DAC, AOC and optical cables and splitters for 200GbE and 100GbE links, and this SKU appears on the firmware compatible-products list.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Single port of up to 200Gb/s Ethernet connectivity
- Powered by 50Gb/s (PAM4) or 25/10Gb/s (NRZ) SerDes technology
- Virtual switch (vSwitch) offloads
- Inline crypto offload to reduce host CPU load
- Secure Boot support
- PCIe Gen 4.0 host connectivity
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number (OPN): MCX623105AC-VDAT
- Ports: 1 x QSFP56
- Data rate: 200/100/50/25/10/1 GbE
- Host interface: PCIe Gen 4.0 x16, backwards compatible with 3.0, 2.0 and 1.1
- SerDes: 50Gb/s PAM4 or 25/10Gb/s NRZ
- Crypto: Yes
- Secure Boot: Yes
- Bracket: Tall
- Card dimensions: 5.59 in x 2.71 in (approx. 142.0 mm x 68.9 mm)
FAQs
Q: Does this adapter include crypto offload and Secure Boot?
A: Yes. This SKU is the crypto-enabled variant with Secure Boot support.
Q: What PCIe slot does it need?
A: It uses a PCIe 4.0 x16 host interface and is backwards compatible with PCIe 3.0, 2.0 and 1.1 slots.
Q: What cables and optics work with the QSFP56 port?
A: The port works with QSFP56 DAC, AOC and optical cables and splitters for 200GbE and 100GbE links.
Q: Which bracket does this SKU use?
A: This SKU is the tall bracket variant. It is the single-port 200GbE QSFP56 model with part number MCX623105AC-VDAT.
Q: What Ethernet speeds does it support?
A: It supports 1, 10, 25, 40, 50, 100 and 200GbE.
