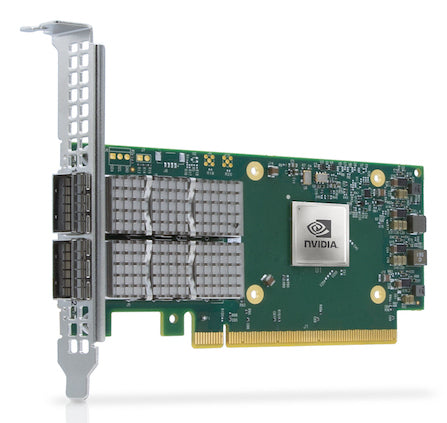

NVIDIA 900-9X6AG-0016-ST0 | ConnectX-6 Dx 100GbE QSFP56 Network Adapter, No Crypto
SKU:900-9X6AG-0016-ST0
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The ConnectX-6 Dx is a single-port 100GbE SmartNIC built on a PCIe 4.0 x16 host interface. It suits cloud, virtualised and secure data-centre deployments where servers need high-bandwidth Ethernet connectivity with hardware offloads for virtual switching and routing.
This model has one QSFP56 port that accepts both copper and optical connections, with Ethernet data rates from 1GbE through to 100GbE. It is the No Crypto variant, so the inline encryption engines and Secure Boot are disabled, and it ships with a tall bracket. The card measures 142.00 mm x 68.90 mm and operates from 0 C to 55 C. Typical power draw is 15.67 W on PCIe Gen 3.0 or 16.48 W on PCIe Gen 4.0 with passive cables, with a maximum of 22 W.
It works with QSFP56, QSFP28 and QSFP+ copper DAC and optical modules for 100GBASE-CR4/SR4, 50G and 40G, plus 10/25G through breakout cables. The PCIe interface is backward compatible with Gen 3.0, 2.0 and 1.1 slots, and drivers are available for Linux (MLNX_OFED), Windows (WinOF-2) and VMware ESXi.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hardware acceleration of virtual switch (vSwitch) and virtual router (vRouter) functions
- 50Gb/s PAM4 SerDes with PCIe Gen 4.0 host connectivity
- Complies with IEEE 802.3 standards from 1GbE to 100GbE, including all FEC modes for 25/50GbE
- Link aggregation (802.3ad/802.1AX)
- VLAN tagging and priority (802.1Q/802.1P)
- Supports 100GBASE-CR4, 100GBASE-SR4, 50GBASE-R2/R4, 40GBASE and 25GBASE-R Ethernet protocols
- Supported on Linux (MLNX_OFED), Windows (WinOF-2) and VMware ESXi
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number (OPN): MCX623105AN-CDAT
- NVIDIA SKU: 900-9X6AG-0016-ST0
- Ports: 1 x QSFP56, copper and optical
- Ethernet data rates: 1/10/25/40/50/100 Gb/s
- Host interface: PCIe Gen 3.0/4.0 x16, SERDES @ 16.0GT/s (2.0 and 1.1 compatible)
- Capabilities: Crypto disabled, Secure Boot disabled
- Bracket: Tall bracket
- Card size: 142.00 mm x 68.90 mm (5.59 in x 2.71 in)
- Voltage: 3.3Aux, maximum current 100 mA
- Typical power (passive cables): 15.67 W (PCIe Gen 3.0) / 16.48 W (PCIe Gen 4.0)
- Maximum power (passive cables): 20.51 W (PCIe Gen 3.0) / 22 W (PCIe Gen 4.0)
- Maximum power available through QSFP56 port: 5 W
- Airflow at 55 C, passive cable: 500 LFM (hot aisle, heatsink to port)
- Airflow at 55 C, active 3.5W cable: 600 LFM (hot aisle, heatsink to port)
- Operating temperature: 0 C to 55 C
- Non-operating temperature: -40 C to 70 C
- Operating humidity: 10% to 85% relative humidity
- Operating altitude: 3050 m
- Safety: CB / cTUVus / CE
- EMC: CE / FCC / VCCI / ICES / RCM
- RoHS: Compliant
FAQs
Q: Does this adapter need a licence or subscription?
A: No. No licence or subscription is required. This is the No Crypto variant, with the crypto engines and Secure Boot disabled.
Q: What PCIe slot does it need?
A: It uses a PCIe Gen 4.0 x16 slot. It is backward compatible with Gen 3.0, 2.0 and 1.1 slots, though Gen 4.0 gives the full host bandwidth.
Q: How much power does it draw?
A: With passive cables, typical draw is 15.67 W on PCIe Gen 3.0 or 16.48 W on PCIe Gen 4.0, with a maximum of 22 W. The QSFP56 port can supply up to 5 W to active modules or cables.
Q: What cables and modules does the QSFP56 port support?
A: It supports QSFP56, QSFP28 and QSFP+ copper DAC and optical modules for 100GBASE-CR4/SR4, 50G and 40G, and 10/25G through breakout cables.
Q: Which operating systems have drivers for it?
A: Drivers are available for Linux (MLNX_OFED), Windows (WinOF-2) and VMware ESXi.
Q: How does this differ from the crypto-enabled ConnectX-6 Dx cards?
A: This SKU is the No Crypto, Secure Boot disabled variant with a tall bracket. Crypto-enabled variants add inline IPsec and TLS encryption offload, which is not available on this model.
