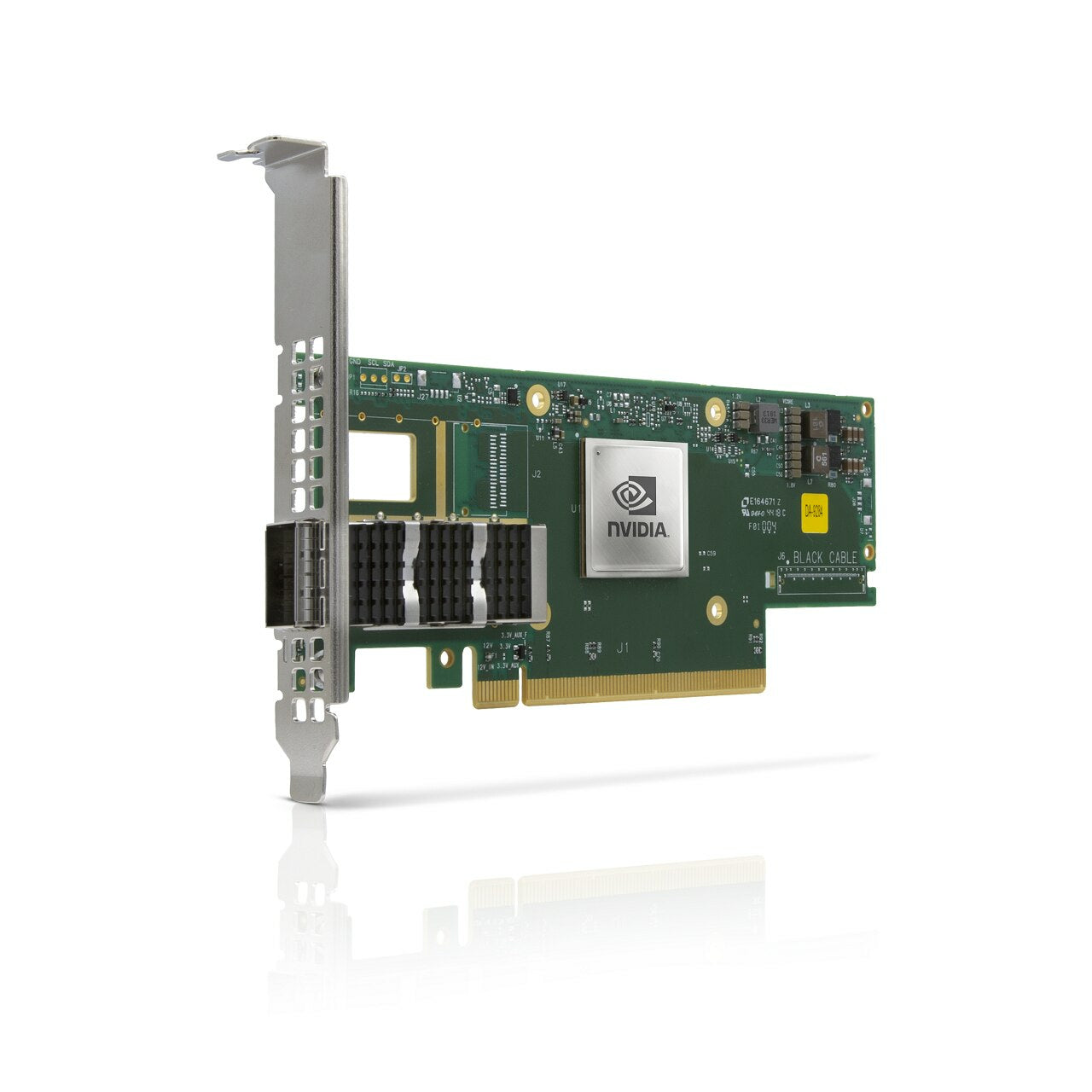

NVIDIA 900-9X6AF-0016-ST2 | ConnectX-6 VPI 1-Port 100G QSFP56 Adapter, Tall Bracket
SKU:900-9X6AF-0016-ST2
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The NVIDIA ConnectX-6 VPI is a single-port QSFP56 network adapter that runs as either InfiniBand or Ethernet. It is a half-height, half-length PCIe card built for HPC clusters, AI and machine learning servers, high-performance storage and cloud infrastructure that need 100Gb/s connectivity.
This single-pack, tall bracket version of the MCX653105A-ECAT carries one QSFP56 port supporting copper and optical connections. In InfiniBand mode it auto-negotiates from SDR through EDR and HDR100, and in Ethernet mode it covers 1, 10, 25, 40, 50 and 100 Gb/s. The host interface is PCIe Gen3 and Gen4, backward compatible with 2.0 and 1.1. Typical power draw is 15.6 W with passive cables, and up to 5 W is available through the QSFP56 port for cables or modules.
It works with passive copper cables and NVIDIA active 2.7W cables, and interoperates with InfiniBand EDR and HDR100 switches as well as 100GbE switches. No software licence or subscription is needed for basic operation, and drivers use NVIDIA MLNX_OFED or WinOF-2.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Dual-protocol VPI: the port can run InfiniBand or Ethernet
- Supports InfiniBand SDR through HDR100 and Ethernet 1 to 100GbE
- PCIe Gen3 and Gen4 host interface, backward compatible with 2.0 and 1.1
- Works with passive copper cables and NVIDIA active 2.7W cables
- Supports a wide range of Ethernet link types including 100GBASE-CR4, SR4 and KR4
- Compact half-height, half-length card with tall bracket fitted
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 1 x QSFP56 (InfiniBand and Ethernet, copper and optical)
- InfiniBand speeds: SDR, DDR, QDR, FDR10, FDR, EDR, HDR100
- Ethernet speeds: 1/10/25/40/50/100 Gb/s
- InfiniBand protocol: IBTA v1.4a
- Host interface: PCIe Gen3/Gen4, x16 lanes, 2.0 and 1.1 compatible
- Bracket: Tall
- Form factor: Half-height, half-length
- Card size: 167.65mm x 68.90mm (6.6 in. x 2.71 in.)
- Typical power (passive cables): 15.6 W
- Power available through QSFP56 port: 5 W
- Auxiliary voltage: 3.3V Aux, max current 100mA
- Operating temperature: 0 to 55 C
- Non-operating temperature: -40 to 70 C
- Operating humidity: 10% to 85% relative humidity
- Non-operating humidity: 10% to 90% relative humidity
- Operating altitude: 3050 m
- Safety: CB / cTUVus / CE
- EMC: CE / FCC / VCCI / ICES / RCM / KC
- RoHS: Compliant
FAQs
Q: Does this adapter need a software licence?
A: No software licence or subscription is needed for basic operation. Drivers and firmware are provided through NVIDIA MLNX_OFED or WinOF-2 downloads.
Q: Can the port run both InfiniBand and Ethernet?
A: Yes. As a VPI adapter, the port can be configured to run either InfiniBand or Ethernet, supporting up to EDR or HDR100 InfiniBand and 100GbE.
Q: How much power does the card draw?
A: Typical power is 15.6 W with passive cables. The card is powered from the PCIe slot, and up to 5 W is available through the QSFP56 port for cables or modules.
Q: What cables work with this adapter?
A: It works with passive copper cables and NVIDIA active 2.7W cables, as well as validated NVIDIA/Mellanox EDR 100Gb/s QSFP cables and optics.
Q: How does this SKU differ from other ConnectX-6 cards?
A: This is the single-port, tall bracket, single-pack version of the MCX653105A-ECAT, supporting 100Gb/s HDR100, EDR and 100GbE over one QSFP56 port.
