• Meraki C9300-48UXM-M 48-port mGig UPOE switch with modular uplinks
1 1

Meraki

Meraki C9300-48UXM-M | Catalyst 9300 48-Port Multigigabit Switch, 1590W UPoE

C9300-48UXM-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

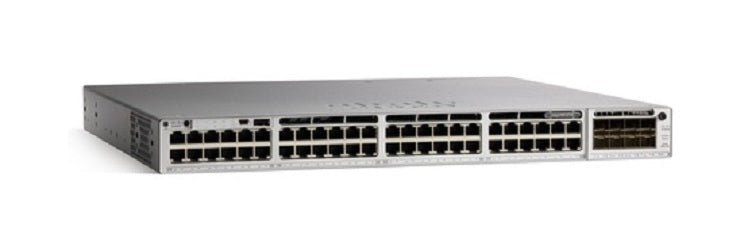

The C9300-48UXM-M is a cloud-managed Catalyst 9300 Series switch combining enterprise-class switching hardware with Meraki Dashboard simplicity. It delivers 48 multigigabit UPoE ports (36 × 2.5G and 12 × 10G) with modular uplinks, 480 Gbps StackWise stacking, and up to 1590W PoE budget with dual power supplies. Ideal for high-density Wi-Fi 6/6E deployments, campus networks, and IoT convergence requiring secure, scalable multigigabit access with zero-touch cloud provisioning.

Features

48 multigigabit UPoE ports: 36 × 2.5G and 12 × 10G for high-bandwidth endpoints
- Cisco UPoE delivers up to 60W per port for Wi-Fi 6/6E APs, IP phones, cameras, and IoT devices
- StackWise-480 stacking with 480 Gbps bandwidth for up to 8-member stacks
- Modular uplinks with 2 network module slots supporting 10G/25G/40G connectivity
- Meraki Dashboard cloud management with zero-touch provisioning and simplified operations
- Adaptive Policy with security group tagging (SGT) for scalable network segmentation
- MACsec encryption for secure Layer 2 communications
- StackPower technology for power pooling and redundancy across stack members
- Layer 3 routing protocols: OSPF, EIGRP, BGP, static routing
- Quality of Service (QoS) with 8 egress queues for traffic prioritization
- Flexible NetFlow (FNF) for advanced traffic monitoring and analytics
- 802.1X authentication and dynamic VLAN assignment
- VXLAN support for network virtualization and segmentation
- Hot-swappable fans and dual power supply support for high availability
- UADP 2.0 ASIC architecture for wire-speed performance and deep packet buffers
- Energy Efficient Ethernet (EEE) IEEE 802.3az compliance

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48 total multigigabit copper ports: 36 × 100M/1G/2.5G + 12 × 100M/1G/2.5G/5G/10G
- Cisco UPoE (60W per port) on all 48 ports
- PoE budget: 490W with single 1100W AC power supply, up to 1590W with dual power supplies
- Modular uplink slots: 2 network module slots supporting 10G/25G/40G modules
- Switching capacity: 580 Gbps
- Forwarding rate: 431.54 Mpps
- StackWise-480 stacking bandwidth: 480 Gbps
- Memory: 8GB DRAM, 16GB Flash
- Managed via Meraki Dashboard (cloud-based)
- Layer 3 routing: OSPF, BGP, EIGRP, static routing
- Security: 802.1X, MACsec, TrustSec, Adaptive Policy
- Management: Meraki cloud console, REST API, CLI
- Dimensions (H × W × D): 1.73 × 17.5 × 22.2 inches with power supply
- Form factor: 1U rack-mountable
- Operating temperature: -5°C to 45°C
- Hot-swappable: 3 fans, dual power supply capable

FAQs

Q: What is the difference between C9300-48UXM-M and C9300-48UXM-A?
A: The C9300-48UXM-M is managed via Meraki Dashboard (cloud-based) and requires Meraki licensing, while the C9300-48UXM-A runs traditional Cisco IOS XE with on-premises or DNA Center management and uses Cisco Smart Licensing. Both share the same hardware platform with 48 multigigabit UPoE ports.

Q: What licensing is required for the C9300-48UXM-M?
A: The C9300-48UXM-M requires a Catalyst 9300-M license subscription for Meraki Dashboard management. Licenses are available in Enterprise and Advanced tiers, with 1, 3, 5, 7, and 10-year term options. Each switch requires one license for cloud management capabilities.

Q: Can I use this switch with Wi-Fi 6 or Wi-Fi 6E access points?
A: Yes, the C9300-48UXM-M is optimized for high-density 802.11ax (Wi-Fi 6/6E) deployments. The 12 × 10G multigigabit ports and 36 × 2.5G ports provide sufficient bandwidth for modern access points, and UPoE support delivers up to 60W per port to power advanced wireless APs and other devices.

Q: What uplink modules are compatible with this switch?
A: The C9300-48UXM-M supports Catalyst 9300 network modules including C9300-NM-8X (8 × 10G SFP+), C9300-NM-2Q (2 × 40G QSFP+), C9300-NM-4M (4 × Multigigabit), C9300-NM-4G (4 × 1G), and C9300-NM-2T (2 × 25G SFP28). Two module slots provide flexible uplink architecture.

Q: How many switches can be stacked together?
A: Up to 8 switches can be stacked using StackWise-480 technology, providing a combined 480 Gbps stacking bandwidth. The stack operates as a single logical unit with unified management through the Meraki Dashboard and supports StackPower for power redundancy across members.
