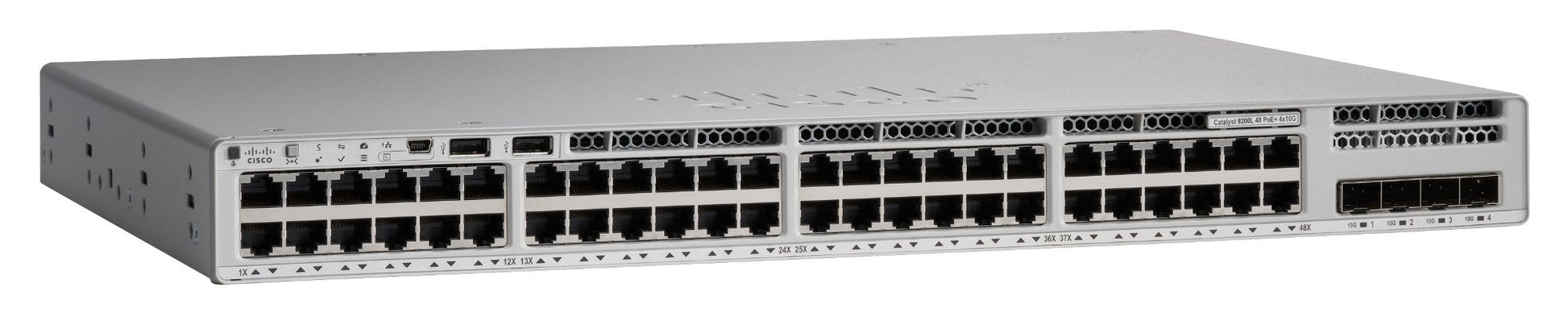

• Meraki C9200L-48PXG-2Y-M silver Catalyst 9500 switch with 48 ports
1 1

Meraki

Meraki C9200L-48PXG-2Y-M | Catalyst 9200L-M 48-Port PoE+ Switch, 740W, 2x 25G SFP28

C9200L-48PXG-2Y-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki Catalyst 9200L-M C9200L-48PXG-2Y-M is a cloud-managed, stackable Layer 3 access switch with 48 PoE+ ports, made up of 8 multigigabit and 40 gigabit ports, plus two fixed 25G SFP28 uplinks. It ships with the PWR-C5-1KWAC power supply providing 740W of PoE budget, making it well suited to powering high-speed Wi-Fi access points, IP phones and cameras in campus and branch access layers. Managed through the Meraki dashboard with zero-touch provisioning, it combines Catalyst hardware with simple cloud administration.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Managed via the Cisco Meraki Dashboard with zero-touch provisioning
- Layer 3 with static routing, OSPFv2, PIM-SM multicast, VRRP warm spare, DHCP server and relay
- Adaptive Policy for scalable security segmentation (Advanced licence required)
- Virtual stacking for unified management of large port counts
- Multigigabit ports for high-speed Wi-Fi access points
- Remote packet capture, cable testing, topology discovery and alerting
- Per-device Meraki licensing is mandatory

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 48 x PoE+ ports: 8 x mGig (10G/5G/2.5G/1G/100M) and 40 x 1G
- 2 x 25G/10G/1G SFP28 fixed uplinks
- 30W per port PoE+ (IEEE 802.3at)
- 740W available PoE with the default PWR-C5-1KWAC power supply; 1440W with an optional secondary power supply
- Switching capacity 340 Gbps; stacking bandwidth 420 Gbps
- Forwarding rate 252.97 Mpps single switch / 313 Mpps in a stack
- 2 x 80G hardware stack ports (optional C9200L-STAK-KIT-M required; up to 8 switches per stack)
- 1 dedicated management interface
- Dual hot-swappable power supply bays; 2 fixed (non-hot-swappable) fans
- Power load idle/max 71.45 W / 934.08 W
- 1U rack mount; 4.4 x 44.5 x 39.1 cm; 5.71 kg
- Operating temperature -5°C to 45°C; humidity 5% to 90%

FAQs

Q: How is the C9200L-48PXG-2Y-M managed?
A: It is managed through the Cisco Meraki Dashboard, with zero-touch provisioning for deployment. A per-device Meraki licence is required.

Q: How much PoE power does this switch provide?
A: With the default PWR-C5-1KWAC power supply it delivers 740W of PoE budget, with up to 30W per port (IEEE 802.3at). Fitting an optional secondary power supply raises the available PoE to 1440W.

Q: Can this switch be stacked?
A: Yes. It has two 80G hardware stack ports and supports up to 8 switches per stack, but the optional C9200L-STAK-KIT-M stacking kit is required. Virtual stacking is also available for unified management.

Q: What uplink options does it have?
A: Two fixed SFP28 uplink ports supporting 25G, 10G or 1G optics, suitable for high-bandwidth connections to a core or distribution layer.

Q: Which ports support multigigabit speeds?
A: Eight of the 48 PoE+ ports are mGig ports supporting 10G, 5G, 2.5G, 1G and 100M, ideal for high-speed Wi-Fi access points. The remaining 40 ports are 1G.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
