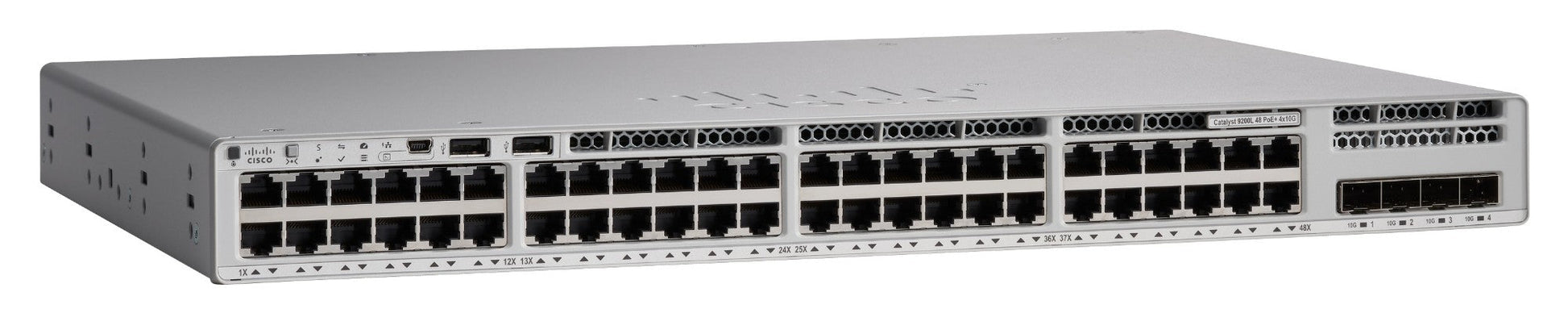

• Cisco Meraki C9200L-48PL-4X-M Catalyst 9500 switch with 48x 1G PoE+ ports
1 1

Meraki

Meraki C9200L-48PL-4X-M | Catalyst 9200L-M 48-Port Gigabit PoE+ Switch, 370W, 4x 10G SFP+

C9200L-48PL-4X-M

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst 9200L-48PL-4X-M is a cloud-managed access switch that combines enterprise-grade hardware with the simplicity of the Meraki dashboard. This 48-port partial PoE+ switch delivers 370W power budget and features four 10G SFP+ uplinks, making it ideal for branch offices and distributed enterprise deployments. Powered by IOS XE and managed through the Meraki cloud, it provides zero-touch provisioning, Layer 3 routing, Adaptive Policy segmentation, and StackWise-80 stacking capabilities for scalable campus networks.

Features

Meraki cloud management with zero-touch provisioning and centralized dashboard
- Cisco IOS XE operating system with programmable UADP 2.0 mini ASIC
- Adaptive Policy for security group-based segmentation using over-the-wire tags
- StackWise-80 physical stacking with 80 Gbps bandwidth (up to 5-member stacks)
- Layer 3 routing: Static routes, OSPFv2, EIGRP, PIM-SM, VRRP
- IEEE 802.1X RADIUS authentication, MAB, hybrid authentication, multi-host/multi-domain
- DHCP snooping, Dynamic ARP Inspection, IPv4/IPv6 ACLs, port security with sticky MAC
- IGMP snooping for multicast filtering, 802.3ad LACP with up to 8 ports per aggregate
- Energy Efficient Ethernet (EEE) and per-port PoE power sensing
- Dual redundant power supply support for PoE expansion or PSU redundancy
- Configuration source flexibility: full cloud config or device-local CLI with cloud monitoring
- Front and rear blue beacon LEDs for easy physical identification
- Supports up to 512 VLANs per standalone switch or stack
- Optional DC power supply support (PWR-C5-715WDC) for HVDC deployments
- NetFlow v10 (IPFIX) and Encrypted Traffic Analytics (Advanced license)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

48x 10/100/1000 Mbps Gigabit Ethernet ports with partial PoE+ (IEEE 802.3at)
- 4x 10G/1G SFP+ fixed uplink ports
- PoE budget: 370W with default PWR-C5-600WAC power supply, expandable to 740W with secondary PSU
- Switching capacity: 176 Gbps (standalone), 256 Gbps (stacked)
- Forwarding rate: 130.95 Mpps (standalone), 190 Mpps (stacked)
- StackWise-80 support (up to 5 switches with 80 Gbps stacking bandwidth, requires C9200L-STAK-KIT-M)
- Memory: 2 GB DRAM, 4 GB Flash
- Layer 3 features: Static routing, OSPFv2, EIGRP, VRRP, PIM-SM, policy-based routing
- Cloud management via Meraki dashboard with IOS XE operating system
- Meraki licensing required: Enterprise or Advanced tier (1, 3, or 5 year terms)
- MAC address table: 16,000 entries
- VLANs: 1,024 supported, 512 active SVIs
- Dimensions: 1.73 x 17.5 x 12.9 in (4.4 x 44.5 x 32.9 cm), 1U rack-mountable
- Fixed redundant dual fans, non-field-replaceable
- Operating temperature: -5°C to 45°C (up to 5,000 ft)
- Certifications: FCC Part 15 Class A, EN 55032, CISPR 32, UL 60950-1/62368-1, CE Marking

FAQs

Q: What is the difference between C9200L-48PL-4X-M and standard C9200L models?
A: The -M suffix indicates factory cloud-managed configuration for the Meraki dashboard. Standard C9200L models require CLI conversion to enable cloud management, while the C9200L-48PL-4X-M ships ready for zero-touch Meraki provisioning out of the box.

Q: Does this switch require Meraki licensing to operate?
A: Yes. All Catalyst 9200L-M switches require an active Meraki license (Enterprise or Advanced tier) on a per-device, per-year basis. The switch will not function without a valid license assigned in the Meraki dashboard.

Q: What is partial PoE+ and how many ports can be powered simultaneously?
A: Partial PoE+ means not all 48 ports can deliver full 30W simultaneously. With the default 370W budget, you can power approximately 12 ports at 30W or up to 24 ports at 15.4W (IEEE 802.3af). Adding a secondary 600W PSU increases total PoE budget to 740W.

Q: Can I stack C9200L-M switches with standard C9200L or C9200 models?
A: No. C9200L-M switches can only stack with other C9200L-M models (up to 5 members). Mixed stacking between C9200L fixed and C9200 modular SKUs is not supported. Each switch in the stack requires a C9200L-STAK-KIT-M accessory.

Q: Can I migrate this switch from cloud management to on-premises management?
A: Yes. Like the Catalyst 9300-M, the 9200L-M provides operational flexibility to migrate from Meraki cloud management to on-premises management via Catalyst Center or CLI at any point during the product lifecycle.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
