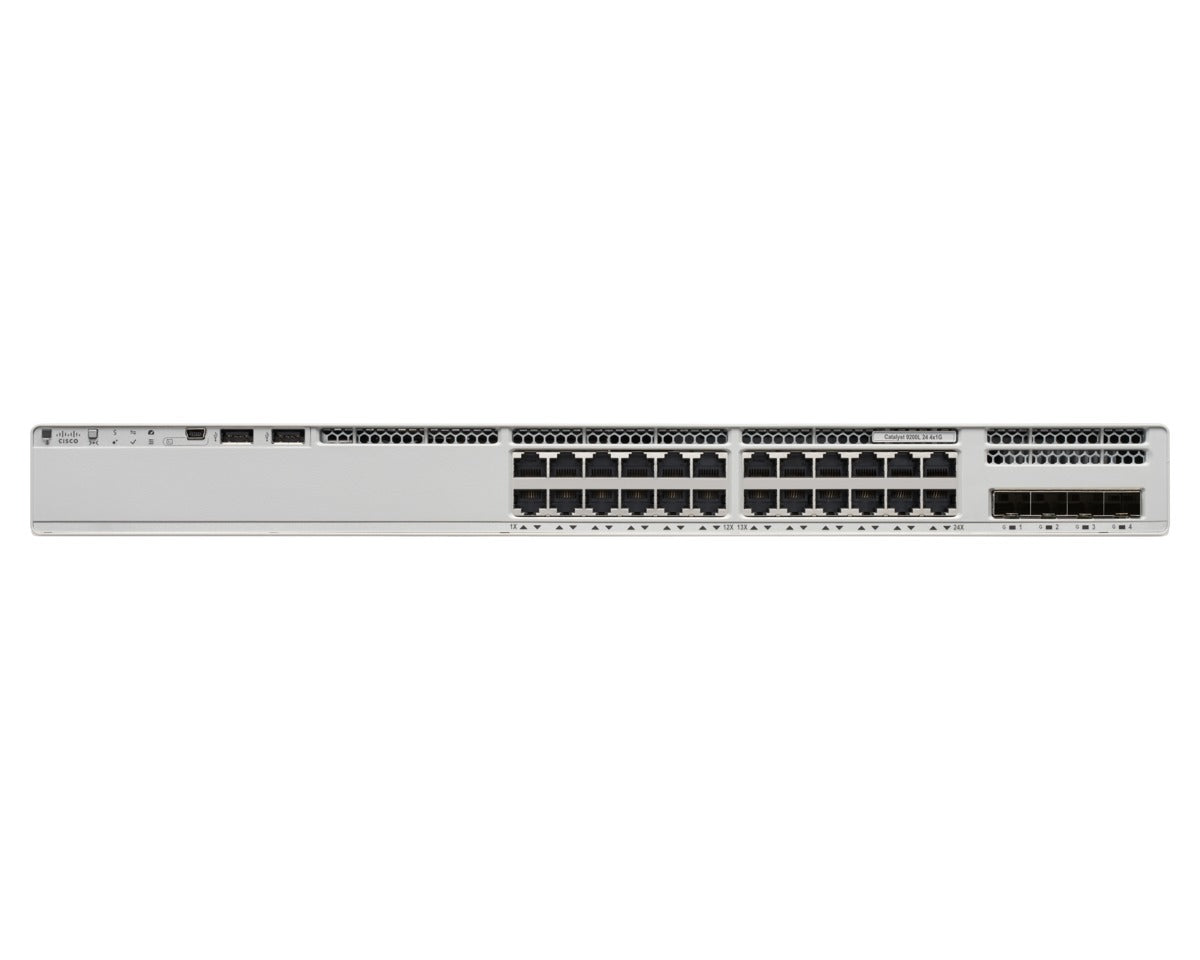

• Silver Cisco Catalyst 9500 series switch, 24x 1G ports, 4x 10G SFP+ uplinks
1 1

Meraki

Meraki C9200L-24T-4X-M | Catalyst 9200L-M 24-Port Gigabit Switch, 4x 10G SFP+, Cloud-Managed

C9200L-24T-4X-M

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst C9200L-24T-4X-M is a cloud-managed enterprise access switch that combines the Meraki dashboard with powerful Catalyst hardware. Designed for distributed sites and branch deployments, it delivers 24 Gigabit Ethernet data ports and 4x 10G SFP+ uplinks with 128 Gbps switching capacity. The switch supports StackWise-80 stacking for up to 8 switches and requires Meraki Enterprise or Advanced licensing for cloud management and advanced security features.

Features

Meraki cloud management with unified dashboard for monitoring, configuration, and troubleshooting
- Virtual stacking for thousands of ports in a single logical stack
- Layer 2 and Layer 3 switching with support for static routing and inter-VLAN routing
- Adaptive Policy support (Advanced license) for security group-based segmentation
- 802.1s Multiple Spanning Tree Protocol with BPDU guard, Root guard, Loop guard
- 802.3ad link aggregation with up to 8 ports per aggregate
- MACsec encryption for secure Layer 2 communications
- Energy Efficient Ethernet (EEE) for reduced power consumption
- Cisco IOS XE operating system with programmability support
- Plug and Play (PnP) zero-touch provisioning
- Quality of Service (QoS) with 1,000 scale entries
- Access Control Lists (ACLs) with 1,500 scale entries
- Template-based configuration with Cisco DNA Center integration
- Fast stack convergence for high resiliency
- Blue beacon LEDs (front and back) for easy physical identification

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

24x 10/100/1000 Mbps RJ45 data ports
- 4x 10G SFP+ fixed uplinks
- Switching capacity: 128 Gbps
- Forwarding rate: 95.23 Mpps (64-byte packets)
- Stacking bandwidth: 80 Gbps (up to 8 switches with optional C9200L-STAK-KIT-M)
- Default power supply: PWR-C5-125WAC
- Memory: 2 GB DRAM, 4 GB Flash
- MAC address table: 16,000 entries
- IPv4 routes: 11,000 (8,000 direct, 3,000 indirect)
- Dimensions: 1.73 x 17.5 x 11.3 inches (4.4 x 44.5 x 28.8 cm)
- Fixed redundant fans
- Management: Meraki cloud dashboard (requires Enterprise or Advanced license)
- Virtual networks: 1
- Certifications: FCC Part 15 Class A, EN 55032 Class A, CISPR 32 Class A

FAQs

Q: Does this switch require a Meraki license to operate?
A: Yes, the C9200L-24T-4X-M requires a Meraki cloud license (Enterprise or Advanced tier) for operation. The license is sold separately on a per-device, per-year basis. The switch will not pass traffic without an active license.

Q: Can this switch be stacked with other Catalyst models?
A: No, the C9200L-24T-4X-M can only be stacked with other C9200L-M series switches (up to 8 units with 80 Gbps stacking bandwidth). It cannot be stacked with modular C9200 models or other Catalyst switch families. Stacking requires the optional C9200L-STAK-KIT-M.

Q: What is the difference between Enterprise and Advanced licensing?
A: Both tiers provide core switching features and cloud management. Advanced licensing adds capabilities like Adaptive Policy for scalable security group-based segmentation. Organizations must use the same license tier across all C9200L-M, C9300L-M, and MS390 switches in a co-term licensing model.

Q: Does this model support PoE?
A: No, the C9200L-24T-4X-M is a data-only model with no PoE capability. For PoE+ support, consider the C9200L-24P-4X-M which offers full PoE+ on all 24 ports with 600W power budget.

Q: What SFP+ modules are compatible with the uplinks?
A: The 4x 10G SFP+ uplinks support Meraki-approved 1G and 10G SFP/SFP+ transceivers including MA-SFP-1GB-SX, MA-SFP-1GB-LX10, MA-SFP-10GB-SR, MA-SFP-10GB-LR, and Twinax DAC cables. Refer to the Meraki SFP datasheet for complete compatibility.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
