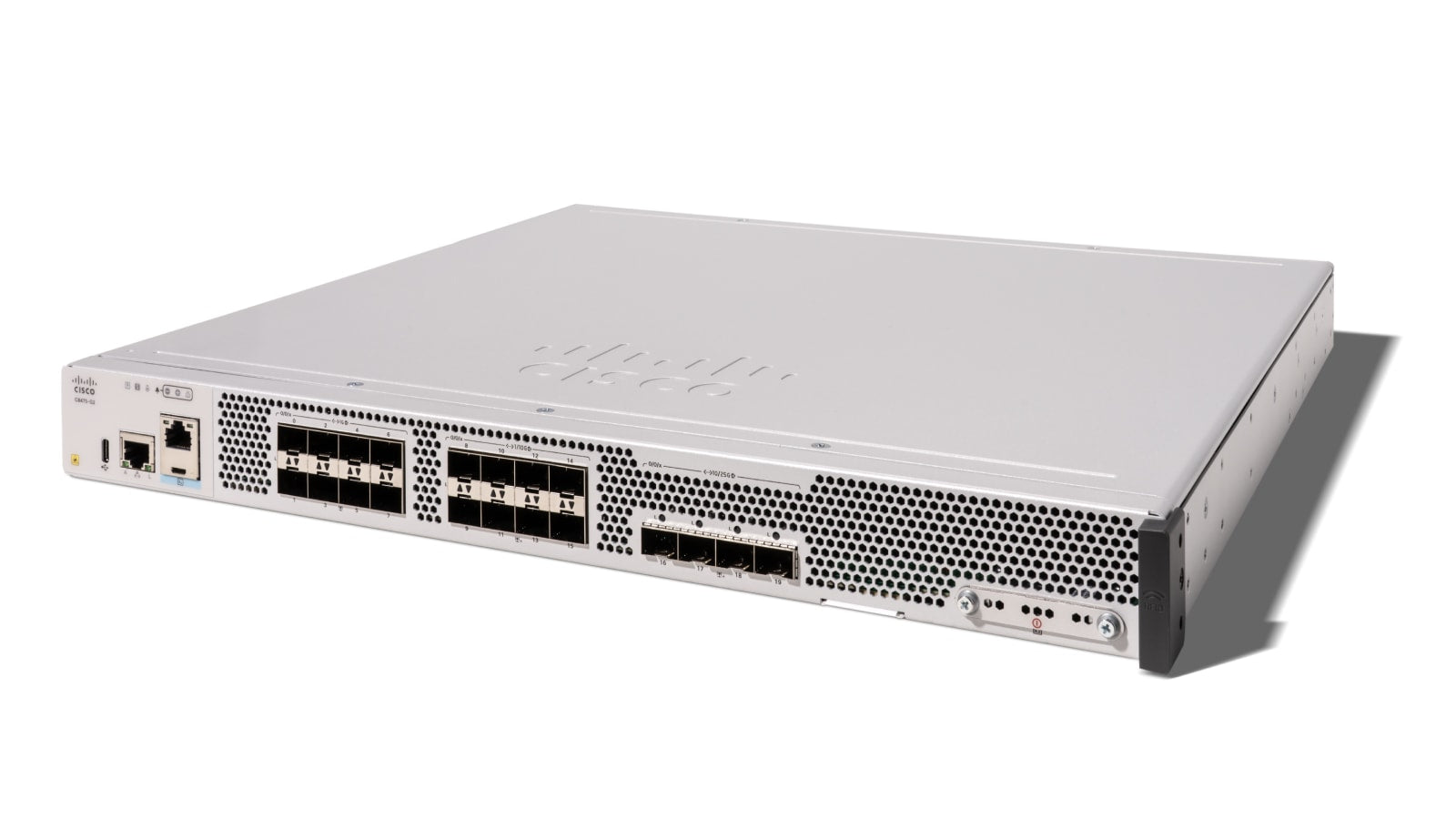

• Meraki c8455-g2-mx secure wan edge platform with sleek white metal cisco catalyst 9500 series switch and multiple ethernet ports
1 1

Meraki

Meraki C8455-G2-MX | MX 2x25G SFP28 WAN Firewall, 20 Gbps NGFW

C8455-G2-MX

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The C8455-G2-MX is a Cisco Secure Router running Meraki MX OS and managed from the Meraki dashboard. It delivers SD-WAN, firewall and security services for large campus sites, and doubles as a VPN concentrator or SD-WAN hub for large VPN networks.

The WAN side has 2x 25G SFP28 ports, backed by 2x 10G SFP+ LAN/WAN convertible ports and 8x 1G SFP LAN ports. Maximum NGFW throughput is 20 Gbps, with 10 Gbps of site-to-site VPN throughput and 8 Gbps of advanced security throughput. It is rated for a recommended 15,000 devices and up to 3,500 tunnels. It is a 1U rack-mount unit with 2x 250W AC power supplies for redundancy, and a Meraki MX licence is required for operation.

Genuine Meraki and Cisco optics work across the port types, including SFP-25G-SR-S, SFP-10/25G-CSR-S and SFP-10/25G-LR-S on the 25G ports, MA-SFP-10GB-SR/LR/LRM/ER on the 10G ports, and MA-SFP-1GB-TX and MA-SFP-1GB-LX10 on the 1G ports. Twinax and AOC cables are supported on the 25G and 10G ports.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud-managed through the Meraki dashboard with minimal pre-configuration needed in most locations
- Integrated SD-WAN and firewall services for large campus environments
- VPN concentrator role for large VPN networks
- Dual 250W AC power supplies for power redundancy
- High-speed 25G SFP28 WAN uplinks
- Convertible 10G SFP+ ports that can serve LAN or WAN
- Supports Meraki and Cisco SFP28, SFP+ and SFP optics plus twinax and AOC cables

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- WAN ports: 2x 25G SFP28
- LAN/WAN convertible ports: 2x 10G SFP+
- LAN ports: 8x 1G SFP
- Maximum NGFW throughput: 20 Gbps
- Maximum site-to-site VPN throughput: 10 Gbps
- Advanced security throughput: 8 Gbps
- Recommended device count: 15,000
- Maximum recommended tunnels: 3,500
- Recommended use case: Large Campus & VPN Concentrator
- Management: 1x RJ45 console port, 1x RJ45 management interface
- Form factor: 1U, 19 inch rack mount
- Dimensions (h x w x d): 1.73 in x 17.50 in x 12 in
- Weight: 12.5 lbs
- Power supplies: 2x 250W AC
- Input voltage: 85 to 264 Vac, 47 to 63 Hz
- Operating temperature: 0 to 40 C (32 to 104 F)
- Humidity: 10 to 85% non-condensing

FAQs

Q: Does the C8455-G2-MX need a licence to operate?
A: Yes. A Meraki MX licence is required for cloud management through the Meraki dashboard. Confirm the licence tier you need for your deployment.

Q: Which power cord does this unit use in Australia?
A: The unit takes region-specific AC power cords. For Australia the matching cord is MA-PWR-CORD-AU.

Q: Which optics work in the 25G SFP28 ports?
A: Supported parts include SFP-25G-SR-S, SFP-10/25G-CSR-S and SFP-10/25G-LR-S. The ports also accept MA-SFP-10GB-SR/LR/LRM/ER in 10G mode, SFP-H25G-CU1M/3M/5M and SFP-25G-AOC1M/3M/5M cables, and MA-CBL-TA-1M/3M.

Q: What can be fitted in the 10G and 1G ports?
A: The 10G SFP+ ports take MA-SFP-10GB-SR/LR/LRM/ER and twinax cables MA-CBL-TA-1M/3M. The 1G SFP ports take MA-SFP-1GB-TX and MA-SFP-1GB-LX10.

Q: What size network is this model recommended for?
A: It is recommended for large campus sites and as a VPN concentrator, with a recommended device count of 15,000 and up to 3,500 recommended tunnels.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
