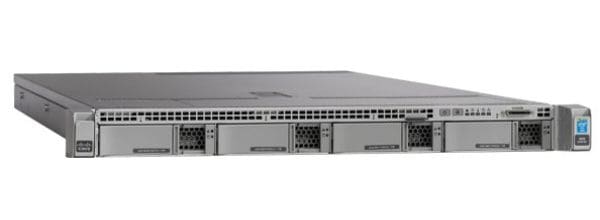

• Cisco SNS-3515-K9 ISE 1U rack server with silver chassis, black accents, dual PSU, and RAID hot-swap bays
1 1

Cisco

Cisco SNS-3515-K9 | SNS 3515 ISE Appliance, 1U, 16GB RAM, 600GB HDD

SNS-3515-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Cisco SNS 3515 is a 1U rack appliance built on the Cisco UCS C220 M4 platform and pre-configured to run Cisco Identity Services Engine. It suits small enterprise or branch deployments that need network access control, AAA, device profiling and posture assessment, and can act as a standalone or hybrid ISE node covering the PAN, MnT and PSN personas.

This small ISE appliance pairs a single 6-core Intel Xeon E5-2620 v3 2.40 GHz processor with 16 GB RAM (2 x 8 GB) and one 600 GB 12G SAS 10K RPM hot-pluggable 2.5-inch drive. It provides six 1 GbE network interfaces plus a dedicated 1 GbE CIMC management port. Dual 770 W hot-swap AC power supplies give redundant power, with a self-ranging 90 to 264 VAC input. As a hybrid PAN and MnT node it handles up to 7,500 concurrent sessions.

The appliance runs Cisco ISE 2.0.1 or later. ISE software and licences are sold separately, with the software load ordered as SW-3515-ISE-K9. Spares include the UCS-HD600G10K12N hard drive, the UCSC-PSU1-770W= power supply and the UCSC-RAILB-M4= rail kit.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Purpose-built appliance preloaded for Cisco Identity Services Engine
- Redundant hot-swap power supplies
- Dedicated out-of-band CIMC management port
- UEFI Secure Boot support
- Front-panel locator LED for finding servers in large data centres
- Tool-less slide rail kit
- Supports PAN, MnT and PSN personas for small deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Platform: Cisco UCS C220 M4
- Processor: 1 x Intel Xeon E5-2620 v3, 2.40 GHz
- Cores per processor: 6 cores / 12 threads
- Memory: 16 GB (2 x 8 GB)
- Hard disk: 1 x 600 GB 12G SAS 10K RPM SFF (2.5-in) hot-pluggable
- Network interfaces: 6 x 1 GbE
- Management: 1 GbE dedicated management port (CIMC)
- Front-panel connector: 1 KVM console connector (2 USB, 1 VGA, 1 serial)
- Rear connectors: VGA, 2 USB, RJ-45 serial console, 1 GbE management
- Power supply: 770 W (UCSC-PSU1-770W), dual redundant
- AC input voltage: 90 to 264 VAC (self-ranging)
- AC input frequency: 47 to 63 Hz
- Maximum AC input current: 9.5 A peak at 100 VAC; 4.5 A peak at 208 VAC
- Maximum output power per PSU: 770 W
- Rack height: 1 RU (1.7 in / 4.3 cm)
- Width: 16.9 in / 42.9 cm
- Depth: 29.8 in / 75.8 cm
- Supported software: Cisco ISE 2.0.1 or later
- Secure boot: UEFI Secure Boot supported
- Hybrid deployment capacity: 7,500 concurrent sessions as PAN+MnT

FAQs

Q: Does this appliance need ISE licences?
A: Yes. The appliance runs Cisco ISE, and ISE software and licensing are sold separately. The software load for this model was ordered as SW-3515-ISE-K9.

Q: Which ISE versions does the SNS 3515 support?
A: It runs Cisco ISE 2.0.1 or later. Earlier releases cannot be installed on this hardware.

Q: What power does the SNS 3515 use?
A: It has dual 770 W hot-swap AC power supplies (UCSC-PSU1-770W). The input is 90 to 264 VAC self-ranging at 47 to 63 Hz, drawing up to 9.5 A at 100 VAC.

Q: Which spare parts match this appliance?
A: Matching spares include the UCS-HD600G10K12N 600 GB SAS drive, the UCSC-PSU1-770W= power supply, the N20-BKVM= KVM cable and the UCSC-RAILB-M4= rail kit.

Q: How does the SNS 3515 differ from larger SNS models?
A: This is the small ISE appliance, with one 600 GB drive, 16 GB RAM and dual 770 W power supplies. It suits small deployments, with 7,500 concurrent sessions as a hybrid PAN and MnT node.
