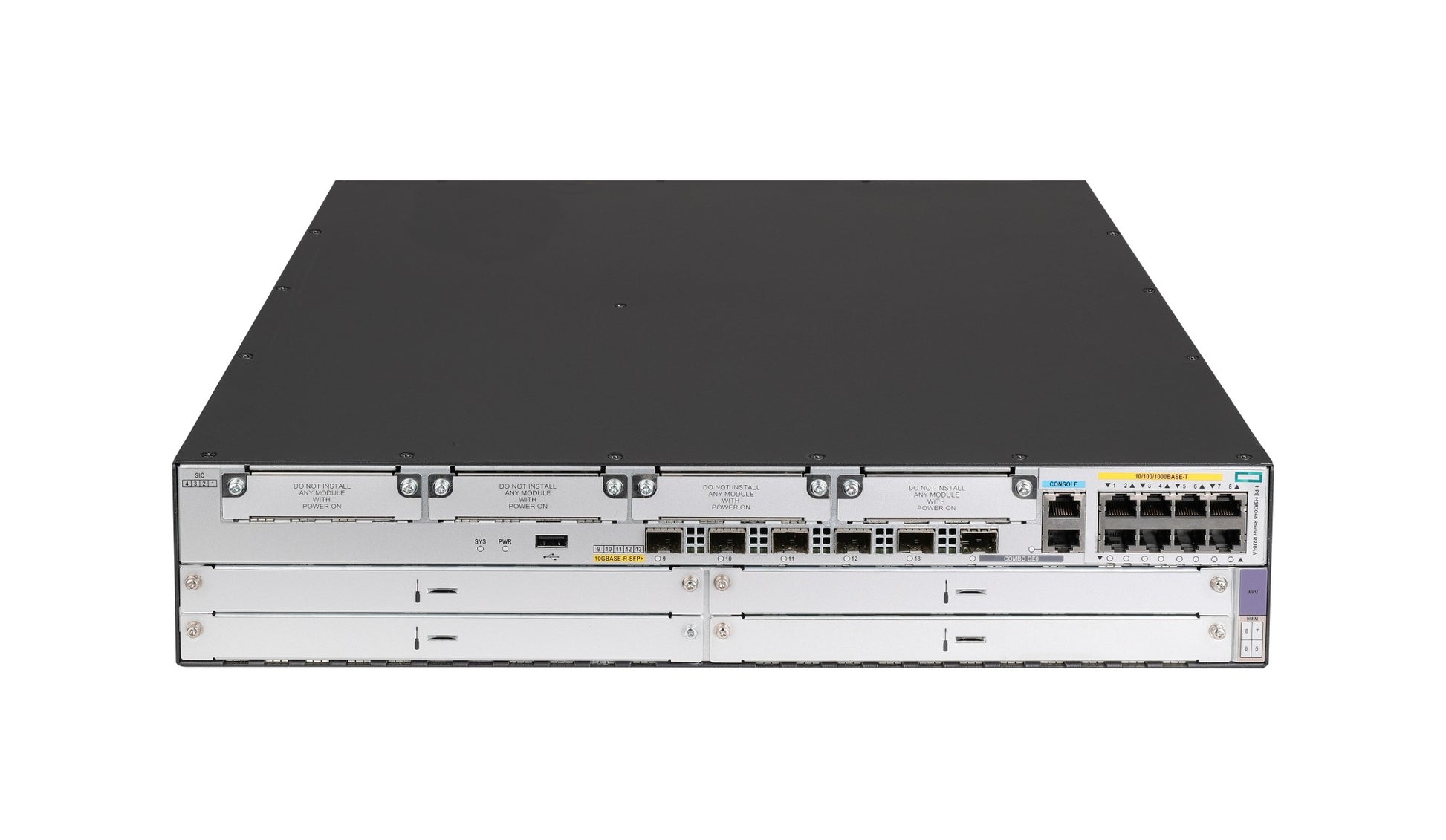

HPE R9J04A | FlexNetwork MSR3046 Modular Router, AC, 4 HMIM, 2U

R9J04A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The MSR3046 is a modular branch router from the HPE FlexNetwork MSR3000 family, designed for medium to large branch offices. This AC-powered 2U rack-mount model provides 4 HMIM slots, so WAN, voice and other modules can be added to suit the site. It combines advanced routing with a built-in stateful firewall and IPS, and runs HPE Comware software with IPv6 and MPLS support. It sits above the MSR3026 and MSR3016 in the range.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Built-in IPS and stateful firewall, with optional HPE IPS filter subscription
- Modular design with 4 HMIM slots for WAN and voice expansion
- Serial, GbE and Gig-T SIC module support for configuration flexibility
- High-density voice modules and channelised POS access
- ADVPN and hierarchical QoS
- IPv6 and MPLS support
- Supports HPE Open Application Platform (OAP) modules
- Runs HPE Comware software

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Rack-mountable 2U chassis, approx. 43.9 x 48 x 8.9 cm
- 4 HMIM slots
- Processor: 1 x 1.8 GHz multicore CPU
- Memory: 4 GB DDR3 SDRAM, 1 GB flash
- Onboard ports: 3 x 10/100/1000 RJ-45, SFP/SFP+ uplinks, RJ-45 console, USB Type-A
- Forwarding performance up to 13 Mpps
- IPv4/IPv6 routing entries: 500,000
- Power: internal AC PSU, 100-120/200-240 V, 100 W operational, 2 PSUs maximum
- Routing protocols: OSPFv2/v3, BGP-4, IS-IS, RIP, MPLS, VRRP, PIM-SM, ECMP

FAQs

Q: How many module slots does the MSR3046 have?
A: The MSR3046 has 4 HMIM slots, allowing WAN, voice and other modules to be installed to match the branch requirements.

Q: What power supply does this model use?
A: This is the AC model with an internal AC power supply rated for 100-120/200-240 V. Up to 2 power supplies are supported.

Q: Does the MSR3046 include security features?
A: Yes. It includes a built-in stateful firewall and IPS, with an optional HPE IPS filter subscription available.

Q: Which routing protocols does it support?
A: It supports OSPFv2/v3, BGP-4, IS-IS, RIP, MPLS, VRRP, PIM-SM and ECMP, with both IPv4 and IPv6 routing.

Q: How does the MSR3046 differ from the MSR3026 and MSR3016?
A: The MSR3046 (R9J04A) is the larger 2U model in the MSR3000 range with 4 HMIM slots, while the MSR3026 (R9J03A) and MSR3016 (R8V32A) are the smaller siblings in the same family.
