HPE R7N78A | SN1700E 2-Port 64Gb Fibre Channel HBA, PCIe 4.0 x8

SKU:R7N78A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

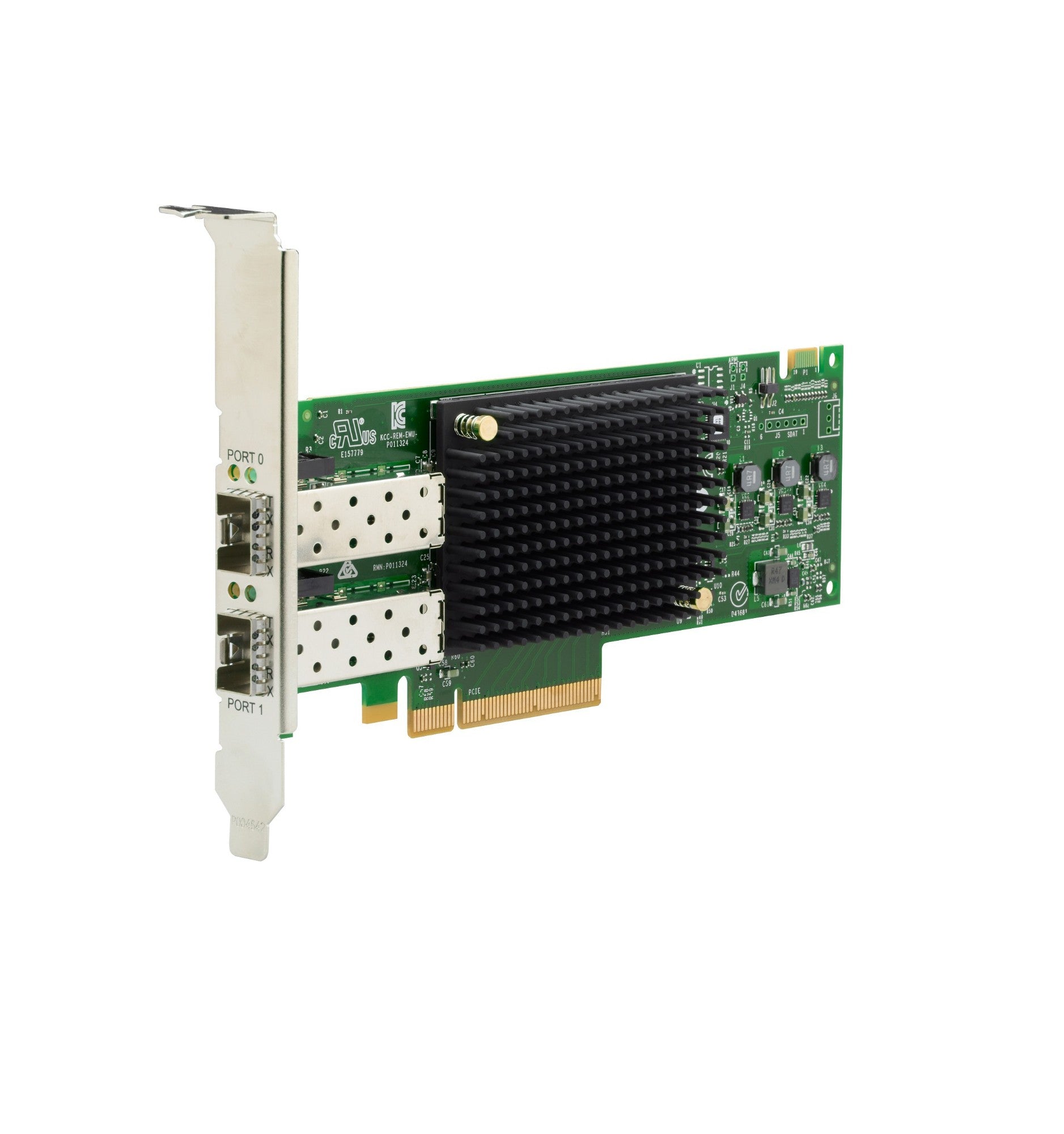

The SN1700E is a dual-port 64Gb Fibre Channel host bus adapter from the HPE SN1700 series. It connects servers to Fibre Channel SANs over a PCIe 4.0 x8 host interface and supports FC-NVMe and SCSI FCP on the same wire. It suits enterprise SAN connectivity for HPE ProLiant and Apollo servers to shared storage such as Alletra, covering databases, ERP and CRM, virtualised server farms, backup and restore, and media or video surveillance workloads.

This 2-port model provides two 64GFC ports with short-wave multi-mode SFP56 optics and LC connectors, and auto-negotiates 64, 32 and 16 Gbps so it works with existing 16Gb and 32Gb fabrics. Maximum throughput is 12,800 MBps per port full duplex. Full protocol offload reduces latency and frees host CPU, and the adapter is bus-powered from the PCIe slot with no separate power supply. No licence or subscription is required. The variant includes two 64Gb short-wave SFP transceivers.

The adapter connects to 16Gb, 32Gb and 64Gb Fibre Channel switches and is supported with HPE Alletra, Primera, Nimble, MSA, XP and 3PAR arrays and StoreOnce secondary storage. Operating system support covers Windows Server, Red Hat Enterprise Linux, VMware ESXi, SUSE Linux Enterprise Server and Oracle Linux. Verify your exact configuration against HPE SPOCK.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Twice the bandwidth of 32Gb HBAs, backward compatible with 32Gb and 16Gb storage networks
- FC-NVMe support, running SCSI and NVMe protocols concurrently on the same wire
- Hardware Root of Trust for firmware integrity protection, plus secure firmware download
- Fabric Performance Impact Notifications (FPIN-LI, -CN, -PN, -DN)
- T10 Protection Information for end-to-end data integrity with T10-PI enabled arrays such as HPE Alletra
- LUN prioritisation and QoS via CS_CTL, plus VM-ID support for VM-aware SAN
- Forward error correction (FEC) and D-Port diagnostics
- Full protocol offload to reduce latency and free host CPU

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Model: SN1700E (R7N78A, dual port)
- Number of channels: Dual
- Port speed: 64GFC
- Auto-negotiation: 64/32/16 Gbps
- Media: Multi-mode optic (SFP56), short-wave laser
- Connector: LC
- Host interface: PCIe 4.0 x8 (backward compatible with PCIe 3.0)
- Maximum throughput per port: 12,800 MBps full duplex
- Included transceivers: Two 64 Gbps short-wave SFP
- Brackets: Standard and low-profile
- Operating temperature: 0 to 55 C (32 to 131 F)
- Storage temperature: -20 to 70 C (-4 to 158 F)
- Operating relative humidity: 10% to 90% RH at 40 C (non-condensing)
- Non-operating relative humidity: 5% to 95% (non-condensing)
- Dimensions (W x D x H): 167.64 x 12.44 x 69.34 mm
- Windows Server and Hyper-V: 2022, 2019, 2016 x64
- Red Hat Enterprise Linux: 9.x, 8.x, 7.x x64
- VMware ESX/ESXi: 8.x, 7.0, 6.7 x64
- SUSE Linux Enterprise Server: 15.x, 12.x x64
- Oracle Linux: 9.x x64

FAQs

Q: Does the SN1700E need a licence or subscription?
A: No. No licence or subscription is required to use the adapter.

Q: How is the adapter powered?
A: It is bus-powered through the PCIe 4.0 x8 slot, so no separate power supply is needed.

Q: Which Fibre Channel switches and fabrics does it work with?
A: It auto-negotiates 64, 32 and 16 Gbps, so it connects to 16Gb, 32Gb and 64Gb FC switches. A 64Gb HBA is not supported on 4Gb or 8Gb switches.

Q: Which storage arrays is it supported with?
A: It is supported with HPE Alletra, Primera, Nimble, MSA, XP and 3PAR arrays and StoreOnce secondary storage. Confirm your configuration against HPE SPOCK.

Q: How does R7N78A differ from the single-port model?
A: R7N78A is the dual-port SN1700E with two 64GFC ports. The single-port SN1700E is R7N77A.
