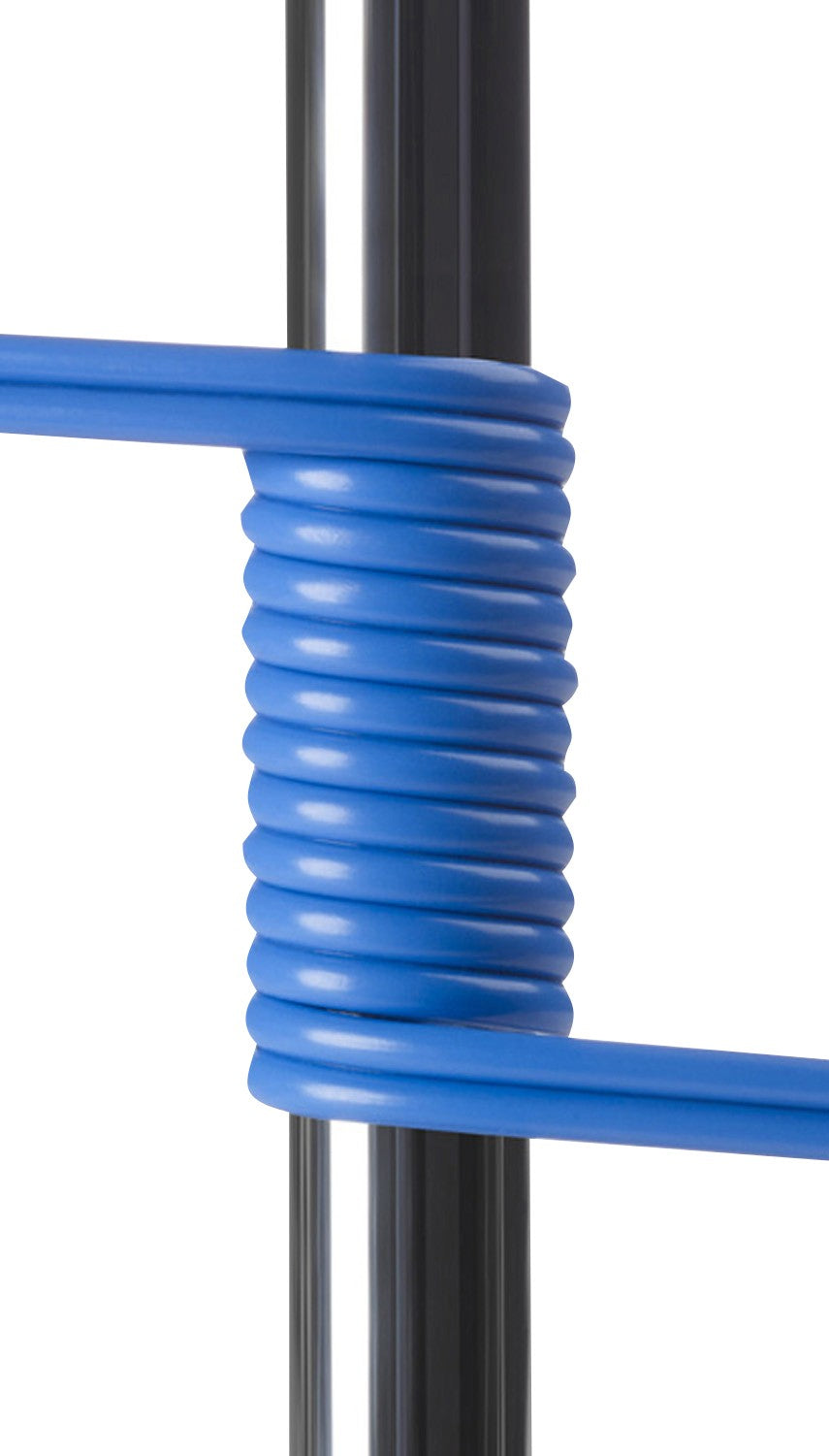

HPE Q1H63A | Premier Flex OM4 MPO12/MPO12 Patch Cable, 1m, Type-B

SKU:Q1H63A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This HPE Premier Flex patch cable is a 1m OM4 multimode fibre cable with an MPO12 connector on each end. It is built for high-density data centre links between switches, servers and storage, including 40G and 100G parallel-optic connections.

The cable uses bend-insensitive 50/125um graded-index OM4 fibre with 12 fibres and Type-B polarity, which is the arrangement used for straight-through parallel-optic links. The female UPC connectors have a maximum optical insertion loss of 0.5 dB at 850nm, and bandwidth is rated at 4700 MHz-km at 850nm. The cable is 3mm in diameter with a minimum bend radius of 7.5mm, so it routes cleanly through tight cable management. The jacket is low-smoke zero-halogen material.

It is intended for use with QSFP and MPO12 parallel-optic transceivers, such as 40G SR4 and 100G SR4 modules. Maximum reach with no bends is 380m at 10GbE, 125m at 16Gb Fibre Channel and 100m at 25GE, 32Gb and 64Gb Fibre Channel.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Bend-insensitive OM4 fibre keeps signal loss low when routed through tight bends
- MPO12 connectors on both ends for high-density 40G and 100G parallel-optic links
- Type-B polarity for straight-through parallel-optic connections
- Low-smoke zero-halogen jacket
- Supports 10GbE, 25GE and 16/32/64Gb Fibre Channel over short distances
- Passive cable, no power required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Cable length: 1 m
- Connectors: MPO12 to MPO12, female, UPC
- Fibre type: OM4 multimode 50/125um, 12 fibre
- Cable polarity: Type-B
- Core diameter: 50um ±3um
- Cladding diameter: 125um ±2um
- Bandwidth: 4700 MHz-km at 850nm (laser)
- Optical insertion loss: 0.5 dB max at 850nm
- Minimum bend radius: 7.5 mm
- Cable diameter: 3 mm
- Weight: 10 g
- Jacket material: OFNR (riser) LSZH thermoplastic
- Maximum reach (no bend): 380 m (10GbE), 125 m (16Gb FC), 100 m (32Gb FC and 25GE), 100 m (64Gb FC)
- RoHS: Compliant

FAQs

Q: Which transceivers does this cable work with?
A: It is intended for QSFP and MPO12 parallel-optic transceivers, such as 40G SR4 and 100G SR4 modules.

Q: What does Type-B polarity mean?
A: Type-B polarity reverses the fibre positions from one connector to the other, which is the arrangement used for straight-through parallel-optic links between SR4 transceivers.

Q: How far can this cable carry a signal?
A: With no bends, maximum reach is 380 m at 10GbE, 125 m at 16Gb Fibre Channel, and 100 m at 25GE and 32Gb or 64Gb Fibre Channel. At 1m length it suits short in-rack and adjacent-rack links.

Q: Does it need power?
A: No. It is a passive fibre cable and needs no power.

Q: What other lengths are in this range?
A: The same cable design is also available in 2m (Q1H64A), 5m (Q1H65A), 10m (QK729A), 15m (Q1H66A) and 30m (Q1H67A).
