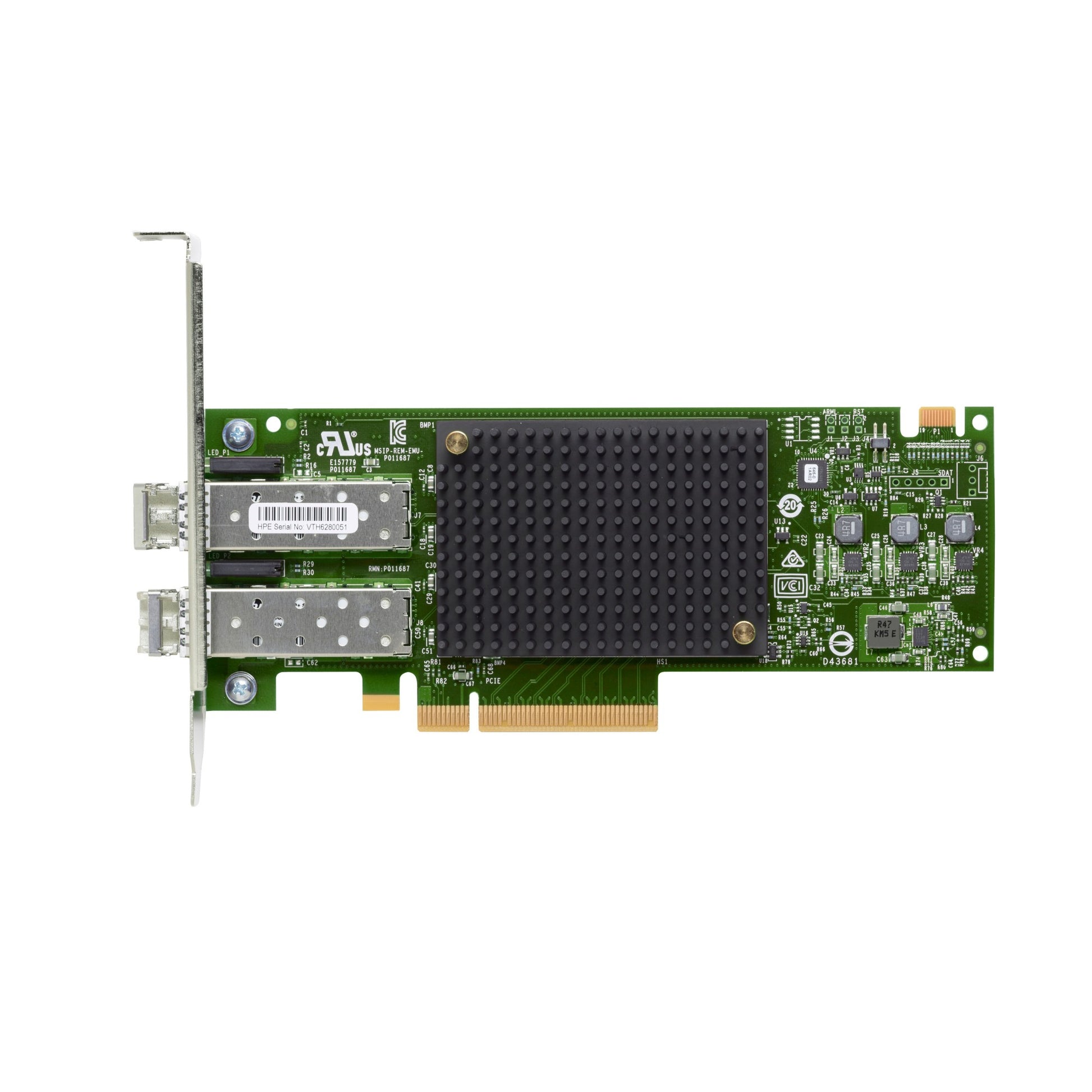

• HPE Q0L12A 32G Fibre Channel HBA 2-port PCIe 3.0 x8 green circuit board
1 1

HPE

HPE Q0L12A | StoreFabric SN1600E 2-Port 32G FC Host Bus Adapter

Q0L12A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE StoreFabric SN1600E is a dual-port 32Gb Fibre Channel host bus adapter for HPE servers, delivering high-bandwidth, low-latency connectivity to Fibre Channel and FC-NVMe storage. It uses a PCIe 3.0 x8 host interface with two SFP+ ports and pre-installed shortwave optics, and auto-negotiates down to 16Gb and 8Gb for use in mixed fabrics. This two-port SN1600E model suits SAN-attached virtualisation and database hosts that need redundant paths, and is the dual-port variant of the single-port Q0L11A.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Twice the bandwidth of 16Gb FC HBAs while remaining backward compatible with 16Gb and 8Gb FC
- Supports Fibre Channel (FCP) and FC-NVMe standards
- T10 Protection Information (T10-PI) data integrity with hardware offload
- Auto-negotiation and firmware upgradable
- Quality of Service (QoS) and Forward Error Correction (FEC)
- FDMI, Fabric-Assigned Port WWN (FA-WWN), Class-specific Control (CS_CTL) and Link Cable Beacon
- D-Port diagnostics, FC Ping, FC Trace and Read Diagnostic Parameters (RDP)
- Interoperability-tested for HPE ProLiant, Synergy, SuperDome and Alletra Storage Servers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: Fibre Channel host bus adapter, SN1600E
- Ports: 2 x 32Gb Fibre Channel (SFP+, shortwave optic pre-installed, LC connector)
- Host interface: PCI Express 3.0 x8
- Speed auto-negotiation: 32/16/8 Gbps
- Bandwidth: up to 12,800MBps across two 32GFC ports
- Form factor: plug-in card, low-profile bracket included
- Operating temperature: 0 to 45 °C
- Humidity: 15-80% non-condensing
- Supported OS families: Windows Server/Hyper-V, RHEL, SLES, VMware ESXi

FAQs

Q: What is the difference between the Q0L12A and Q0L11A?
A: Both are SN1600E 32Gb Fibre Channel HBAs. The Q0L12A has two 32Gb ports, while the Q0L11A has a single port.

Q: Does this HBA support FC-NVMe?
A: Yes. The SN1600E supports both standard Fibre Channel (FCP) and FC-NVMe for NVMe-over-Fabrics storage connectivity.

Q: Can it connect to 16Gb or 8Gb Fibre Channel switches?
A: Yes. The ports auto-negotiate 32/16/8 Gbps, so the adapter works with existing 16Gb and 8Gb fabrics.

Q: What server slot does it require?
A: It is a plug-in card with a PCIe 3.0 x8 host interface, and a low-profile bracket is included for compact server chassis.

Q: Are optics included?
A: Yes. Each port has a shortwave SFP+ optic pre-installed with an LC connector, suited to multimode fibre runs.
