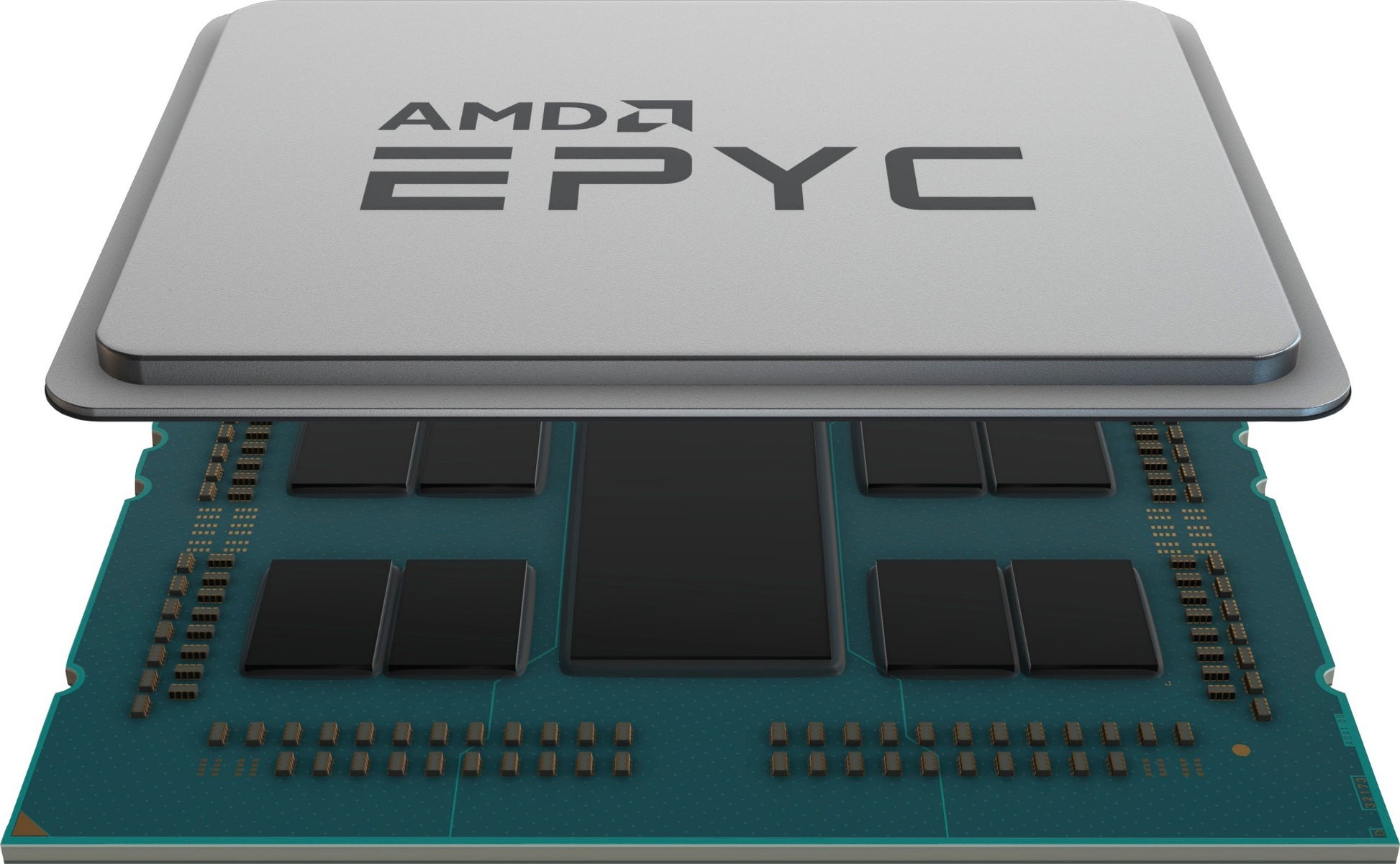

HPE P69258-B21 | EPYC 8024P Processor, 8-Core 2.4GHz, 90W TDP, SP6
SKU:P69258-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The AMD EPYC 8024P is a single-socket server processor from the EPYC 8004 Series (Siena), supplied as an HPE option kit for supported ProLiant Gen11 servers. Built on the Zen 4c architecture, it suits edge computing, telco and space-constrained or power-efficient server deployments, as well as virtualisation and database workloads where per-core licensing cost matters.
This variant provides 8 cores and 16 threads with a 2.4 GHz base clock, up to 3.0 GHz boost and 32 MB of L3 cache. Default TDP is 90 W, configurable from 70 W to 100 W. It uses the SP6 (LGA-4844) socket with six channels of DDR5-4800 memory, delivering up to 230.4 GB/s of memory bandwidth, and provides 96 lanes of PCIe 5.0.
The P suffix denotes single-socket operation only. It requires DDR5 RDIMMs and does not support DDR4. There is no on-board graphics, and power is drawn from the host server's power supplies. Confirm the exact server model against the HPE QuickSpecs, as heatsink and fan requirements vary by platform.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Zen 4c-based EPYC 8004 Siena design aimed at power-efficient, lower-TDP server deployments
- Six-channel DDR5-4800 memory support
- PCIe 5.0 I/O for high-speed storage and networking
- AMD Infinity Guard security features
- Configurable TDP between 70 W and 100 W
- HPE-qualified option kit for iLO-managed ProLiant platforms
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Processor family: AMD EPYC 8004 Series (Siena)
- Processor model: 8024P
- HPE part number: P69258-B21
- AMD OEM part number: 100-000001136
- Architecture: Zen 4c, 5 nm
- Cores: 8
- Threads: 16
- Base frequency: 2.4 GHz
- Max boost frequency: 3.0 GHz
- L3 cache: 32 MB
- Default TDP: 90 W
- Configurable TDP-up: 100 W
- Configurable TDP-down: 70 W
- Processor socket: SP6 (LGA-4844)
- Memory type: DDR5 SDRAM
- Memory speed: up to 4800 MT/s
- Memory channels: 6
- Max memory bandwidth: 230.4 GB/s
- PCI Express: Gen 5.0, 96 lanes
- On-board graphics: No
- Security features: AMD Infinity Guard, AMD Infinity Architecture
- Processor quantity per kit: 1
FAQs
Q: Which servers is the P69258-B21 designed for?
A: It is intended for supported HPE ProLiant Gen11 servers with an SP6 socket. Confirm the exact server model against the HPE QuickSpecs, as heatsink and fan requirements vary by platform.
Q: Can it be used in a dual-socket server?
A: No. The P suffix on the EPYC 8024P means single-socket operation only, so it does not support multi-socket configurations.
Q: What memory does it require?
A: It requires DDR5 RDIMMs, running at up to 4800 MT/s across six memory channels. DDR4 memory is not supported.
Q: What is the power draw and can the TDP be adjusted?
A: Default TDP is 90 W and it is configurable from 70 W to 100 W. Power is supplied by the host server's power supplies.
Q: Does the processor include on-board graphics?
A: No. The EPYC 8024P has no integrated graphics, so video output must come from the server's management controller or an installed graphics card.
