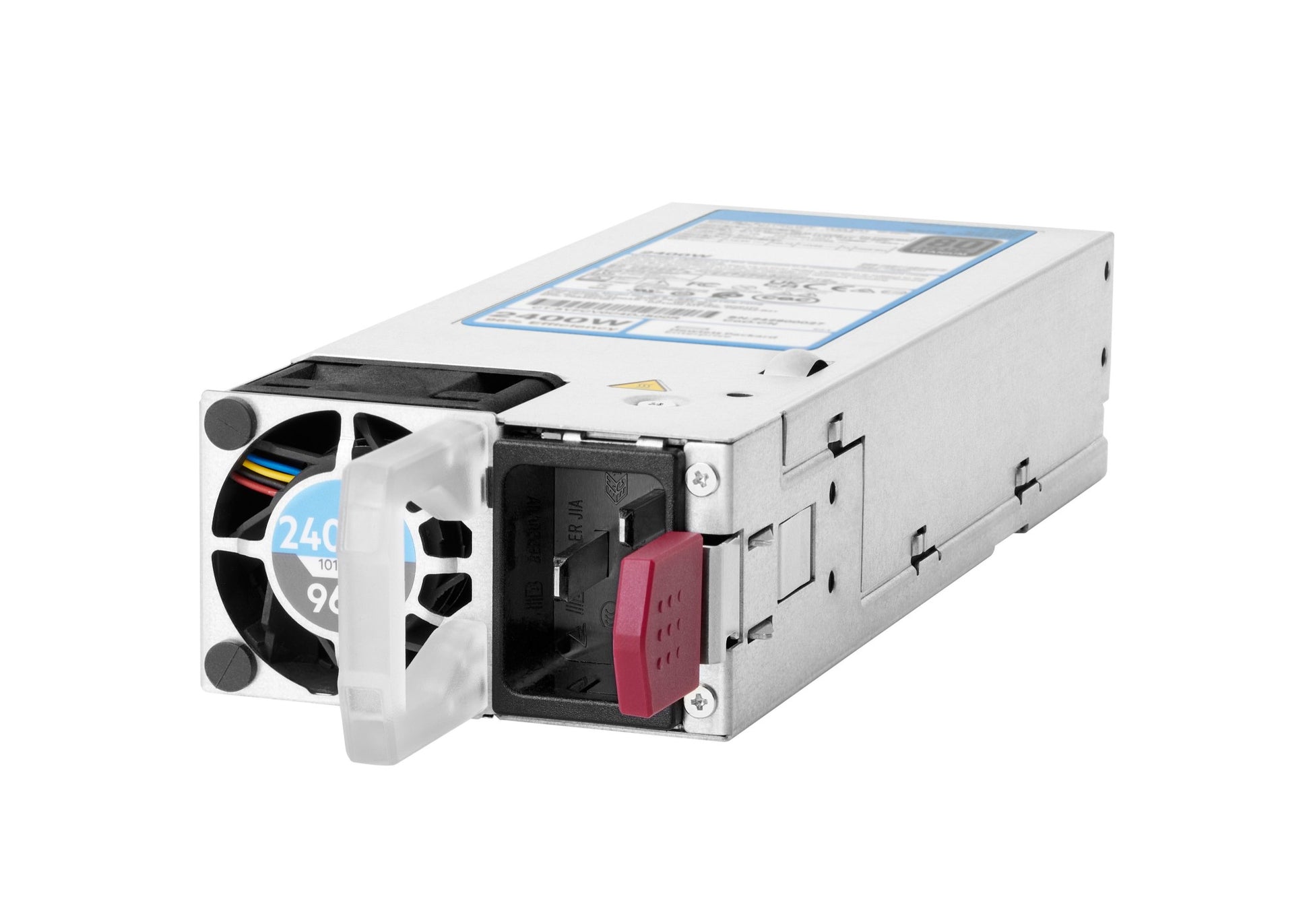

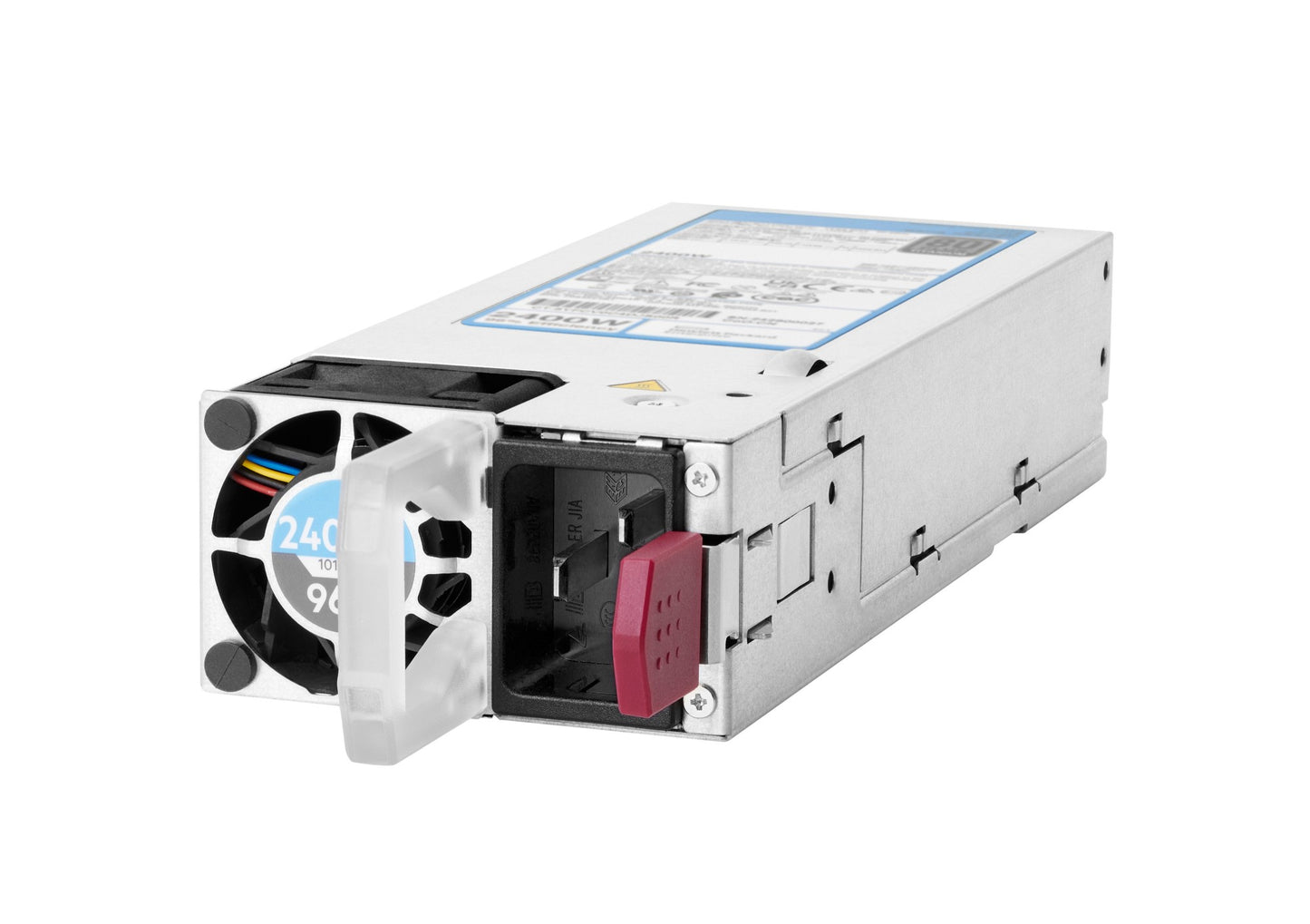

HPE P67252-B21 | M-CRPS 2400W Titanium Server Power Supply, C20
SKU:P67252-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This HPE M-CRPS 2400W Titanium hot-plug power supply is a redundant server power module from HPE's Open Compute Project compliant Modular Common Redundant Power Supply family. It is qualified for select ProLiant Gen12 servers such as the ProLiant DL380a Gen12, and suits data centre deployments with power-hungry workloads including AI and ML.
The module delivers 2400W on 200-240V AC high-line input and up to 1200W on 100-127V low-line input. It also supports 277V AC and 380V DC input. It is 80 PLUS Titanium certified with 96% efficiency, uses a C20 inlet connector and is a wide form factor module measuring 73.5 mm wide, 185 mm deep and 40 mm high, with an active internal fan.
The design is tool-less and hot-plug, so a module can be replaced without taking the server offline when running a redundant configuration. Status is reported through an illuminated handle, with remote management available through HPE iLO and the RESTful API. The spare part number is P68454-001.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 96% efficiency with 80 PLUS Titanium certification, meeting EU Lot 9 (Commission Regulation 2019/424) efficiency requirements
- Open Compute Project compliant design that installs, replaces and manages without retraining
- Tool-less hot-plug access for easier serviceability
- Server status reporting through an illuminated handle, with remote management via HPE iLO and RESTful API
- Built-in overvoltage, under voltage, overcurrent, overtemperature and short circuit protection
- Accepts both low-line (100-127V) and high-line (200-240V) AC input
- Supports ProLiant Gen12 servers, simplifying spares strategy
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Output power: 2400W on 200-240V AC high-line input
- Low-line output: up to 1200W on 100-127V AC input
- Additional input support: 277V AC and 380V DC
- Efficiency: 96%
- 80 PLUS certification: Titanium
- Form factor: Wide (73.5 mm) hot-plug plug-in module
- Input connector: C20
- Width: 73.5 mm
- Depth: 185 mm
- Height: 40 mm
- Weight: 1.38 kg
- Colour: Silver
- Cooling: Active (internal fan)
- Compatible servers: select ProLiant Gen12, including DL380a Gen12
- Protection: overvoltage, under voltage, overcurrent, overtemperature, short circuit
- Spare part number: P68454-001
FAQs
Q: What output does it deliver on different input voltages?
A: It delivers up to 2400W on 200-240V AC high-line input and up to 1200W on 100-127V AC low-line input. It also supports 277V AC and 380V DC input.
Q: Which servers is it qualified for?
A: It is qualified for select HPE ProLiant Gen12 servers, for example the ProLiant DL380a Gen12. Confirm that 2400W is the right size for your specific server configuration.
Q: What inlet connector does it use?
A: It uses a C20 inlet connector, so the power cord or PDU outlet needs to suit C20.
Q: Can it be hot-swapped?
A: Yes. It is a hot-plug, tool-less module designed for redundant configurations, so a module can be replaced while the server keeps running on the other supply.
Q: How does it differ from other M-CRPS power supplies?
A: This SKU is the 2400W, 80 PLUS Titanium, wide 73.5 mm module with a C20 inlet. Other M-CRPS options differ in wattage, efficiency rating and width.
