HPE

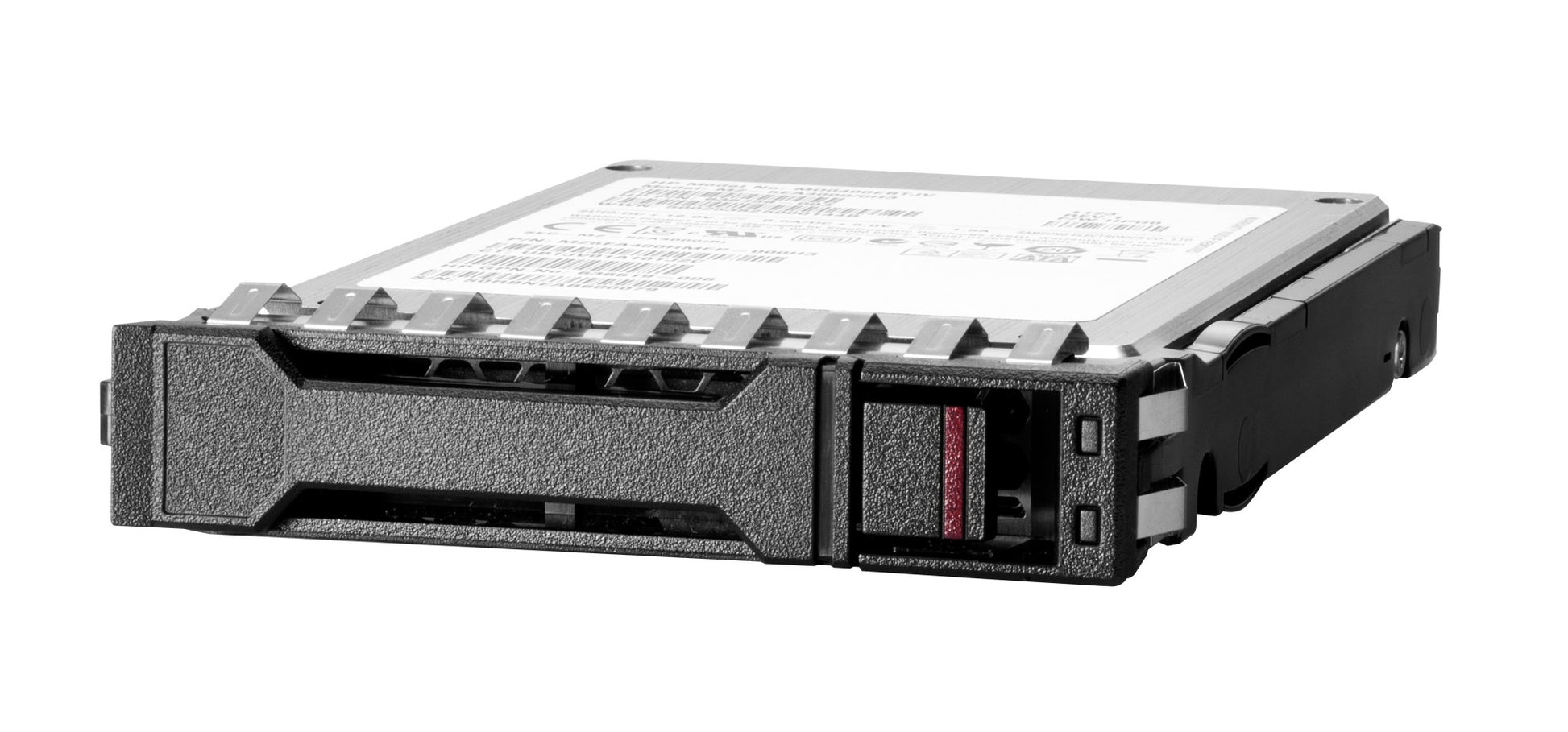

HPE P64999-B21 | 800GB NVMe Gen4 Mixed Use U.3 SSD, SFF BC, Multi Vendor

SKU:P64999-B21

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 800GB NVMe Gen4 SSD from the HPE Enterprise SSD Mainstream Performance range is a mixed use drive in a 2.5-inch SFF basic carrier with a U.3 Static V2 interface. It is built for HPE ProLiant and Compute servers running mixed read and write, I/O-intensive workloads, and it suits upgrades from SATA SSDs.

The drive uses TLC NAND over a single-port PCIe Gen4 interface and is rated at 3.0 DWPD, or 4,380 TB of lifetime writes. Maximum sequential throughput is 6,200 MiB/s read and 1,383 MiB/s write. Random read and write IOPS at 4KiB, queue depth 16, are 189,142 and 158,900, with average latency of 72 microseconds for reads and 16 microseconds for writes at queue depth 1. Power draw is 5.00 W at idle and up to 13.00 W at maximum. The drive is hot-plug and has a 15 mm height.

It is a multi vendor SKU, so drives supplied under this part number may use NAND and controllers from different vendors, with a homogeneous set per order. It is intended for HPE servers with U.3 NVMe-capable SFF drive bays, Gen10 Plus and Gen11. Check the server QuickSpecs for the supported backplane and controller.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- PCIe Gen4 bandwidth for mixed use workloads that need strong IOPS per watt
- Balanced read and write performance with 3 DWPD endurance
- Upgrade path from SATA SSDs
- Hot-plug basic carrier for HPE server drive bays
- Single-port TLC NAND design
- Multi vendor SKU with a homogeneous drive set per order

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Capacity: 800 GB
- Workload category: Mixed Use (MU)
- Interface: NVMe PCIe Gen4, U.3 Static V2
- Form factor: SFF 2.5in
- Carrier: Basic Carrier (BC)
- Height: 15 mm
- Hot plug: Yes
- NAND type: TLC
- Port: Single
- Multi-vendor SKU: Yes
- Endurance: 3.0 DWPD
- Lifetime writes: 4,380 TB
- Max sequential read: 6,200 MiB/s
- Max sequential write: 1,383 MiB/s
- Random read IOPS (4KiB, Q=16): 189,142
- Random write IOPS (4KiB, Q=16): 158,900
- Random read latency (4KiB, Q1): 72 uSec
- Random write latency (4KiB, Q1): 16 uSec
- Power idle: 5.00 W
- Power maximum: 13.00 W
- Supported server generations: Gen10 Plus, Gen11

FAQs

Q: Which servers is this SSD designed for?
A: It is designed for HPE ProLiant and Compute servers with U.3 NVMe-capable SFF drive bays, Gen10 Plus and Gen11. Check the server QuickSpecs for the supported drive backplane and controller.

Q: What does Multi Vendor mean for this SKU?
A: Drives supplied under this part number may use NAND and controllers from different vendors. Each order contains a homogeneous set of drives.

Q: What workloads is the mixed use rating suited to?
A: Mixed use drives balance read and write performance and endurance, at 3.0 DWPD here. They suit data-intensive, I/O-heavy server workloads and upgrades from SATA SSDs.

Q: How much power does the drive draw?
A: It draws 5.00 W at idle and up to 13.00 W at maximum, supplied from the server drive bay.

Q: Does this part number work in other HPE server lines?
A: The -B21 suffix may be replaced by -H21 or -K21 for different server family lines. Check the QuickSpecs for your server to confirm the correct variant.
