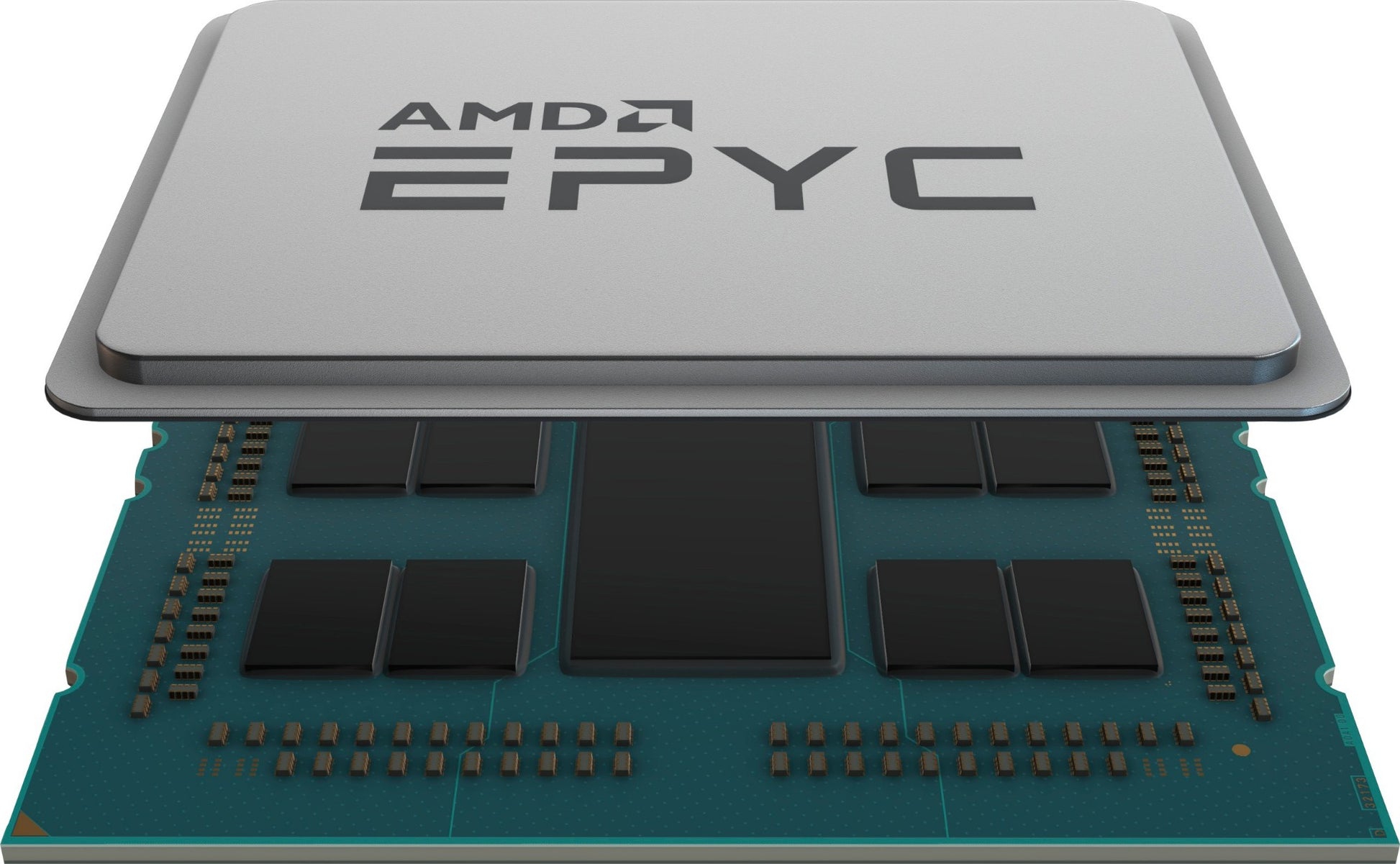

HPE P53704-B21 | EPYC 9354P 32-Core 3.25GHz 280W Server CPU, 1P Only

SKU:P53704-B21

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The AMD EPYC 9354P is a 32-core, 64-thread processor from the 4th Gen EPYC 9004 Series, supplied as an HPE option kit. It is built for single-socket enterprise servers such as the HPE ProLiant DL325 Gen11, and suits ERM, SCM and CRM applications, value data management, VDI and VM-dense virtualisation.

The processor runs at a 3.25GHz base clock with boost up to 3.8GHz and 256MB of L3 cache. It has a default TDP of 280W, configurable between 240W and 300W. On the SP5 socket it provides 12 channels of DDR5 memory at up to 4800 MT/s, delivering 460.8GB/s of per-socket memory bandwidth, along with PCIe 5.0 with 128 lanes. The P suffix means it is a single-socket (1P) part only.

It is listed as a Core Option processor in the HPE ProLiant DL325 Gen11 QuickSpecs. It needs an SP5-socket, single-socket platform with DDR5-4800 memory, and the server's power supply and heatsink must support a 280W CPU.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- AMD Infinity Guard security technologies
- AMD Infinity Architecture
- Configurable TDP of 240W to 300W to suit platform power and cooling
- 12-channel DDR5 memory with 460.8GB/s per-socket bandwidth
- PCIe 5.0 with 128 lanes for high-speed storage and network adapters
- Workload affinity for ERM, SCM and CRM applications, value data management, VDI and VM density

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Processor: AMD EPYC 9354P
- Family: EPYC 9004 Series (4th Gen)
- Cores: 32
- Threads: 64
- Base clock: 3.25GHz
- Max boost clock: up to 3.8GHz
- All-core boost speed: 3.75GHz
- L3 cache: 256MB
- Default TDP: 280W
- Configurable TDP (cTDP): 240W to 300W
- Socket: SP5
- Socket count: 1P only
- Memory type: DDR5
- Memory channels: 12
- Memory speed: up to 4800 MT/s
- Per-socket memory bandwidth: 460.8GB/s
- PCI Express: PCIe 5.0 x128
- Maximum memory (HPE ProLiant DL325 Gen11): 3TB
- Supported technologies: AMD Infinity Guard, AMD Infinity Architecture

FAQs

Q: Can this CPU be used in a dual-socket server?
A: No. The P suffix on the EPYC 9354P means it is a single-socket (1P) part only and cannot be used in dual-socket configurations.

Q: Which HPE server is it listed for?
A: It is listed as a Core Option processor in the HPE ProLiant DL325 Gen11 QuickSpecs. It requires an SP5-socket, single-socket platform.

Q: What memory does it support?
A: It supports 12 channels of DDR5 memory at up to 4800 MT/s, giving 460.8GB/s of per-socket memory bandwidth.

Q: What power and cooling does it need?
A: It has a default TDP of 280W, configurable from 240W to 300W. The server's power supply and heatsink must support a 280W CPU.

Q: How does it differ from other EPYC 9004 processors?
A: This model is the 32-core, 3.25GHz, 280W, 1P-only variant (9354P), with 256MB of L3 cache.
