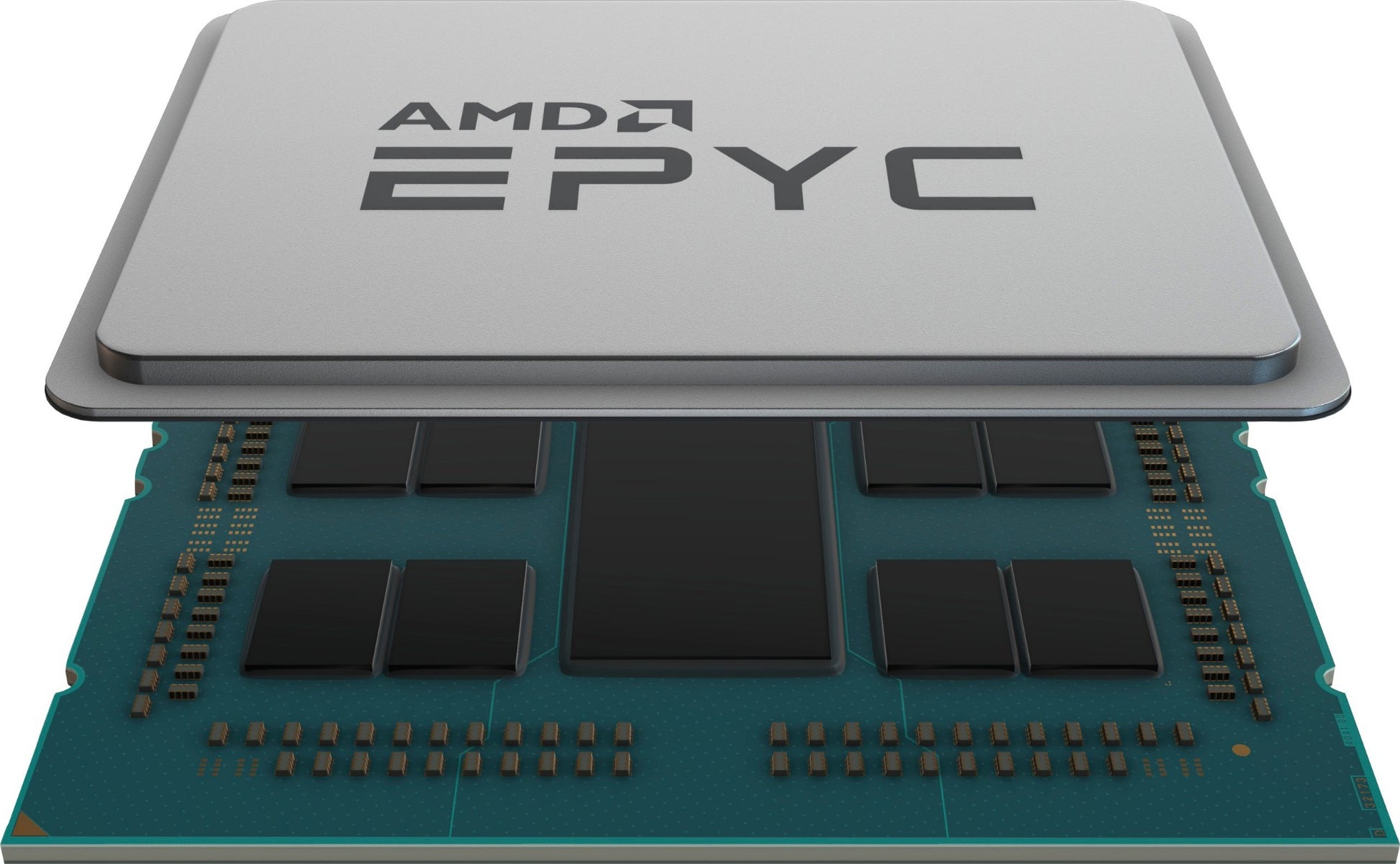

HPE P53699-B21 | EPYC 9534 64-Core 2.45GHz Processor, 280W TDP, SP5
SKU:P53699-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 4th Gen AMD EPYC 9004 Series processor is supplied in HPE option-kit form for SP5-socket HPE ProLiant Gen11 servers. It suits enterprise, cloud and data-centre workloads such as analytics, VDI, VM density, CAE, ERP, SCM and CRM applications and high-capacity data management.
The EPYC 9534 has 64 cores and 128 threads with a 2.45 GHz base clock, up to 3.7 GHz max boost and a 3.55 GHz all-core boost speed. It carries 256 MB of L3 cache and a default TDP of 280 W, configurable from 240 to 300 W. Memory support is 12-channel DDR5 at up to 4800 MT/s, giving 460.8 GB/s of bandwidth per socket, and PCIe 5.0 provides 128 lanes. It supports 1P and 2P configurations.
It is intended for HPE ProLiant Gen11 servers with SP5 sockets, including the DL365 Gen11. In a 2P configuration both processors must be the same model. Check the QuickSpecs for the specific server before ordering.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- AMD Infinity Guard security features
- AMD Infinity Architecture
- 12-channel DDR5-4800 memory with 460.8 GB/s per-socket bandwidth
- PCIe 5.0 with 128 lanes for high-speed storage and network adapters
- Configurable TDP of 240 to 300 W to suit server power and cooling limits
- Supports 1P and 2P server configurations
- Suited to analytics, VDI, VM density, CAE and database workloads
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Processor: AMD EPYC 9534
- Family: EPYC
- Series: EPYC 9004 Series (4th Gen, Genoa)
- Cores: 64
- Threads: 128
- Base clock: 2.45 GHz
- Max boost clock: up to 3.7 GHz
- All-core boost speed: 3.55 GHz
- L3 cache: 256 MB
- Default TDP: 280 W
- Configurable TDP (cTDP): 240-300 W
- Socket: SP5
- Socket count: 1P / 2P
- Memory type: DDR5
- Memory channels: 12
- Memory speed: up to 4800 MT/s
- Memory bandwidth: 460.8 GB/s per socket
- PCI Express: PCIe 5.0 x128
- Form factor: Servers
FAQs
Q: Which HPE servers does this processor fit?
A: It is designed for HPE ProLiant Gen11 servers with SP5 sockets, such as the DL365 Gen11. Check the QuickSpecs for your specific server model before ordering.
Q: Can I run two of these in a dual-socket server?
A: Yes, the EPYC 9534 supports 1P and 2P configurations. In a 2P server both processors must be the same model, so a second P53699-B21 is required.
Q: What memory does it support?
A: It supports 12-channel DDR5 memory at up to 4800 MT/s, giving 460.8 GB/s of bandwidth per socket.
Q: What is the TDP and can it be adjusted?
A: The default TDP is 280 W. The configurable TDP range is 240 to 300 W, allowing it to be tuned for the server's power and cooling design.
Q: Does the processor option kit include a heat sink or fans?
A: No. The HPE processor option kit does not include a heat sink or fans, so confirm your server has the correct cooling components for this 280 W processor.
