HPE P26269-B21 | Broadcom BCM57504 4-Port 10/25GbE SFP28 OCP 3.0 NIC
SKU:P26269-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

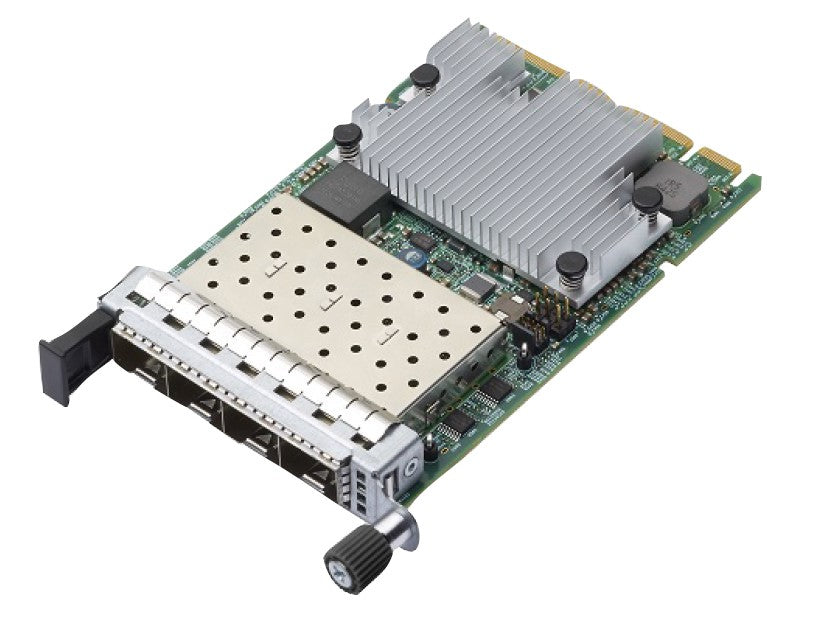

This Broadcom BCM57504 is a 4-port 10/25GbE SFP28 network adapter in the OCP 3.0 form factor, designed for HPE servers. It belongs to HPE's Gen10 Plus Ethernet adapter range and suits data centre server networking for hybrid cloud, mobile data and streaming video workloads, where more network bandwidth and lower latency are needed.
The adapter provides four SFP28 ports running at 10GbE or 25GbE over optical fibre, using the 25GBase-X network technology. It connects to the server through a PCIe 4.0 x16 host interface and is built on the Broadcom BCM57504 controller. I/O offloads, including RDMA and tunnelling, move work off the CPU and help reduce CPU utilisation.
It is compatible with HPE Gen10 Plus servers that provide an OCP 3.0 slot. The SFP28 ports accept SFP28 and SFP+ optics and DAC cables, so an existing 10G fibre or copper-DAC link can be reused while the server is moved towards 25G.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- I/O offloads including RDMA and tunnelling to reduce CPU utilisation
- Root-of-trust architecture that authenticates NIC firmware updates and verifies signed firmware
- Designed for bandwidth-hungry and latency-sensitive applications
- Four SFP28 ports supporting 10GbE and 25GbE speeds
- OCP 3.0 form factor for compatible HPE Gen10 Plus servers
- Part of the HPE ecosystem of servers, adapters, transceivers, cables and switches
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Controller: Broadcom BCM57504
- Ports: 4 x SFP28 (10/25GbE)
- Host interface: PCI Express 4.0 x16
- Form factor: OCP 3.0
- Network technology: 25GBase-X
- Media type: Optical fibre
- Maximum data transfer rate: 200 Gbit/s
- Device supported: Server
- Manufacturer part number: P26269-B21
- Product type: 25 Gigabit Ethernet card
FAQs
Q: Which servers is this adapter designed for?
A: It is designed for HPE Gen10 Plus servers that provide an OCP 3.0 slot. It is not a standard PCIe card, so confirm your server has an OCP 3.0 slot before ordering.
Q: Does it run at both 10GbE and 25GbE?
A: Yes. The four SFP28 ports support 10/25GbE, so you can connect at 10G or 25G depending on the optic or DAC cable fitted and the speed of the switch port.
Q: What optics and cables can I use in the SFP28 ports?
A: The SFP28 ports take SFP28 or SFP+ optics and DAC cables. Check the HPE QuickSpecs for the exact supported transceiver and cable part numbers for your server.
Q: Does it reduce CPU load on the server?
A: Yes. It supports I/O offloads including RDMA and tunnelling, which move network processing off the CPU and reduce CPU utilisation.
Q: How does it differ from other BCM57504 adapter variants?
A: This SKU is the 4-port 10/25GbE SFP28 adapter in the OCP 3.0 form factor. Other variants may use a different port count or a standard PCIe form factor.
