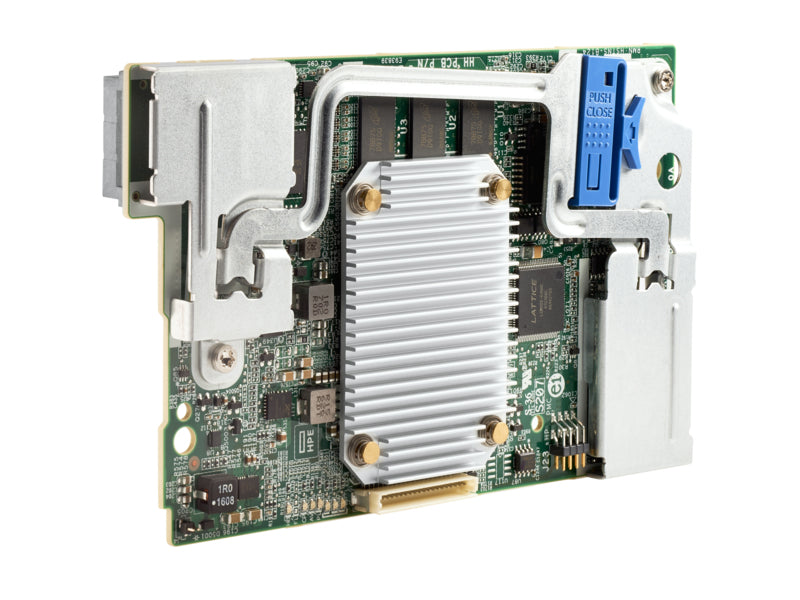

HPE 804367R-B21 | Smart Array SR Gen10 P204i-b 12G SAS RAID Controller, 1GB
SKU:804367R-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Smart Array P204i-b is a Type-b modular RAID controller from the HPE Smart Array SR Gen10 family. It is designed for HPE ProLiant BL460c Gen10 server blades running in BladeSystem enclosures, giving blade servers hardware RAID and direct drive access from a single controller.
It provides 12Gb/s SAS and 6Gb/s SATA across four internal lanes on one x4 internal port, connected to the host over PCIe 3.0 x8. A 1GB flash-backed write cache supports write performance and data protection. RAID 0, 1, 5, 6, 10 and 1 ADM are supported, with up to 64 logical units. Mixed Mode lets RAID logic drives and HBA pass-through drives run on the same controller at once, and SAS and SATA drives can be combined. Legacy and UEFI boot are supported. No licence is needed for base operation. Data-at-rest encryption is available through the optional Smart Array SR Secure Encryption licence.
The flash-backed write cache requires the HPE 12W Smart Storage Battery for BladeSystem (P01363-B21). It works with Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Linux, Citrix XenServer and VMware vSphere, and is VMware Virtual SAN certified.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Mixed Mode runs RAID logic drives and HBA physical drives at the same time
- Mix and match SAS and SATA drives on one controller
- 1GB flash-backed write cache for write performance and data protection
- Data-at-rest encryption on any drive with the optional Smart Array SR Secure Encryption licence
- VMware Virtual SAN certified
- Legacy and UEFI boot support
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: Smart Array P204i-b SR Gen10
- Device type: RAID storage controller, plug-in card
- Form factor: Type-b modular controller
- Host bus: PCIe 3.0 x8
- Interface: SAS 12Gb/s, SATA 6Gb/s
- Ports: Internal, 4 SAS/SATA lanes across 1 x4 port
- Channel quantity: 4
- Cache: 1GB Flash-Backed Write Cache (FBWC)
- RAID levels: 0, 1, 5, 6, 10, 1 ADM
- Maximum LUNs: 64
- Operating mode: Mixed Mode (RAID and HBA simultaneously)
- Boot: Legacy and UEFI
- Virtualisation: VMware Virtual SAN certified
- Compliance: FIPS 140-2 Level 1
- Encryption: HPE Smart Array SR Secure Encryption (optional licence)
- Supported servers: HPE ProLiant BL460c Gen10 Server Blade
- Required battery: HPE 12W Smart Storage Battery for BladeSystem (P01363-B21), sold separately
- Supported OS: Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Linux, Oracle Solaris, Citrix XenServer, VMware vSphere (ESXi), Windows Hyper-V Server
FAQs
Q: Does this controller need a licence?
A: No licence is required for base operation. Data-at-rest encryption needs the optional HPE Smart Array SR Secure Encryption licence.
Q: Which servers does it work with?
A: It is a Type-b modular controller for the HPE ProLiant BL460c Gen10 Server Blade.
Q: What does the flash-backed write cache need to operate?
A: The cache requires the HPE 12W Smart Storage Battery for BladeSystem (P01363-B21), which is sold separately. The controller itself is powered from the blade server.
Q: Can it run RAID and pass-through drives together?
A: Yes. Mixed Mode lets RAID logic drives and HBA physical drives operate on the same controller simultaneously.
Q: Which RAID levels does it support?
A: RAID 0, 1, 5, 6, 10 and 1 ADM are supported, with up to 64 logical units.
